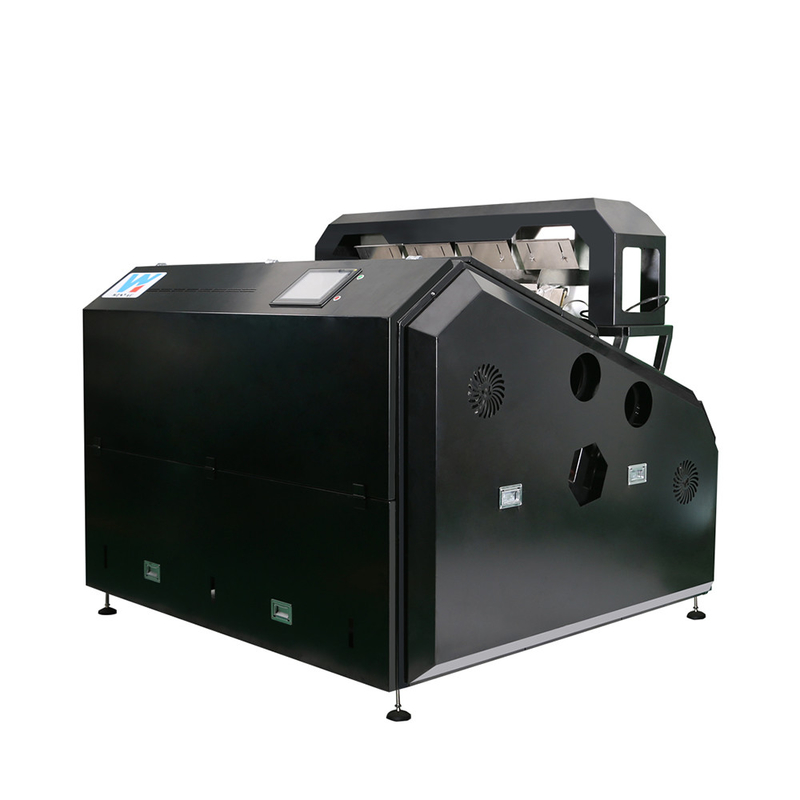

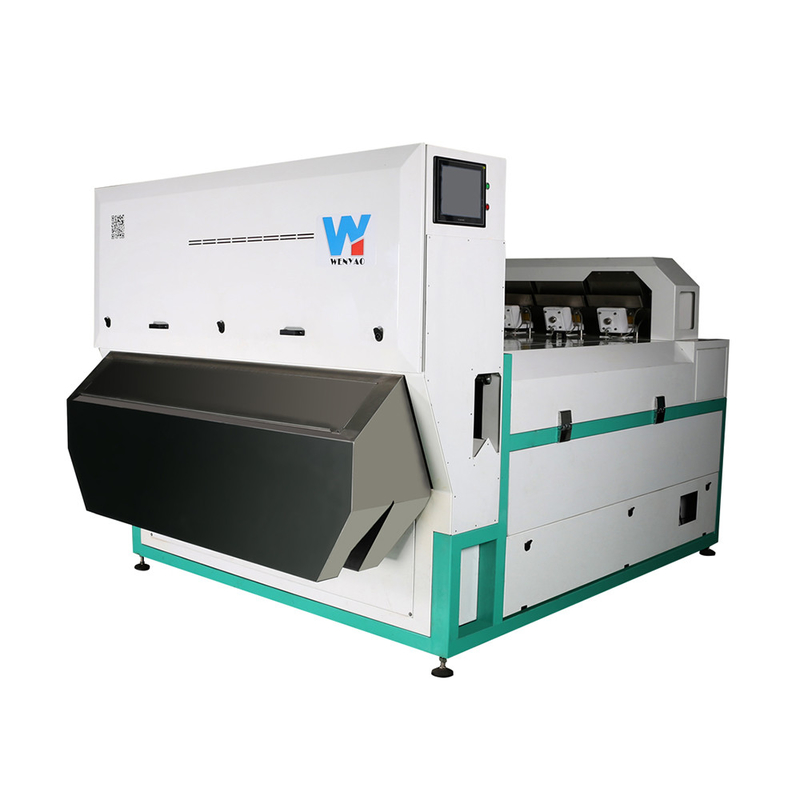

1 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators

1 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators

1 Conveyor Belt Ore Color Sorter

1 Conveyor Belt Mineral Sorting Machine

Toshiba Camera Quartz Sorting Machine

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE ISO9001

Model Number:

WYB4

Contact Us

Request A Quote
Product Details
Function:
To Remove The Impurities And Different Color Stones By The Colors
Sorting Accuracy(%):
≥99.00
Condition:
New
Filter:
SMC
Camera:
Toshiba
Warranty:
2 Years
Size:
3173*1914*1420mm
Voltage:
180-220V/50Hz/60Hz
Power:
4.5KW
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiated
Packaging Details
Plywood case package
Delivery Time
20 work days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Widely Used In Morocco 4 Vibrators 1 Conveyor Belt Mineral Separator Ore Color Sorter Machine Quartz Sorting Machine



Product Application


Food materials:
Such as Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney
bean,Chili,Red bean, others.

Plastic materials:
Such as Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic
flake, PP plastic scrap, Recycled plastic, others.

Mineral materials:
Such as Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.



Technical Parameters:



MODEL WYB4
Vibrators/Conveyor Belt 4/1
Throughput(t/h) 8000 kg/H
Sorting Aaccuracy ≥99.00%
Power 0.5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption 1300-2800L/Min
Weight 900 kg
Diamension(L*W*H) 3173*1914*1420mm



Features:

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.

►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►5400Pixel CCD image acquisition system with high speed chip.



Examples Of Color Sorting



Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. The following pictures are the color sorting performance of rice, soybean,wheat, peanuts and almond.If you want to sort other materials, please Contact our customer service, they will send you the corresponding pictures and videos.

1 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 0







































The Catalogue Of Wenyao Color Sorter Machine





1 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 11 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 21 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 31 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 4



1 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 51 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 61 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 7



1 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 81 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 9



1 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 101 Conveyor Belt Quartz Color Sorter Ore Color Sorter With 4 Vibrators 11





FAQ:



1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.

2. How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. what about the after sales service?

Yes, By videos or by remote control or local service or engineers could go abroad when required.
