Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYB1
Contact Us

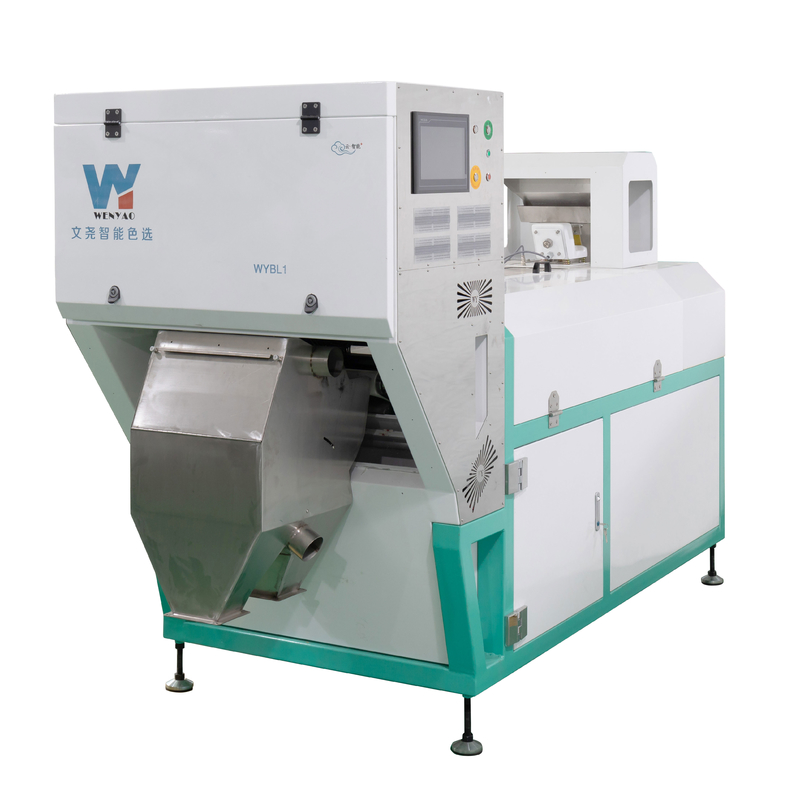

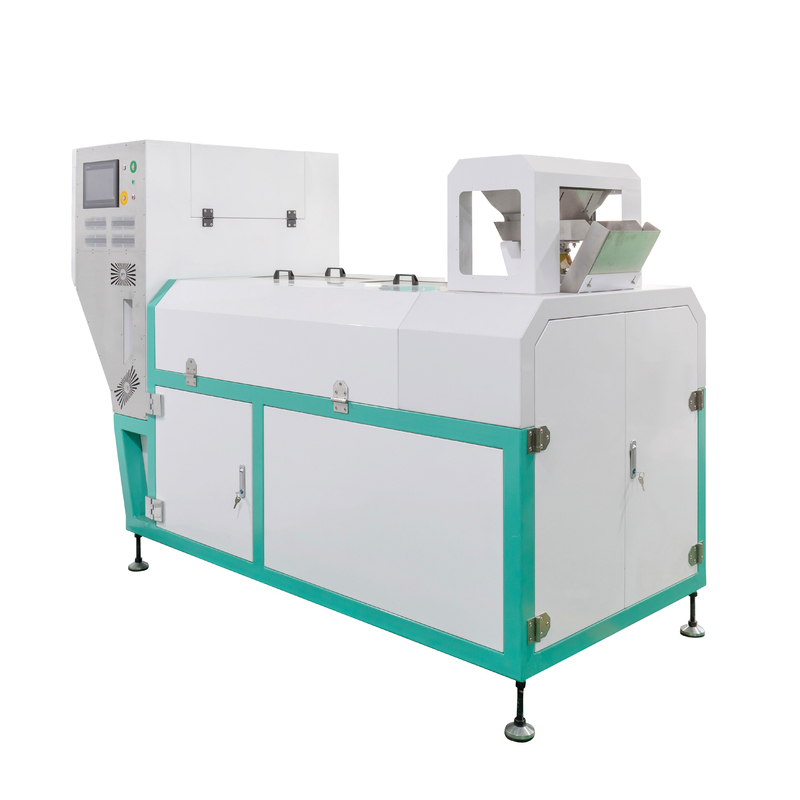

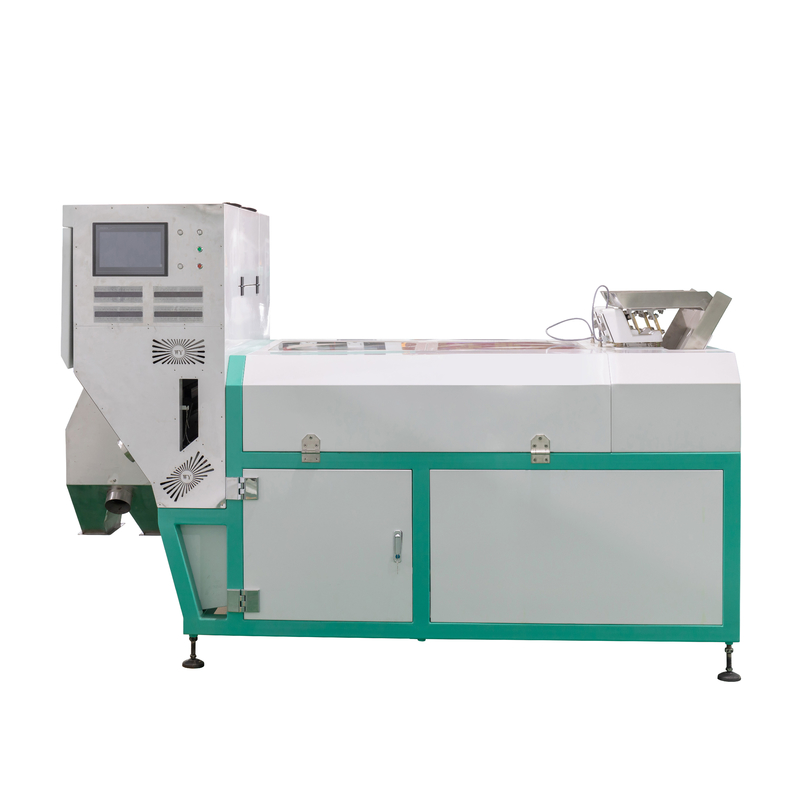

Mini Small Minerals/Ore/Sand/Powder color sorter machine
When color sorter is running , the materials in the hopper is uniformly distributed into each chute because of the action of vibrator.while the materials dropping ,CCD sensor is starting.If the cameras catach the unqualified materials or impurities,PLC will order the ejector to blow the bad goods into the hopper.
Technical Parameters:
| MODEL | WYB1 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.9% |
| Power | 1.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 2450*1010*1539mm |
Throughtput:Different impurity with different throughput.
color sorter working principle:
Features:
►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
Examples of mineral color sorting:
