Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS2-128
Contact Us
Video
Video

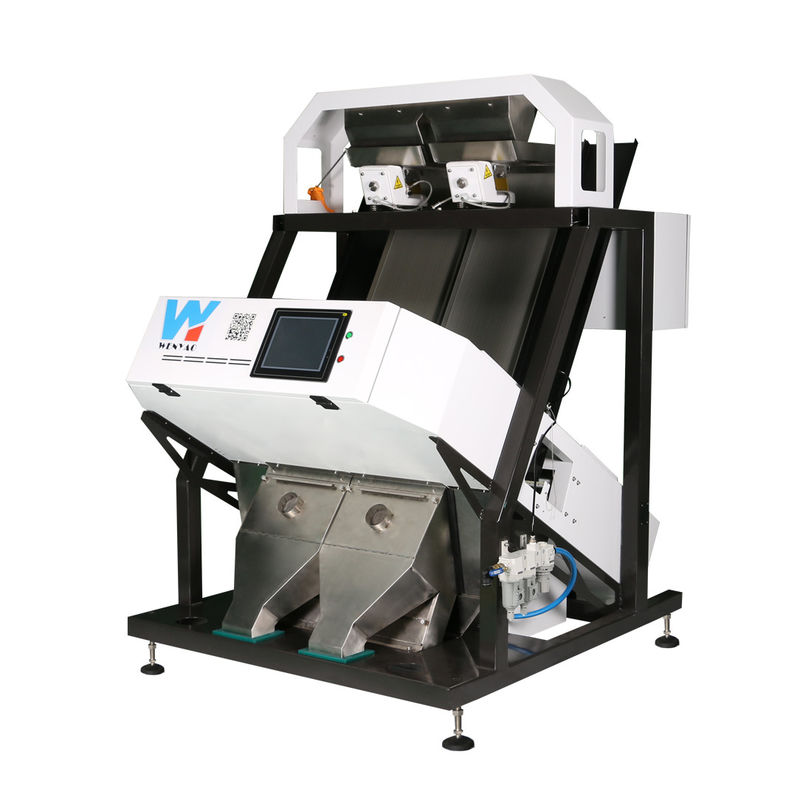

Big Capacity Optical Grain Color Sorter For Wheat Grader Separator Or Cleaning Machine With Best Price 512 Channels
Why Choose Wenyao
1. Over 14 years experiences.focus on sorter machine.
2. After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and w.
3. We have service station, cooperate reseller in more than 40 countries.
4. Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
How to get the correct size and price for wenyao color sorting machine?
Please contact us according to the following questions if you need color sorter prices:
Step 1. What kinds of the material are you planning to sort processing?
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Step 2. How much capacity(output) to sort processing for the raw materials per hour?
Such as: 200KGS, 500KGS, 1000KGS, 2000KGS and son on.
Step 3. In order to know the impurity rate of the raw materials that are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture
2. Accepted material picture
3. Rejected material picture
Main features:
1. Excellent sorting persormance: Advanced image acquisition system + intelligent image processing algorithm + high quality ejection system=excellent output and rejection;
2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5340 pixel CCD high speed linear scan imaging sensor also first-class tailored camera lens for colorsorting with a precision identifying tiny defects till 0.01m2;
3. Super ease operation system: Simple optical system design and accurate in time auto calibration system plus simplified GUI design help reduce complicacies of machine commissioning and running, easy operation and maintenance secured;
4. Customized image processing algorithm: Intelligence algorithm integrating image color difference and defect size difference;
5. Long-life software upgrading for free;
6. OEM service welcomed.
Technical Parameters:
| MODEL | WYCS2-128 |
| Chutes/Channels | 2/128 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.1kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <1.2M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 1250*1535*1832mm |
Examples of color sorting:
FAQ
1. What can you provide if we buy the machine?
We will test here first(it is helpful if you can send us your material), after testing, we will send you a video to tech but if still have problem after you received it, we will send one engineer but it is paid.
2. How long about the guarantee period?
Two year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required. but the cost need to be covered by Customer.
5. How to calculate Installation personnel cost?
Normally we will finish the installation here and if customer have special request, we will send 1 Engineer to teach, but customer need to cover the cost, including round -trip transportation and accommodation .
