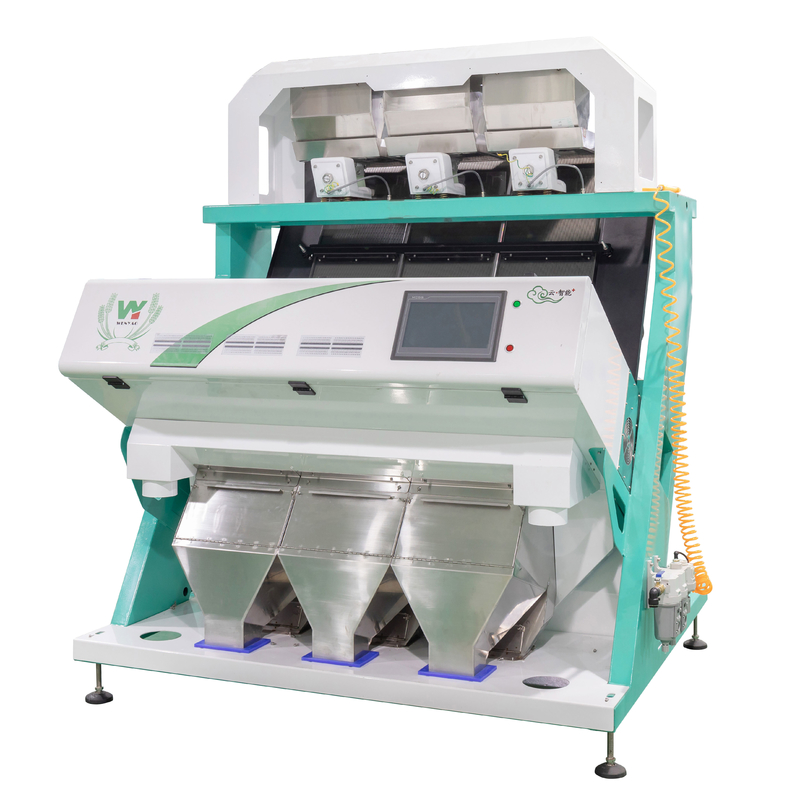

Grain Oat Color Sorting Machine For Barley Wheat

Grain Oat Color Sorting Machine For Barley Wheat

3 Chutes Grain Color Sorting Machine

Oat Color Sorting Machine

Barley Wheat Color Sorting Machine

Place of Origin:

Anhui China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS3-192

Contact Us

Request A Quote
Product Details
Function:
Color Sorting
Sorting Accuracy(%):
≥ 99.99%
Warranty:
2 Years
Condition:
2022 New
Color:
Customized Color
Camera:
Toshiba
Rejection Rate:
25:1
Air Pressure:
0.6-0.8
Whole Power:
1.6KW
Voltage:
220V/50Hz/60Hz
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood Box package Packing size(L*W*H):1800*1700*2100mm
Delivery Time
7-15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100PCS Per Month
Product Description

Low Price Grain Oat Color Sorting Machine for Barley Wheat popular in Russia



When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Technical Parameters:

MODEL WYCS3-192
Chutes/Channels 3/192
Throughput(t/h) 3-4tt/h
Sorting Aaccuracy ≥99.99%
Power 1.6kw
Power Voltage 180-240V/50Hz/60Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.4M3/Min
Weight 600kg
Diamension(L*W*H) 1620*1535*1832mm




Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc.





Color sorter Principle as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)

Grain Oat Color Sorting Machine For Barley Wheat 0





Examples of color sorting:



Grain Oat Color Sorting Machine For Barley Wheat 1Grain Oat Color Sorting Machine For Barley Wheat 2





Advantage:

A: Free direct the installation and operation of the equipments and train operators for customer.
B: Safe and reliable, efficient and energy saving, easy operating.
C: In time with English operating instruction program.

D: Timely, professionally





Packing And Delivery :



Grain Oat Color Sorting Machine For Barley Wheat 3
