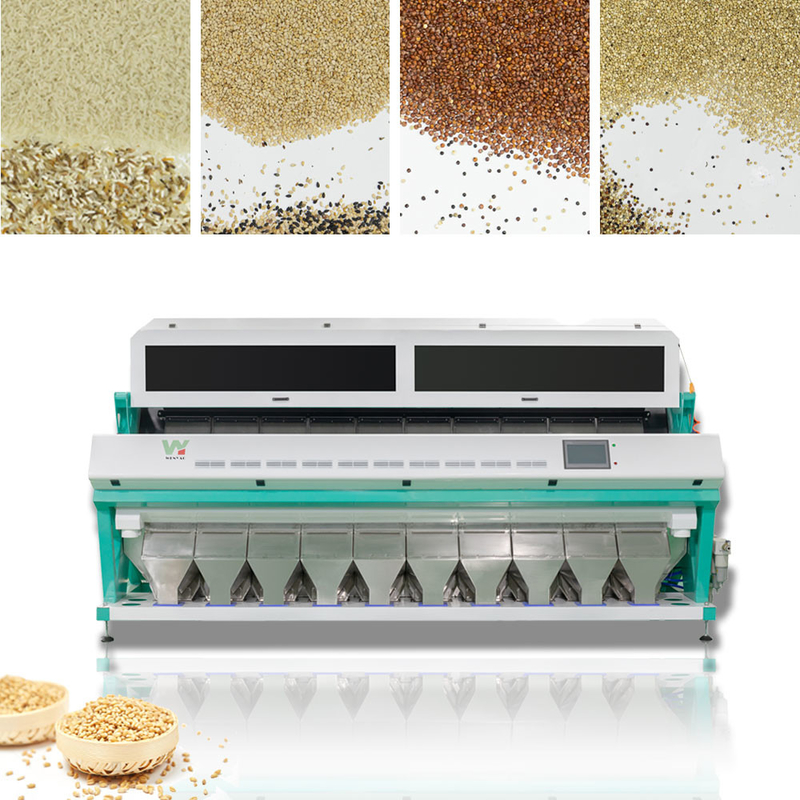

Professional Self-feeding Intelligent Quinoa Wheat Color Sorter Machine
Wheat color sorter working principle:
Color Sorter Machine Working Flow
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Coriander Seeds Color Sorter Technical Parameters:
| MODEL |
WYCS8-512 |
| Chutes/Channels |
8/512 |
| Throughput(t/h) |
8-10t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
5kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<4M3/Min |
| Weight |
1500kg |
| Diamension(L*W*H) |
3025*1540*1852mm |
Throughtput:Different impurity with different throughput.
wheat color sorter Features:
.
►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
Examples of color sorting:
