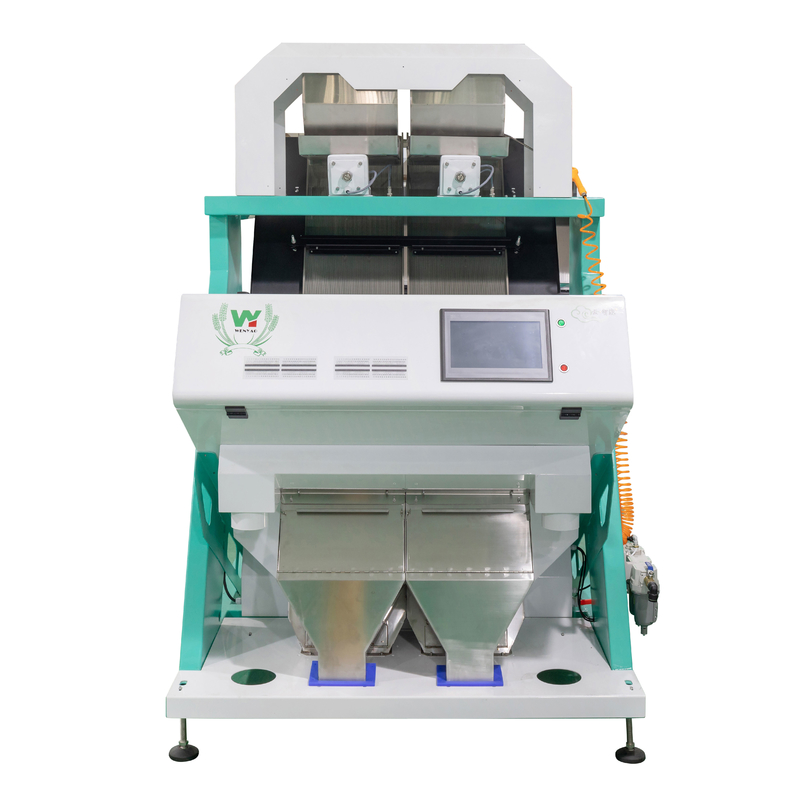

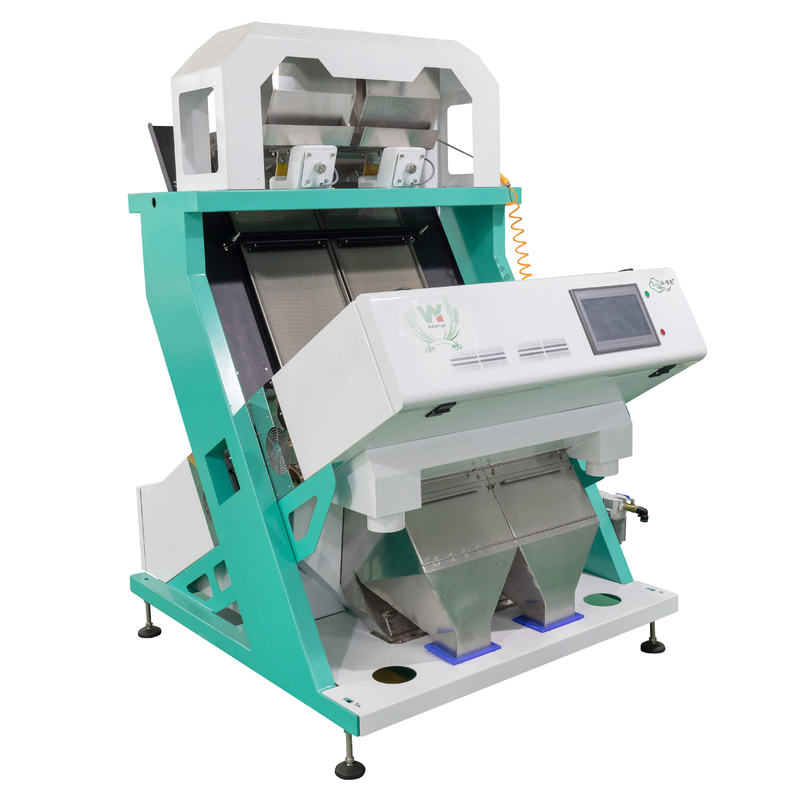

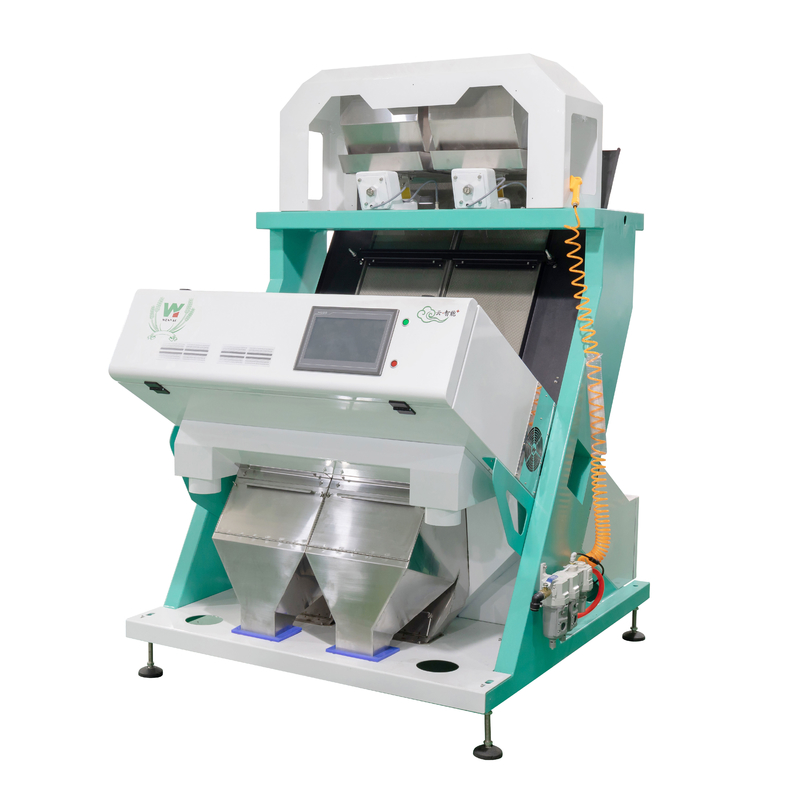

Cheap Price Automatic Optical Ccd Color Sorter Equipment For Grains Beans Rice
Color Sorter Function
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Photoelectric color sorter is a non-destructive sorting equipment used for quality inspection and grading of bulk materials. It is widely used in grain, food, pigment chemical industry and other industries. , all kinds of beans, all kinds of rice, ore, pepper, pepper, garlic, melon seeds, raisins, seeds, traditional Chinese medicine, dried shrimps, small shrimp, cloves, glass, metal, the same color rod and other malignant impurities and special materials sorting The effects are very significant.
Technical Parameters
| Model | WYCS1-64 | WYCS2-128 | WYCS3-192 | WYCS4-256 |
| Chute/Channel | 1/64 | 2/128 | 3/192 | 4/256 |
| Throughput(t/h) | 1 Ton /H | 0.6-2.5 Ton /H | 1-4 Ton /H | 1.4-5 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 0.75kw | 1.1kw | 1.6kw | 2.3kw |
| Power Voltage | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 280kg | 450kg | 600kg | 750kg |
| Diamension(L*W*H) | L780*W1527*H1543mm | L1250*W1535*H1832mm | L1620*W1535*H1832mm | L1855*W1540*H1852mm |
| Model | WYCS5-320 | WYCS6-384 | WYCS7-448 | WYCS8-512 |
| Chute/Channel | 5/320 | 6/384 | 7/448 | 8/512 |
| Throughput(t/h) | 2-6 Ton /H | 2.5-8 Ton /H | 3-10 Ton /H | 3.5-12 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 2.9kw | 3.1kw | 3.9kw | 5kw |
| Power Voltag | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 900kg | 110kg | 1350kg | 1500kg |
| Diamension(L*W*H) | L2244*W1540*H1852mm | L2595*W1540*H1852mm | L2905*W1540*H1852mm | L2905*W1540*H1852mm |
Advantages:
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Automatic computing and intelligent identification with high speed camera.
| |
|
|
|
|
|
Key Components
Customer Cases:
|
|
|
|
|
|
|
|
Related Products for Chosing:
FAQ
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?
Two year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer
should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local
transportation and security when the Engineer arrived.
