Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS1-64
Contact Us

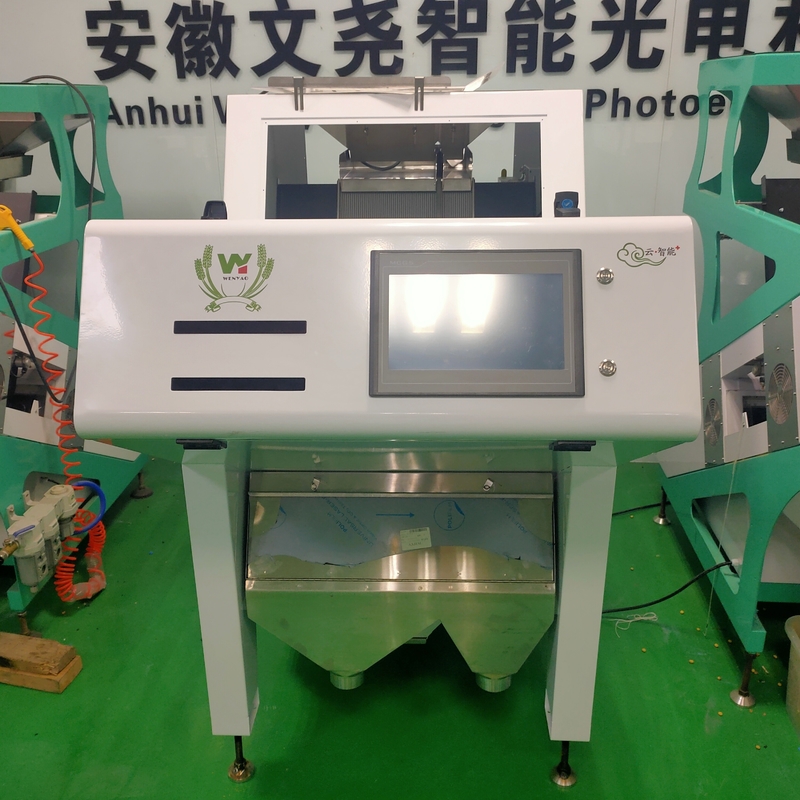

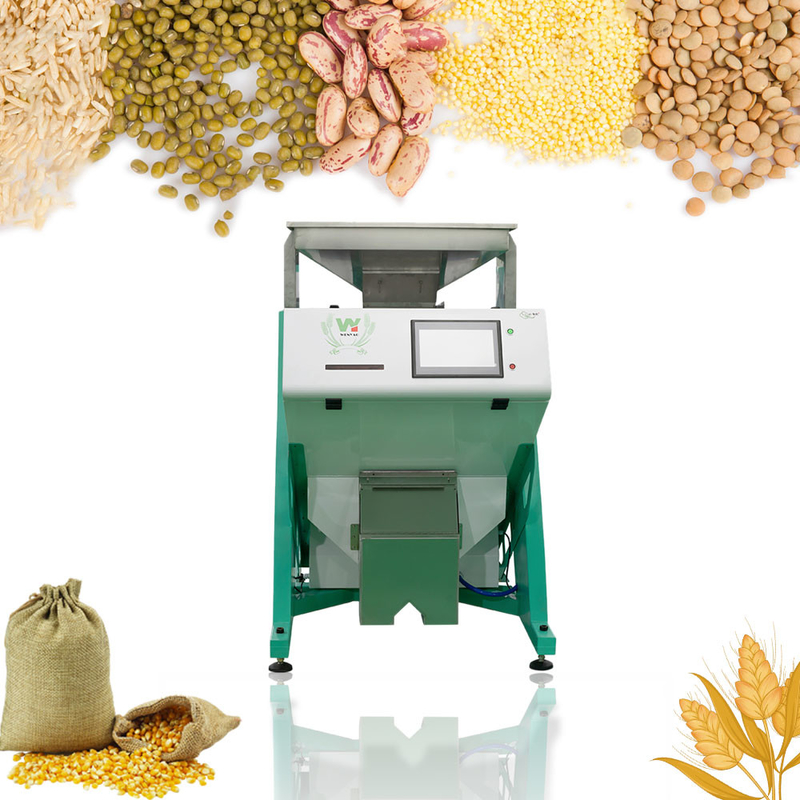

2022 New Arrival Factory Price Rice Grain Coffee Bean Color Sorter Machine Automatic Machinery
When color sorter machine is working, the materials in hopper is uniformly distributed into each chute by the vibrator. While the materials are dropping,the CCD signal is testing. If the cameras catch there are unqualified materials or impurities through colors in the mixed materials, the ejector will blow the defective goods into the hopper.So it wil reach to our aims.
Technical Parameters:
MODEL | WYCS1-64 |
Chutes/Channels | 1/64 |
Throughput(t/h) | 1 Ton /H |
Sorting Aaccuracy | ≥99.99% |
Power | 0.75kw |
Power Voltage | 180-240V/50Hz |
Air Source Pressure | 0.6-0.8Mpa |
Air Consumption | <0.6M3/Min |
Weight | 280kg |
Diamension(L*W*H) | 780*1527*1543mm |
►5400Pixel CCD image acquisition system with high speed chip.
►Automatic computing and intelligent identification with high speed camera.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
Examples Of Color Sorting
Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. The following pictures are the color sorting performance of rice, soybean,wheat, peanuts and almond.If you want to sort other materials, please Contact our customer service, they will send you the corresponding pictures and videos.
Product application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and frut:
Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish and shrimp
Examples of color sorting:
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
