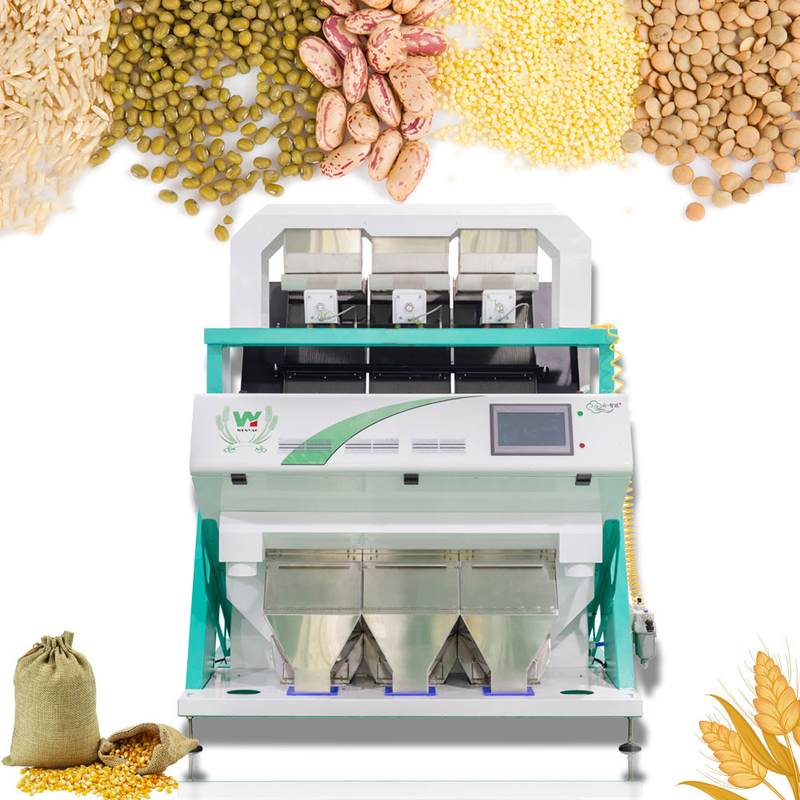

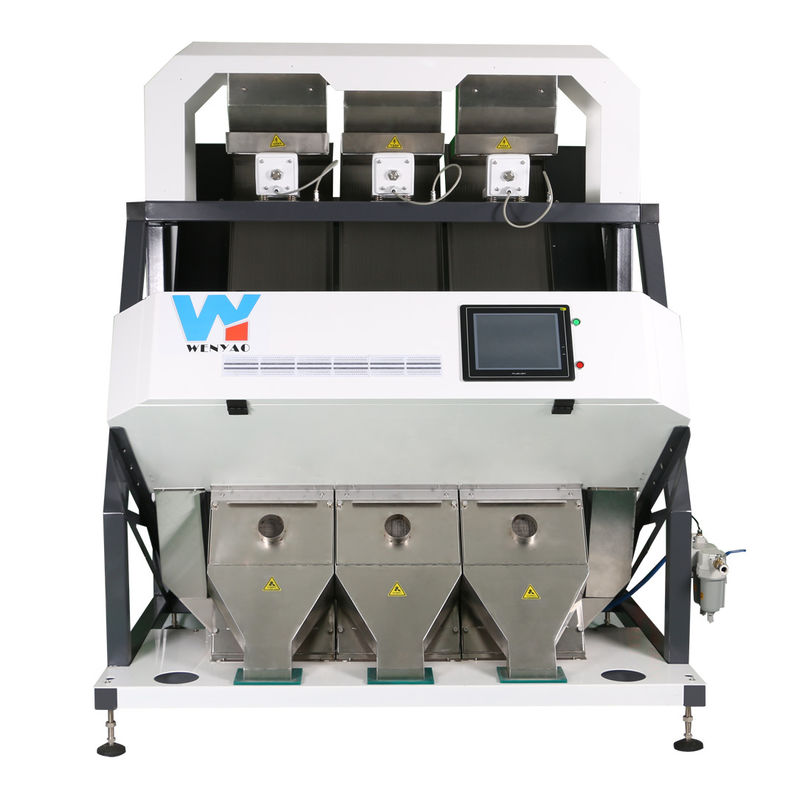

Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes

Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes

3 Chutes Multifunction Color Sorter

3 Chutes Multipurpose Sorting Equipment

Beans Multipurpose Sorting Equipment

Place of Origin:

Anhui,China

Brand Name:

WENYAO

Certification:

CE,ISO9001,SGS,TUV

Model Number:

WYCS3-192

Contact Us

Request A Quote
Product Details
Function:
Beans Color Sorting
Sorting Accuracy(%):
≥99.99
Condition:
2022 New
Color:
Customized Color
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Capacity:
1-4 T/H
Filter:
Japan CKD & SMC
CCD Camera:
Toshiba
Lamp Source:
LED Variable Light
Voltage:
220V/50Hz/60Hz
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package with Pe bag inside wrapped Packing size(L*W*H):1.77x1.54x2.10M
Delivery Time
7-15 Working Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 PCS Per Month
Product Description

beans color sorter seeds machine multipurpose sorting equipment with industrial camera 3 chutes from China Hefei



Wenyao Color Sorting Machine Function:

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 0

Color Sorter Machine Work Principle:



Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 1



PARTS DETAILS:





1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.

2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.

3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.

4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.

5. Humanization true color screen, visual effect is more clear, operation is more easier.

6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.



Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 2

Technical Parameters:

Model WYCS1-64 WYCS2-128 WYCS3-192
Chute/Channel 1/64 2/128 3/192
Throughput(t/h) 1 Ton /H 0.6-2.5 Ton /H 1-4 Ton /H
Sorting Aaccuracy ≥99.99% ≥99.99% ≥99.99%
Power 0.75kw 1.1kw 1.6kw
Power Voltage 180-240V/50Hz 180-240V/50Hz 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa 0.6-0.8Mpa 0.6-0.8Mpa
Air Consumption <0.6M3/Min <0.6M3/Min <0.6M3/Min
Weight 280kg 450kg 600kg
Diamension(L*W*H) 780*1527*1543mm 1250*1535*1832mm 1620*1535*1832mm

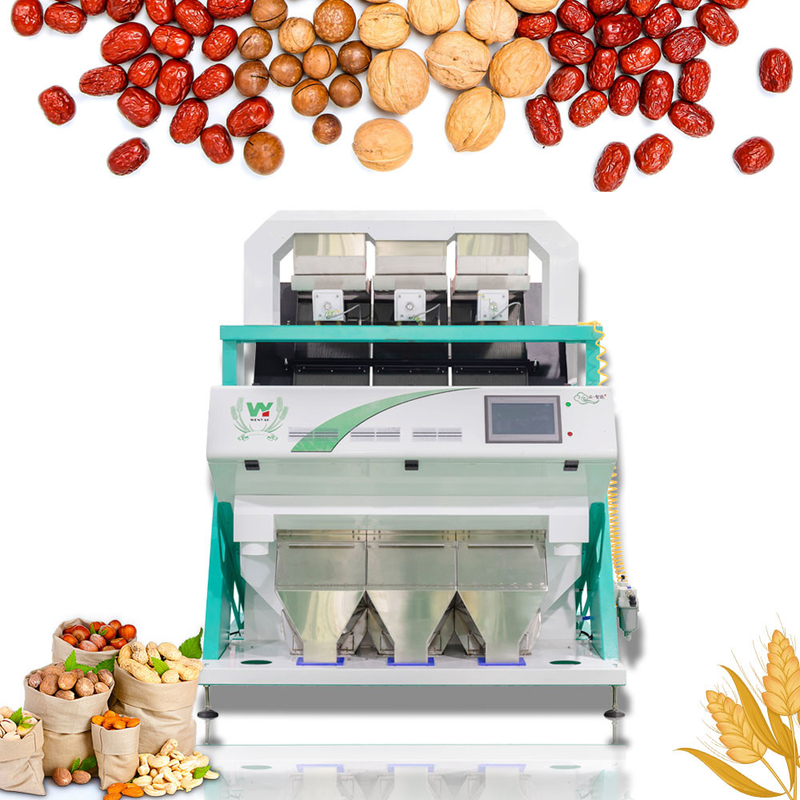

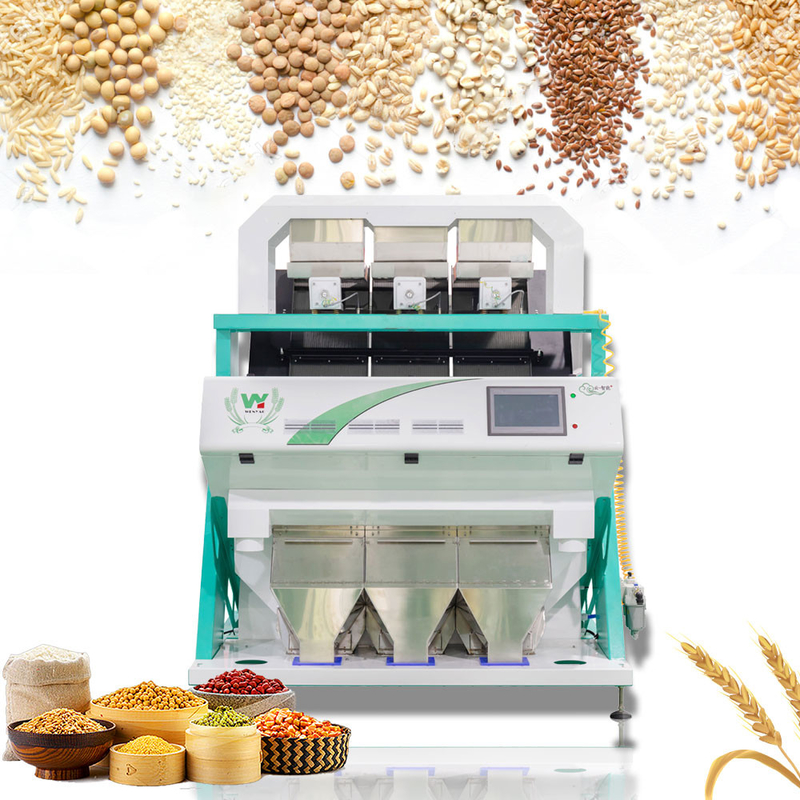

Examples of color sorting:





Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 3Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 4

Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 5

Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 6







Packing & Delivery:



Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 7



Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 8Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 9Beans Seeds Multipurpose Sorting Equipment With Industrial Camera 3 Chutes 10
