Place of Origin:
China Hefei
Brand Name:
WENYAO
Certification:
CE AND ISO9001
Model Number:
WYCS1-32
Contact Us

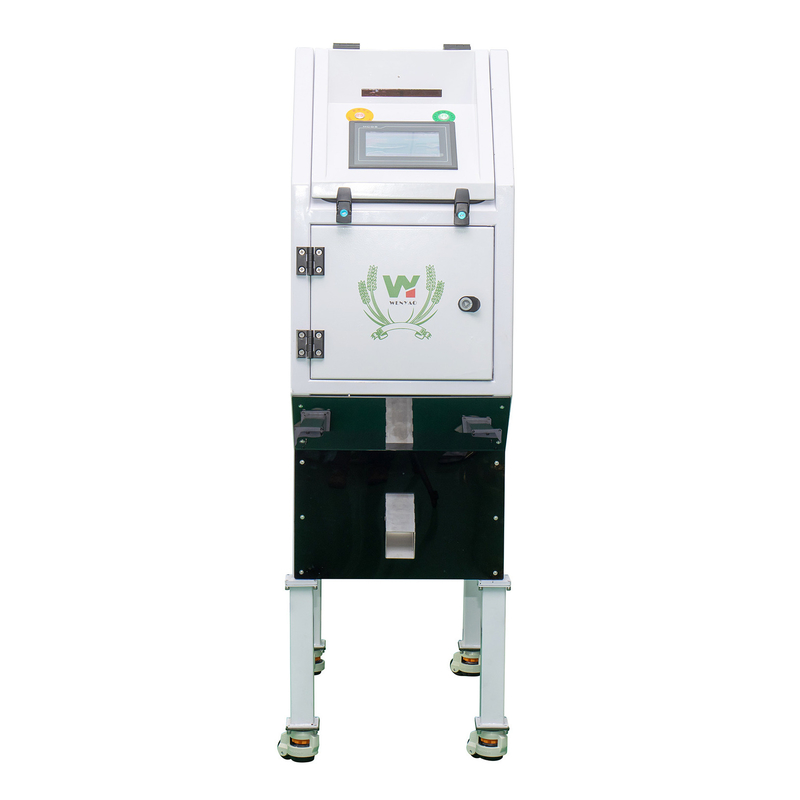

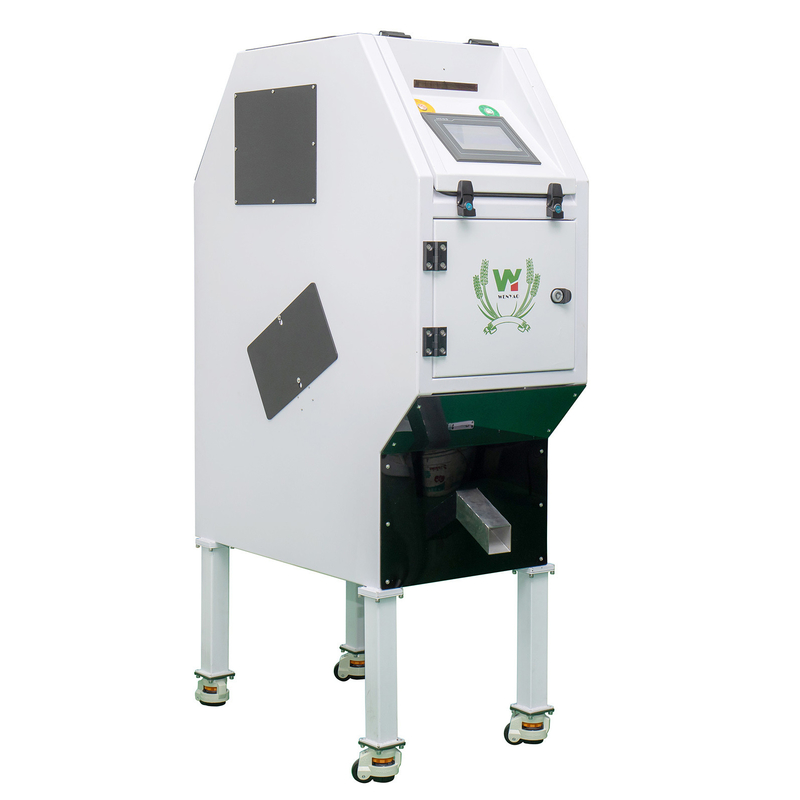

Mini Digital Electric Optical Color Sorter 99.99% Sorting Accuracy Blue Plastic Color Sorter Machine With CCD Camera
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber.
Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(kg/h) | 300kg-500kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <100-400L/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
2 Chutes Plastic Color Sorter Machine Features:
◉ Japanese lens, Toshiba sensors with power of 16 megapixels (5400 CCD) micro-color detection capability Cameras
◉ Germany's OSRAM lED
◉ American ALTRA Processor of Japanese SMC Pneumatic Systems
◉ 15-inch NEC monitors
◉ of Vision's production ejectors with lifetime guarantee
◉ equipped with dust absorption system
◉ equipped with artificial intelligence, adjusting the device with the help of AI
◉ scanning capability up to 30,000 times per second, leading to up to three times more performance than other sorters.
Persian Software
◉ software upgrade capability
◉ reducing energy consumption

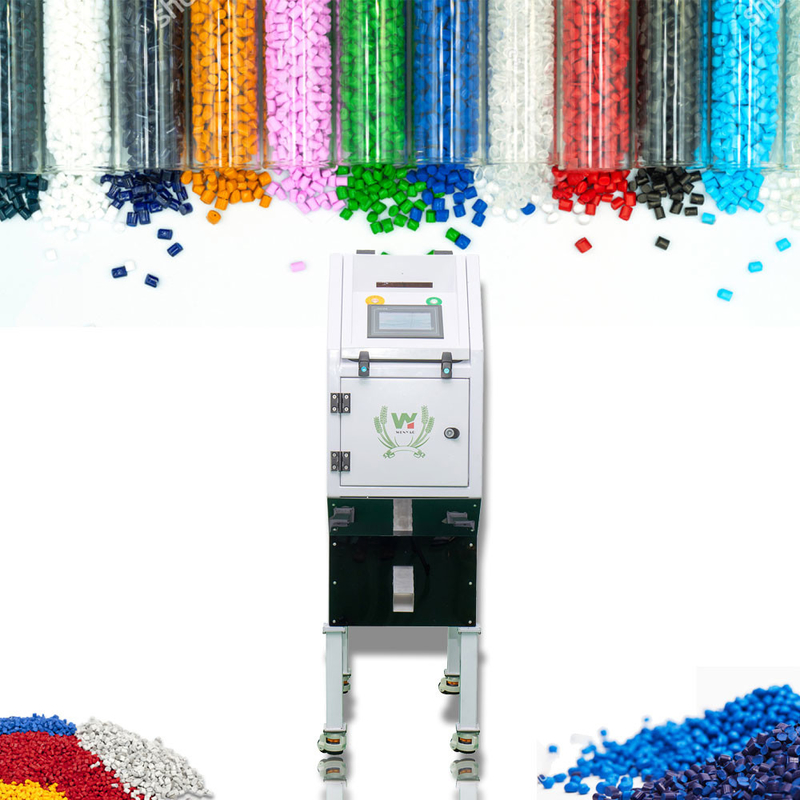

Examples of color sorting:
