Place of Origin:
China Hefei
Brand Name:
WENYAO
Certification:
CE AND ISO9001
Model Number:
WYCS1-32
Contact Us

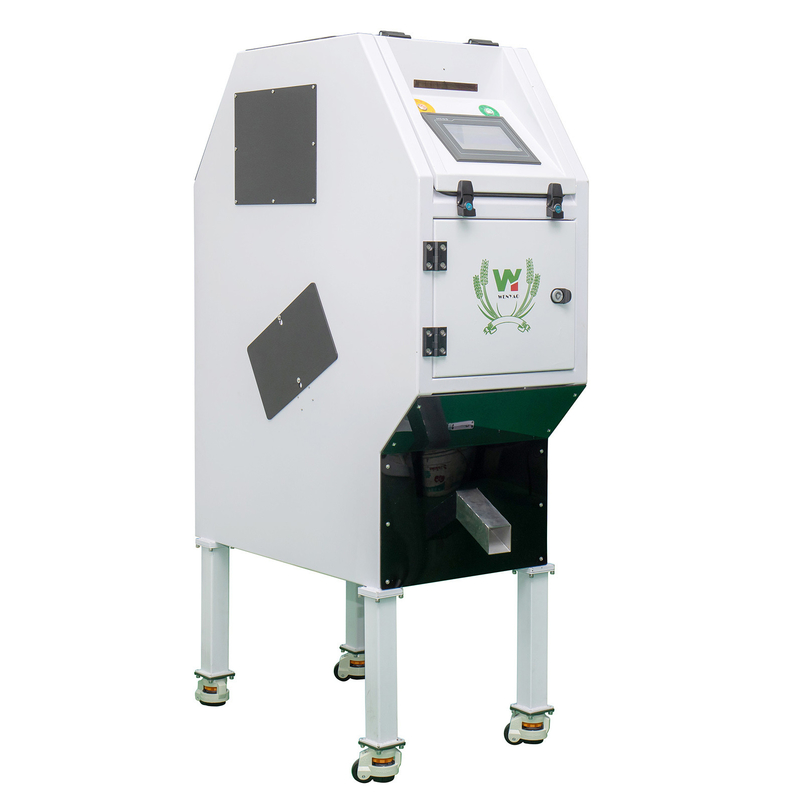

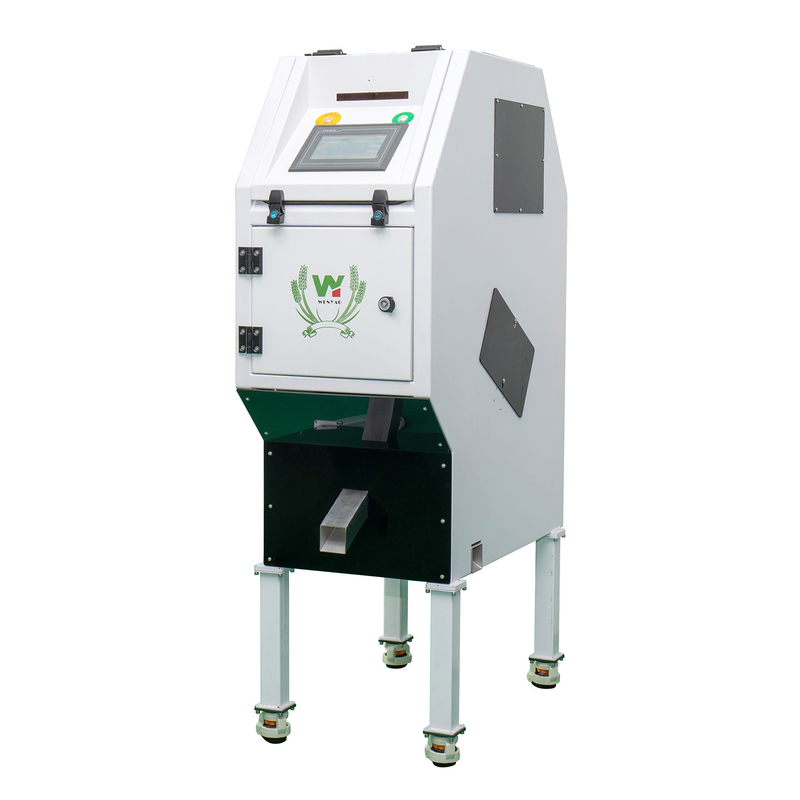

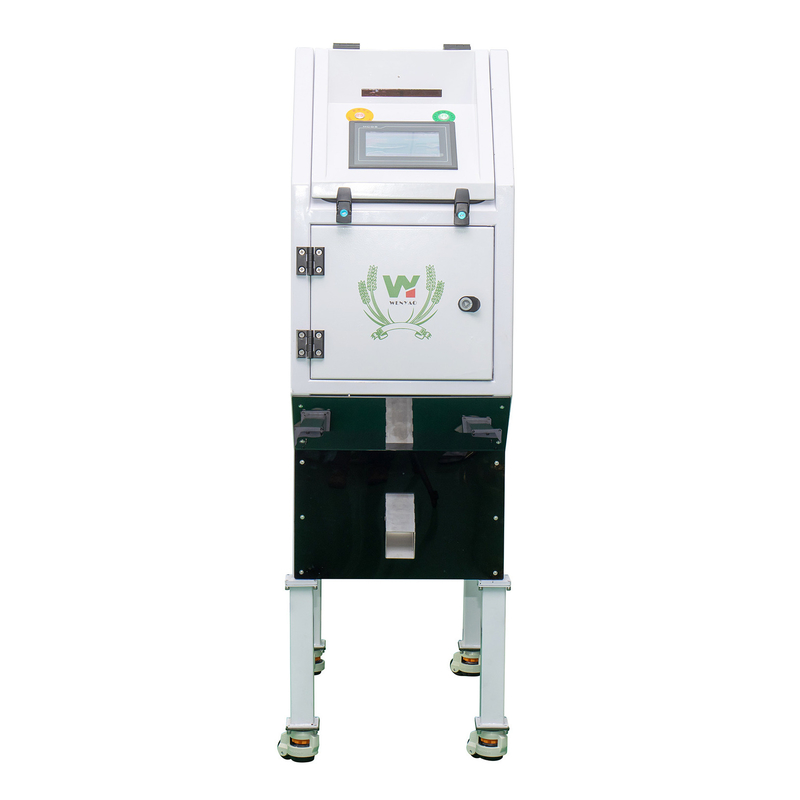

Optical Mini Color Sorter High Sorting Accuracy Light Blue Plastic Color Sorter Machine With Wifi Remote Control System
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber.
Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(kg/h) | 300kg-500kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <100-400L/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
2 . Why US:
Why hope you choose us we use the following listed technologies in machine
1. Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2. America FPGA processing chip.
3. Japan Toshiba CCD sensor.
4. Metal ejectors/valves with more than one billion lifetime
5. Lens:Japan Nikon Lens .
6. Filter: Japan CKD filter
7. Cylinder:Korea YSC BRAND
8. Power source:Taiwan Meanwell
9. All LED light source,more longer lifetime and save power
10. Flexem Humanized touch screen
11. WIFI remote control system ,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service
3. Examples of color sorting:
