Place of Origin:
Hefei,China
Brand Name:
WENYAO
Certification:
ISO9001,CE
Model Number:
WYCS1-64
Contact Us
Video

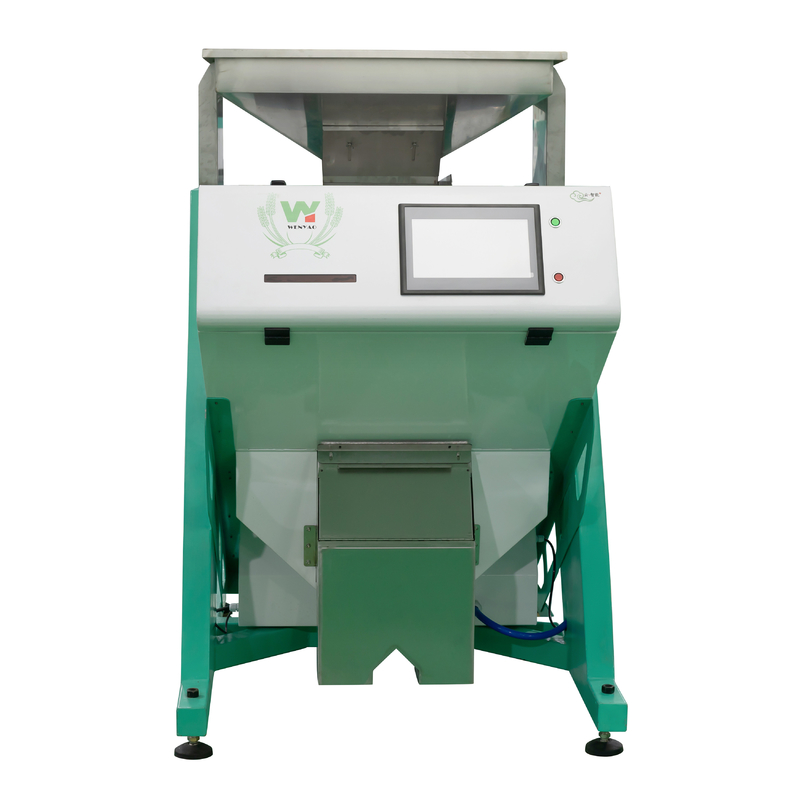

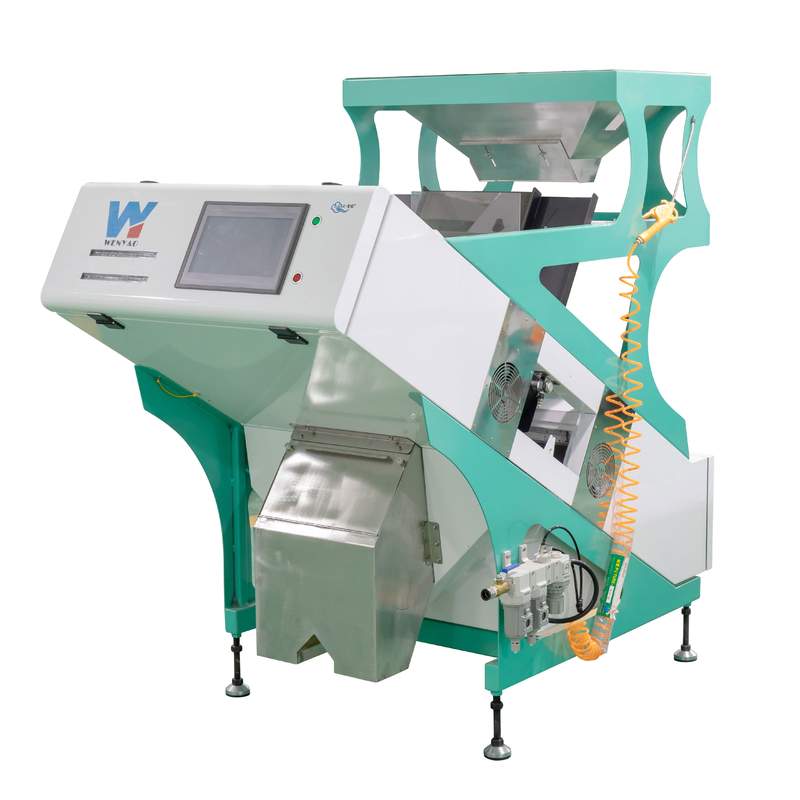

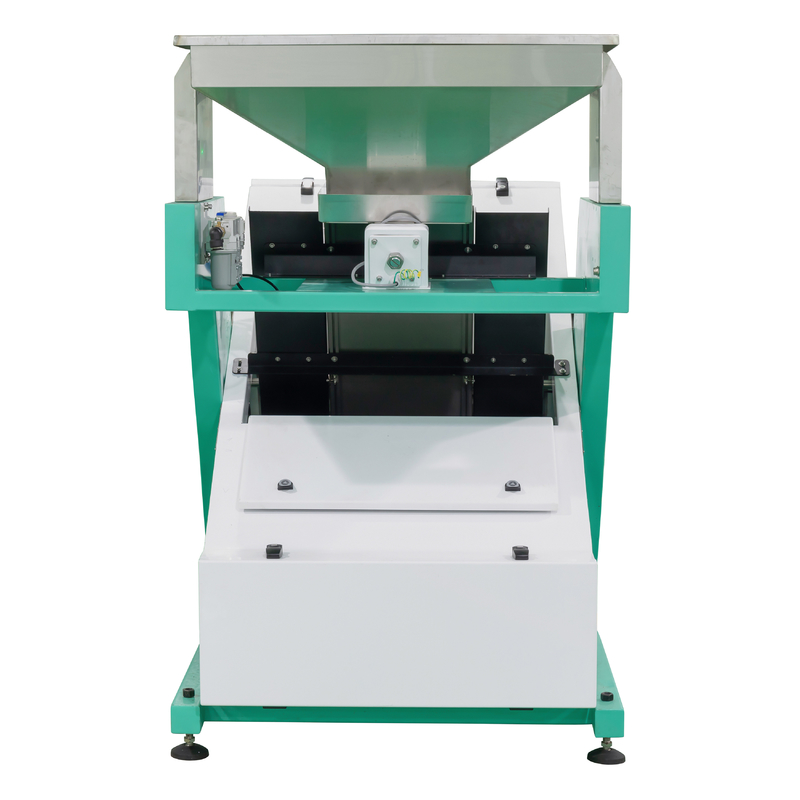

Metal Color Sorter Machine Separate Copper From Bronze And Aluminium High Accuracy
Color Sorter Function
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Photoelectric color sorter is a non-destructive sorting equipment used for quality inspection and grading of bulk materials. It is widely used in grain, food, pigment chemical industry and other industries. , all kinds of beans, all kinds of rice, ore, pepper, pepper, garlic, melon seeds, raisins, seeds, traditional Chinese medicine, dried shrimps, small shrimp, cloves, glass, metal, the same color rod and other malignant impurities and special materials sorting The effects are very significant.
Technical Parameters
| Model | WYCS1-64 | WYCS2-128 | WYCS3-192 | WYCS4-256 |
| Chute/Channel | 1/64 | 2/128 | 3/192 | 4/256 |
| Throughput(t/h) | 1 Ton /H | 0.6-2.5 Ton /H | 1-4 Ton /H | 1.4-5 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 0.75kw | 1.1kw | 1.6kw | 2.3kw |
| Power Voltage | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 280kg | 450kg | 600kg | 750kg |
| Diamension(L*W*H) | L780*W1527*H1543mm | L1250*W1535*H1832mm | L1620*W1535*H1832mm | L1855*W1540*H1852mm |
| Model | WYCS5-320 | WYCS6-384 | WYCS7-448 | WYCS8-512 |
| Chute/Channel | 5/320 | 6/384 | 7/448 | 8/512 |
| Throughput(t/h) | 2-6 Ton /H | 2.5-8 Ton /H | 3-10 Ton /H | 3.5-12 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 2.9kw | 3.1kw | 3.9kw | 5kw |
| Power Voltag | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 900kg | 110kg | 1350kg | 1500kg |
| Diamension(L*W*H) | L2244*W1540*H1852mm | L2595*W1540*H1852mm | L2905*W1540*H1852mm | L2905*W1540*H1852mm |
Highlight Features
1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.
2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.
3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.
4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.
5. Humanization true color screen, visual effect is more clear, operation is more easier.
6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.
High Sorting Performance for Reference
