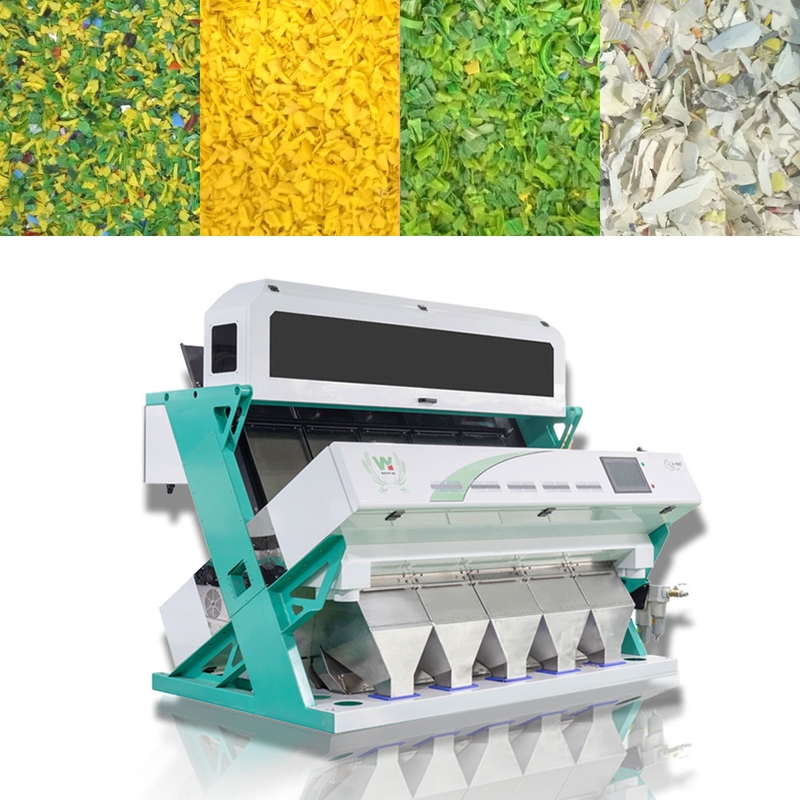

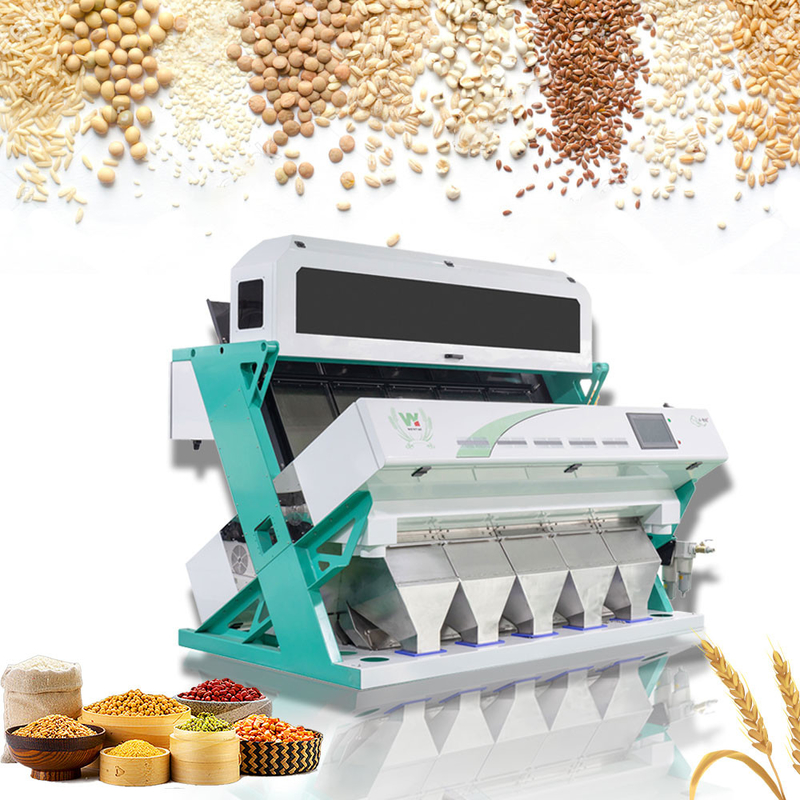

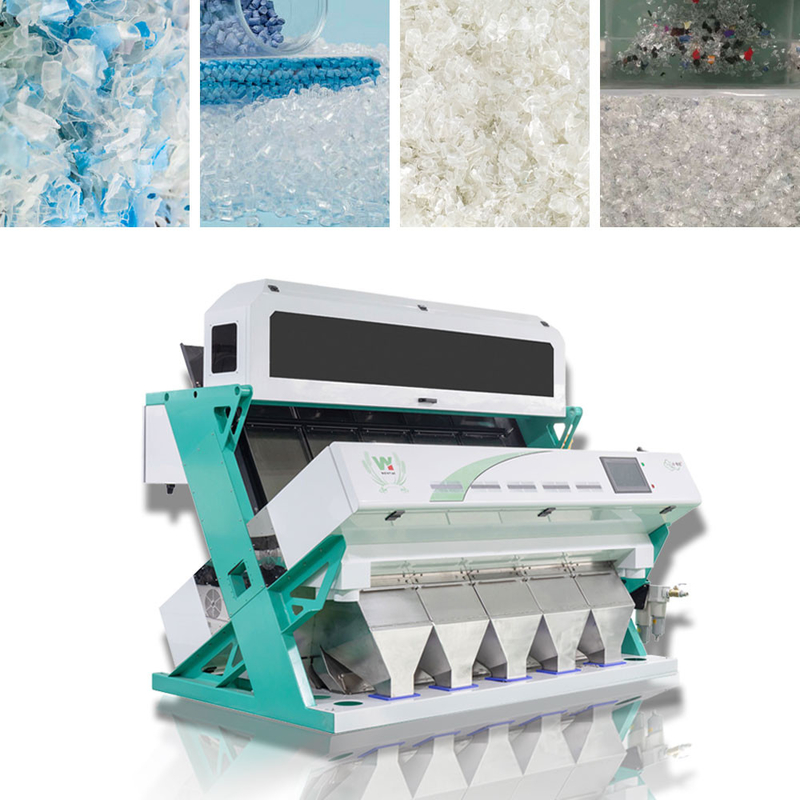

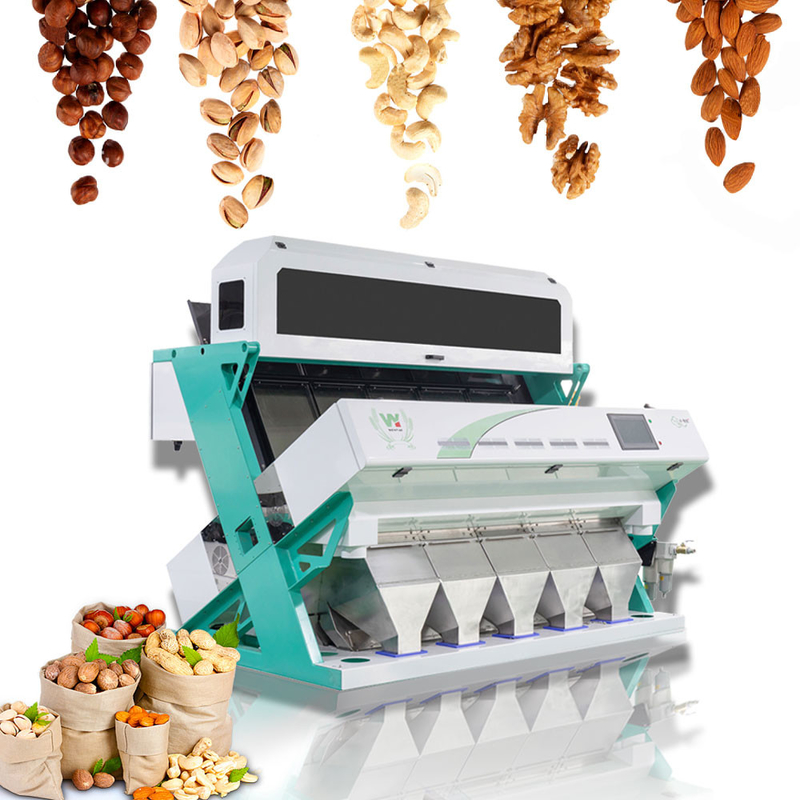

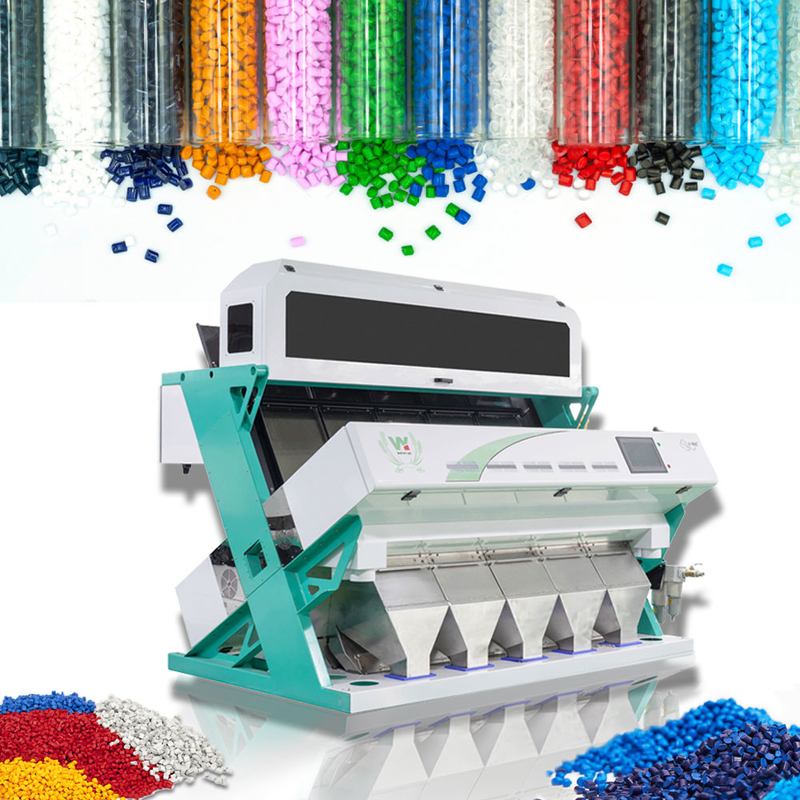

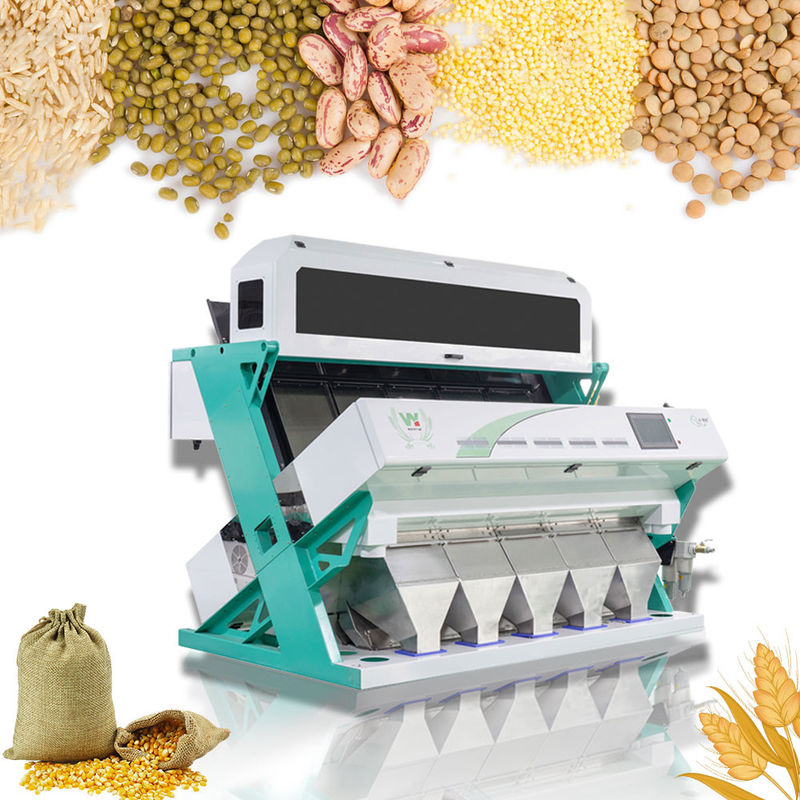

Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals

Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals

5 Chutes Multifunction Color Sorter

FPGA Chip Optical Color Sorter

FPGA Chip Multifunction Color Sorter

Place of Origin:

Hefei,China

Brand Name:

WENYAO

Certification:

CE,SASO, ISO9001

Model Number:

WYCS5-320

Contact Us

Request A Quote
Product Details
Condition:
Newest Multi-Purpose Color Sorter Machine
MOQ:
One Piece
Sorting Accuracy(%):
>=99.98%
Chutes:
Five
Power Supply:
TAIWAN Meanwell
Sensor:
Toshiba 5400CCD Sensor
Processor:
America ALTERA Company FPGA Chip
Interface:
12 Inch Display Screen
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Packing size(L*W*H):2550*1720*2050mm Plywood Cases
Delivery Time
10 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
205PCS Per Month
Product Description

Multifunction 5 Chutes Optical Color Sorter Machine For Rice Bean Nut Seeds Grain Plastic Flakes Color Sorting





Raw materials are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate. Under the effect of light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber



Technical Parameters:

MODEL WYCS5-320
Chutes/Channels 5 / 320
Throughput(kg/h) 3000kg/h-4000kg/h
Sorting Aaccuracy ≥99.99%
Power 2.9kw
Power Voltage 240V/50Hz or Customized
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.8M3/Min
Weight 900kg-910kg
Diamension(L*W*H)

2244*1540*1852mm





Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals 0

WENYAO Color Sorter Machine Working Principle

Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals 1

Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals 2

Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals 3




Color Sorter Machine Core Parts:



Chute System
Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.



Ejector Valve
Italian new type of high frequency electromagnetic valve allows for accurate control of air flow power and direction with long lifetime.

Interface with Auto Testing


Self-developed auto diagnosis function with touching screen, automatically operate the testing of injector, pressure, camera, control board, background LED light and others when starting up.



Other Components
World class parts supplier, such as filter of Korea YSC and Japanese CKD. Premium quality with those famous global brands.



Multi-function,multi-purpose,widely used for rice,grain ,beans,plastic,chinese herbals etc.
Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
High and specification ensures high stability with high sorting accuracy small carry over and low energy.



Color Sorting Examples



Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals 4

Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals 5



5.FAQ

1. Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply within 24 hours

2. Can we print our logo/website/company name on machines?

Yes, please advise the size and Pantone Code of the logo.

3. What's the lead time for regular order?

7-15 days for order quantity 1 set; For more than 3 sets, usually 20 days.

4. Can I get a discount?

Yes, for the order quantity more than 2 sets, please contact us to get the best price.

5. Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.





6.Real Photo of WYCS5-320 in customer site

Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals 6





7.Our Service:


Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.


8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.

Multifunction 5 Chutes 320 Channels Optical Color Sorter For Rice Bean Nut Seeds Pet PP ABS Plastic Minerals 7
