Place of Origin:
Hefei,China
Brand Name:
WENYAO
Certification:
ISO9001,CE
Model Number:
WYCS1-64
Contact Us

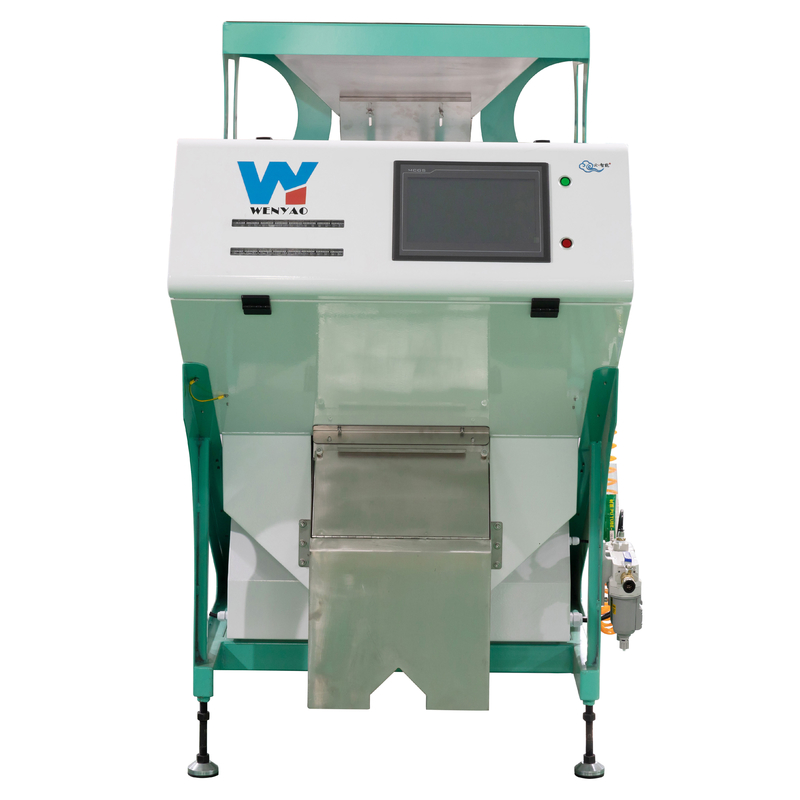

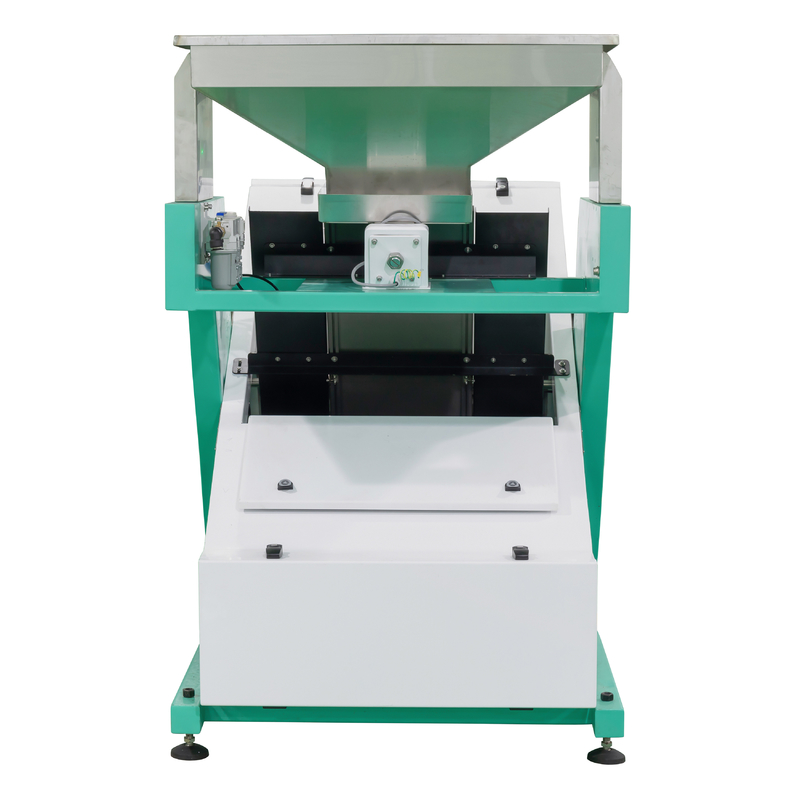

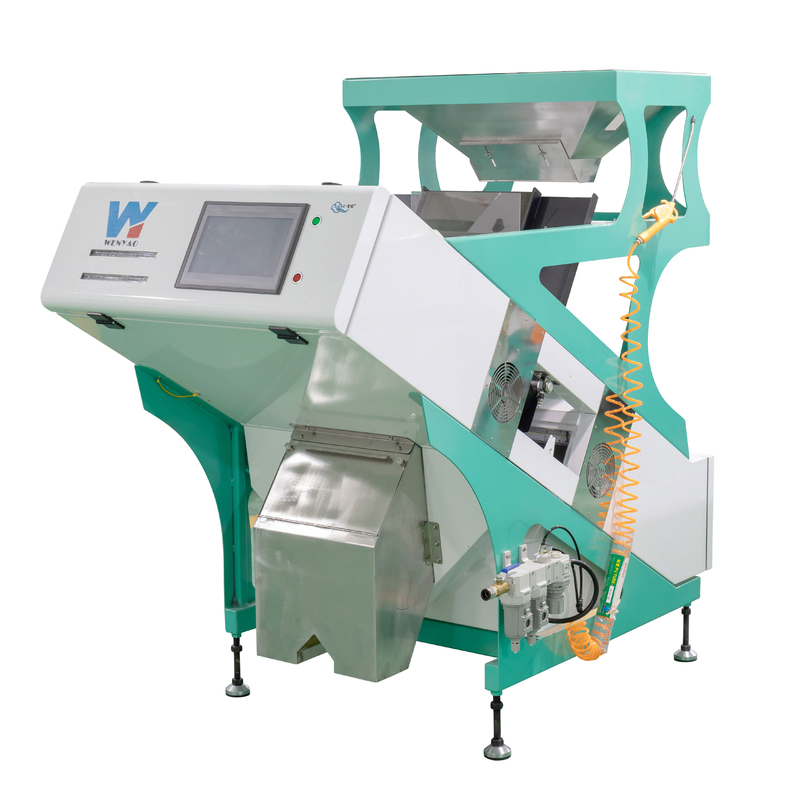

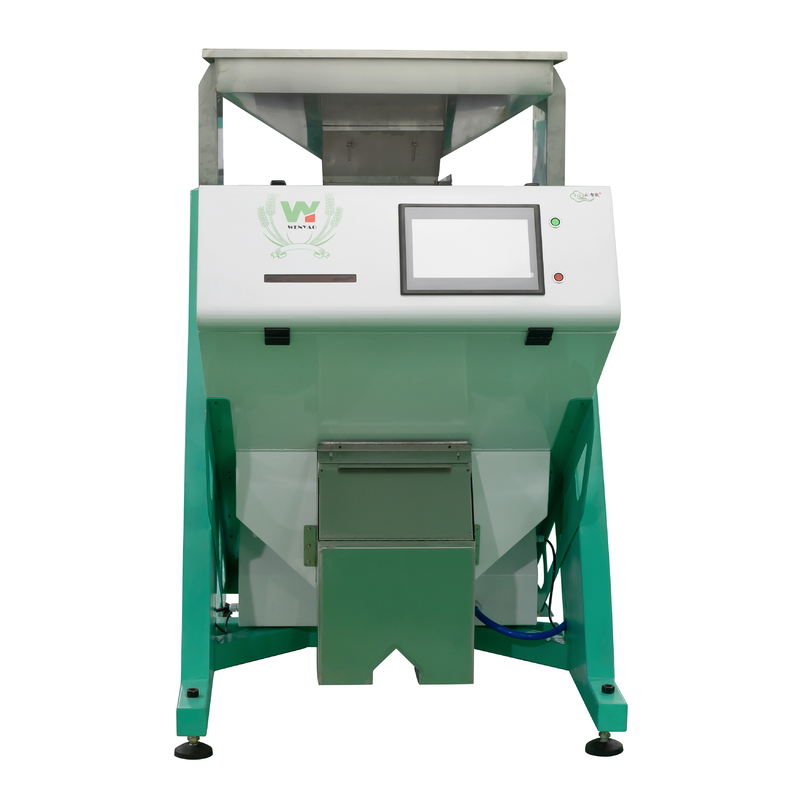

64 Channels Mini Color Sorter Machine Mini Mineral Sorting Machine
Color Sorter Function
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Photoelectric color sorter is a non-destructive sorting equipment used for quality inspection and grading of bulk materials. It is widely used in grain, food, pigment chemical industry and other industries. , all kinds of beans, all kinds of rice, ore, pepper, pepper, garlic, melon seeds, raisins, seeds, traditional Chinese medicine, dried shrimps, small shrimp, cloves, glass, metal, the same color rod and other malignant impurities and special materials sorting The effects are very significant.
Technical Parameters
| Model | WYCS1-64 | WYCS2-128 | WYCS3-192 | WYCS4-256 |
| Chute/Channel | 1/64 | 2/128 | 3/192 | 4/256 |
| Throughput(t/h) | 1 Ton /H | 0.6-2.5 Ton /H | 1-4 Ton /H | 1.4-5 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 0.75kw | 1.1kw | 1.6kw | 2.3kw |
| Power Voltage | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 280kg | 450kg | 600kg | 750kg |
| Diamension(L*W*H) | L780*W1527*H1543mm | L1250*W1535*H1832mm | L1620*W1535*H1832mm | L1855*W1540*H1852mm |
| Model | WYCS5-320 | WYCS6-384 | WYCS7-448 | WYCS8-512 |
| Chute/Channel | 5/320 | 6/384 | 7/448 | 8/512 |
| Throughput(t/h) | 2-6 Ton /H | 2.5-8 Ton /H | 3-10 Ton /H | 3.5-12 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 2.9kw | 3.1kw | 3.9kw | 5kw |
| Power Voltag | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 900kg | 110kg | 1350kg | 1500kg |
| Diamension(L*W*H) | L2244*W1540*H1852mm | L2595*W1540*H1852mm | L2905*W1540*H1852mm | L2905*W1540*H1852mm |
Highlight Features
1.Camera: Use high standard to promise high precision work
International well-known brand customized lens, high-speed of scanning, the highest resolution comes to 0.02 mm2
2.High-frequency Solenoid Valve:leading in China
High working efficiency and high quality and high precision solenoid valve, with consistency of near zero error, service life more than 1 billion times.
3.Intelligent Image Processing Algorithm
The combination of colors and shapes of intelligent algorithm, precise professional sorting solutions
4.Customized Lighting System:import purchasing
Advanced LED optical design system, Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life. LED lighting system with thermal dissipation.
5.Data Transmission System:high-speed and stable
The COAX interface:High anti-jamming, high transmission speed, high stability
6.Chip:innovative ultra high-speed processing
Based on SOC platform architecture;Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.
7.Feed Trough:
Special anodization treatment process ensures the required production in line with the international first-class level. Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.
8. Human-Computer Interface:simple and easy to operate,more intelligent, easy operation, one button for professional sorting, remote, debugging, remote diagnosis, remote software upgrading.
High Sorting Performance for Reference
Customer Cases
customer sites :
Our service
We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.
We have over 30 after-sale service staff, with our service penetrating to prefecture-level city, and provide 24h door-to-door prompt and thoughtful service for customers.
We provide customer with two years free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.
Service commitment: Two years free repair and maintenance for complete machine, 24h door-to-door fast response, 7x24h consultation service .No matter where you are, you can visit us .
