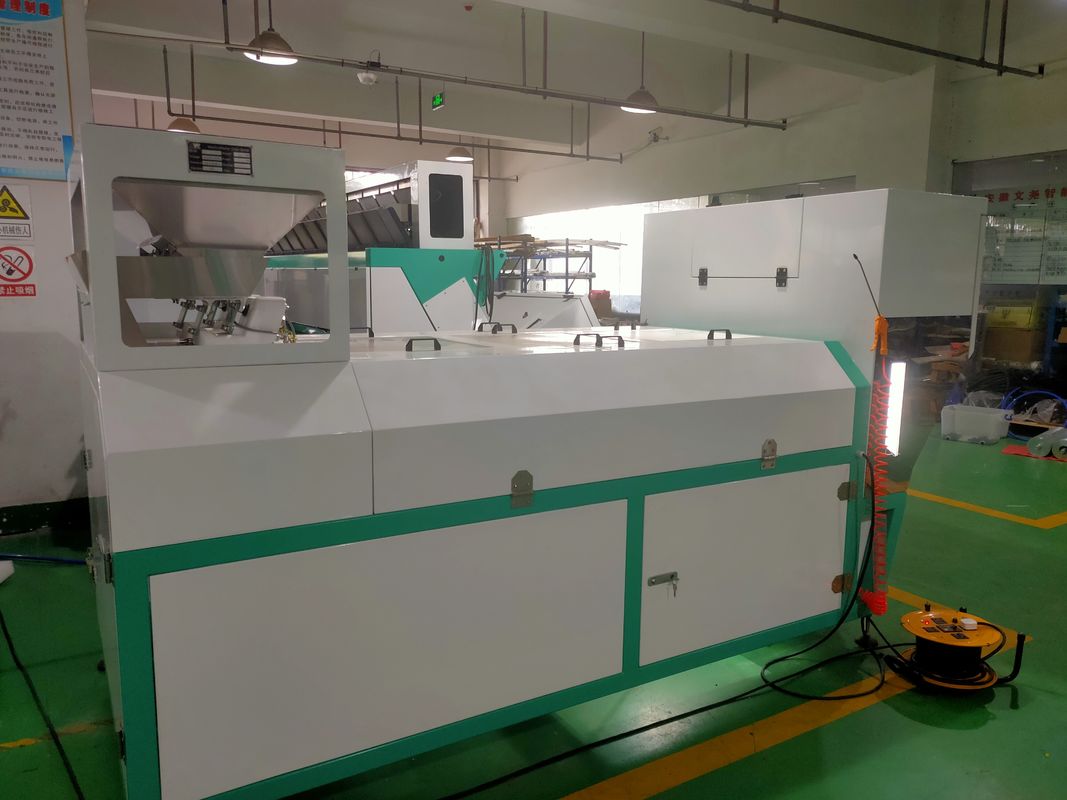

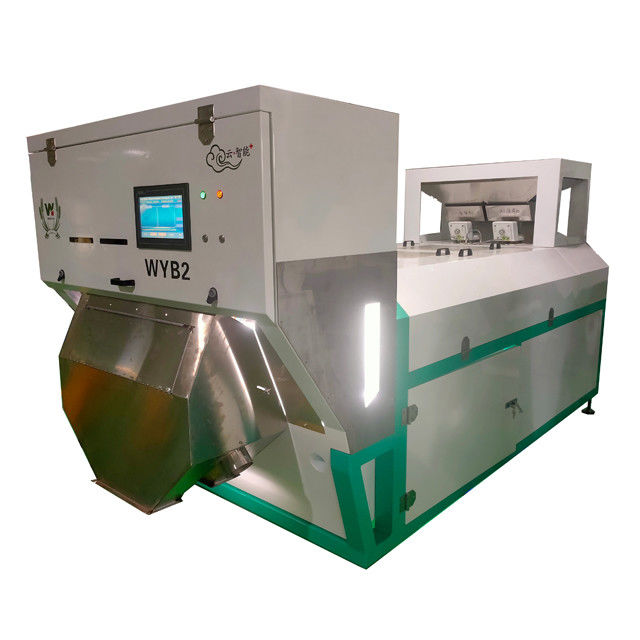

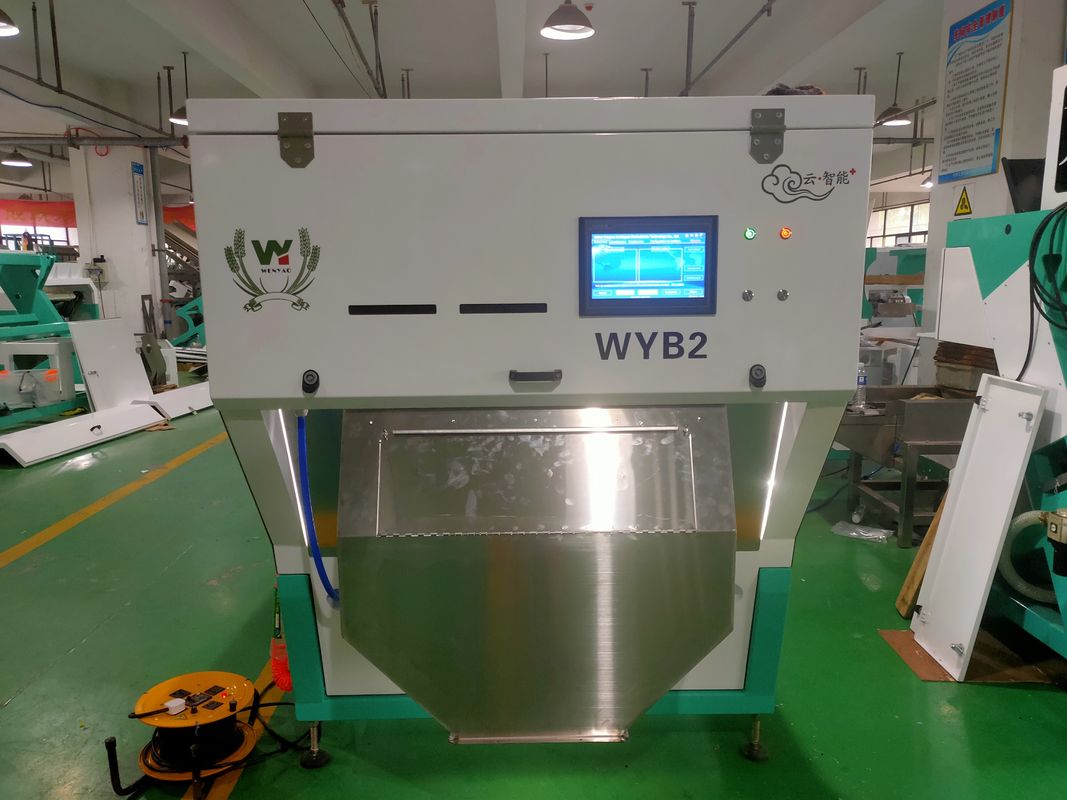

Name: High Accuracy Belt Type Mineral Sorting Machine with 5400 Pixels Optical Sorter
Brand: Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd
SKU: WYB2
Price: 20,000.00 USD
Availability: InStock

Home > Products > Mineral Sorting Machine >

High Accuracy Belt Type Mineral Sorting Machine with 5400 Pixels Optical Sorter

6 Chutes Mineral sorting machine

6 Chutes quartz sorting machine

Metal ejector Optical Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYB2

Request A Quote

Product Details

Function:

Color Sorting Machine

Sorting Accuracy(%):

≥99.99

Color:

White ,according To Customer's Needs

Light Source:

LED

Condition:

New

Warranty:

2 Years Warranty

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service

Ejector:

Metal Ejector

Application:

Rice Processing,sorting,wheat,grain Cleaning And Separator

Voltage:

220V 50HZ

Whole Power:

3.1

Feature:

Easy To Operate ,high Sorting Accuracy

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

Negotiable Price

Packaging Details

Plywood case package Packing size(L*W*H):2.70*1.72*2.05M

Delivery Time

15 - 20 working days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

200PCS Per Month

High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity

Get Best Price

Video

Automatic Quartz Grain Color Sorter with 99.99% Sorting Accuracy and Double-Sided Camera Detection

Get Best Price

Video

High Precision Quartz Color Sorting Machine with 99.99% Accuracy and Double-Sided Camera Detection for Silica Sand Separation

Get Best Price

Video

CCD Quartz Ore Color Sorter with 99.99% Sorting Accuracy and Double-Sided Camera Detection for Mineral Sorting

Get Best Price

+86--13855135585

service@wycolorsorter.com

+86-551-67699185

Contact Now

Product Description

High Accuracy Belt Type Optical Pebble Marble Stone Mineral Quartz Color Sorting Machine YSC/CKD Filter

High Speed Output Pebble Marble Stone Optical Sorter Belt Big Mineral Quartz Color Sorting Machine YSC/CKD Filter

Technical Specifications

Parameter	Specification
MODEL	WYCS6-384
Chutes (channels)	6 (384)
Sorting accuracy	≥99.9%
Carryover rate (bad:good)	≥12:1
Output	≥4 T/h
Voltage	180-240V/50Hz
Power supply	3.1 kW
Work Air Pressure	0.2-0.3 Mpa
Air consumption	1500-3200 L/min
Air supply	0.6-0.8 Mpa
Dimension (LWH)	259515401852 mm
Weight	1100 kgs
Package	Plywood case
Package Size	264515901902 mm

Key Components & Features

Component	Specification	Features
Channels	64*2=128	High quality aluminum alloy Anodic oxidation Surface polishing treatment Material slipping steadily Wear-resisting, wearproof Long service life
Pixel of camera	5400	High accuracy 5400 pixels High performance with high resolution 2 years warranty
CCD sensor	Toshiba	High sensitivity and resolution 2 years warranty
Light source	LED Lamps	Luminous evenly Long service life The light is not weak for long time
Ejector	Metal	High speed effect 1500 times/second Low air consumption Long time service 18 months warranty
Filter	YSC/CKD	High filtration accuracy High filtering speed Durable and long time service
Screen	Touch screen	Easy to operate with man-machine interface High sensitivity of the screen Long service life Software update service program 2 years warranty
Hopper	304 stainless steel	Rust protection Wear-resisting, wearproof
Package	Plywood case	Stable structure no deformation Easy to transport

Working Principle

Working principle: CCD color sorter uses CCD digital camera for material signal acquisition. The system analyzes the collected signals, processes, compares, and eliminates materials beyond the set value.

Color selection process: During operation, material in the feed hopper is evenly distributed across each chute under the action of the vibrator. The CCD system detects signals from the falling material. If unqualified material or impurities are detected, the ejector activates to blow defective items into the hopper. (Diagram shows working process; actual material may vary.)

Color Sorting Examples

Customer Site Examples

Frequently Asked Questions

How about engineers service overseas?

Engineers available to service machinery overseas.

How to use the machine?

We will supply customer the installation catalog or video online. We will ask our engineer to teach you how to use when he goes to your country to debug the machine.

How about the sample machines for testing?

Sample sending for testing is welcomed. Or you send these three photos: the raw material, good material (which you want), bad material (which you want to discard). We will send our video to you.

How about the guarantee period?

One year.

Will you accept L/C as payment?

L/C, T/T is OK.

Do you have any other spare parts for the customer?

Yes, we will supply you some spare parts.

Which machine will work together with our color sorter which you can supply?

Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.
