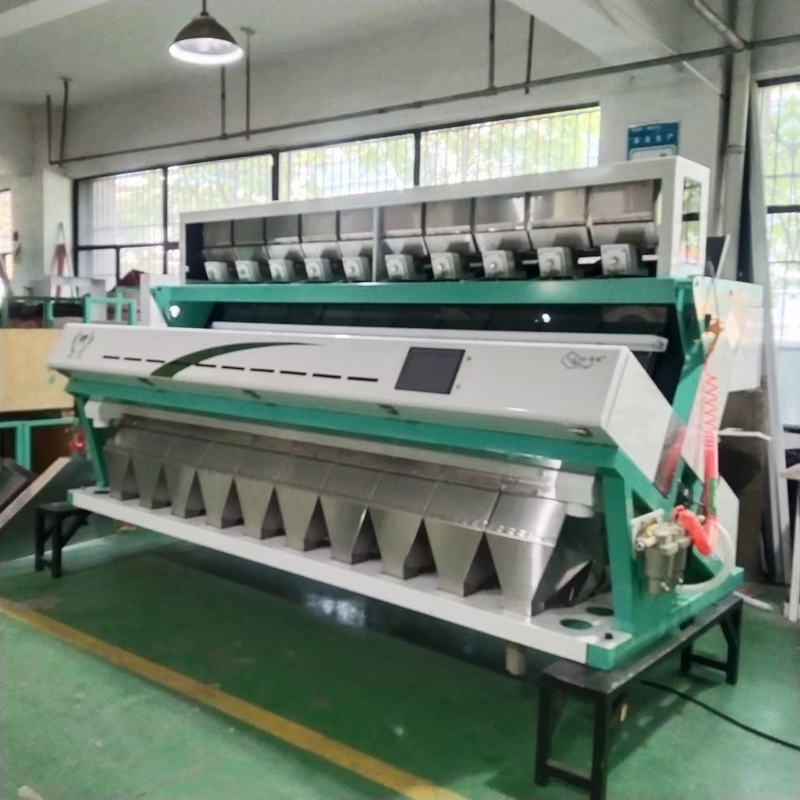

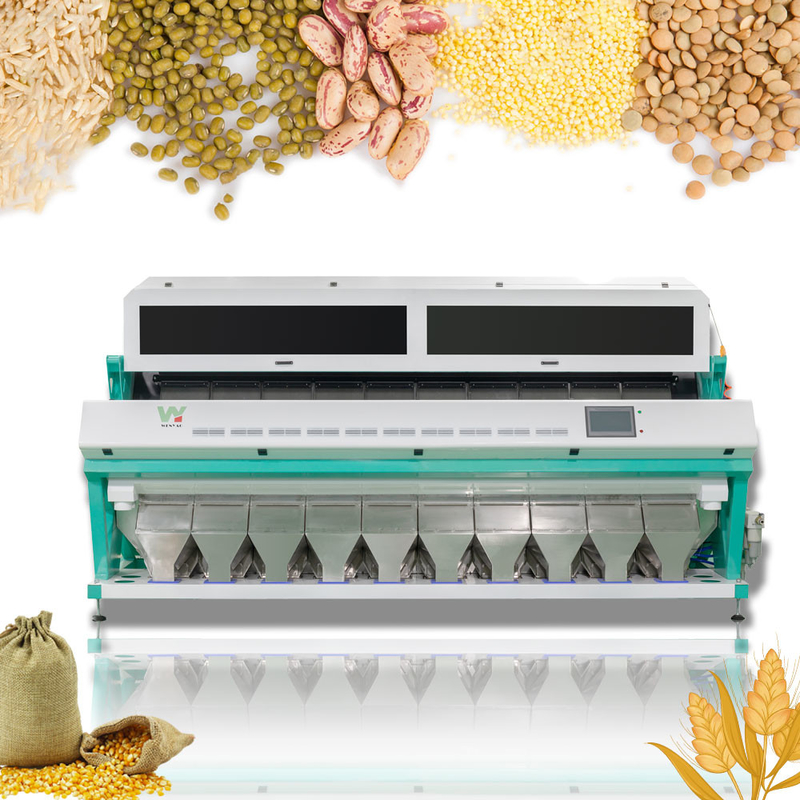

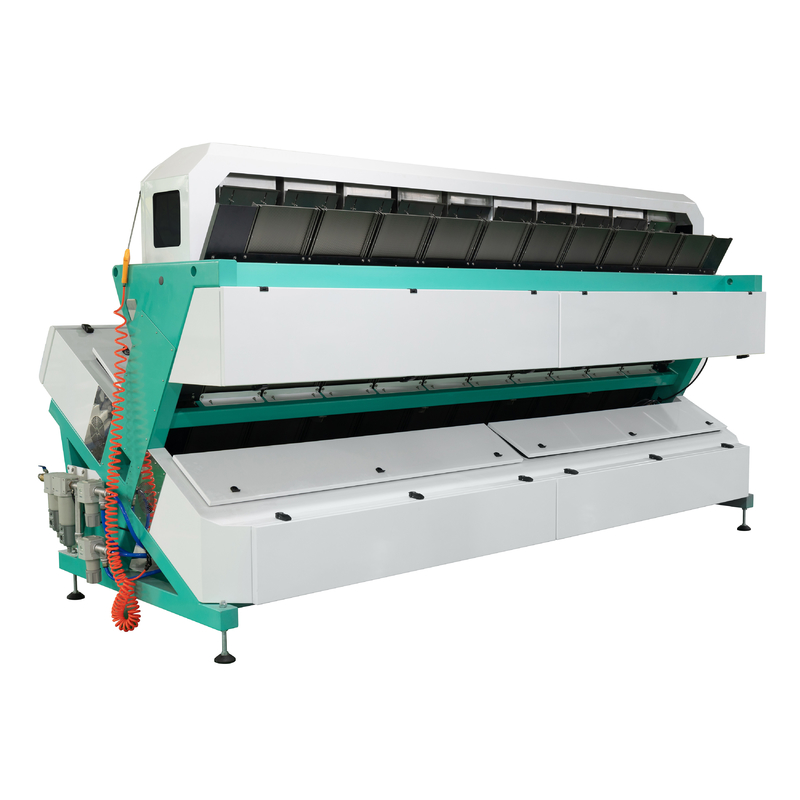

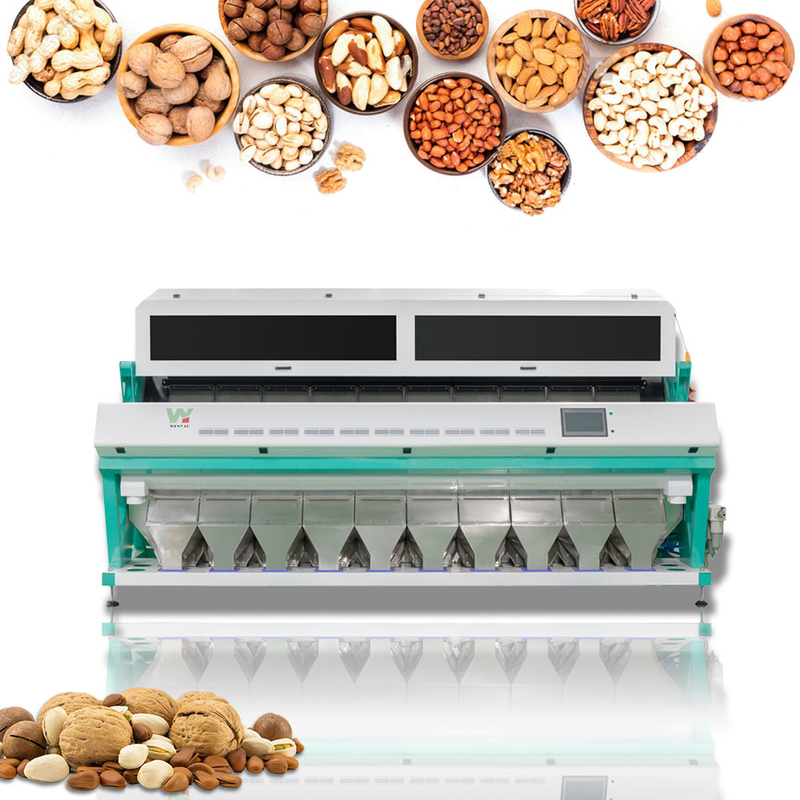

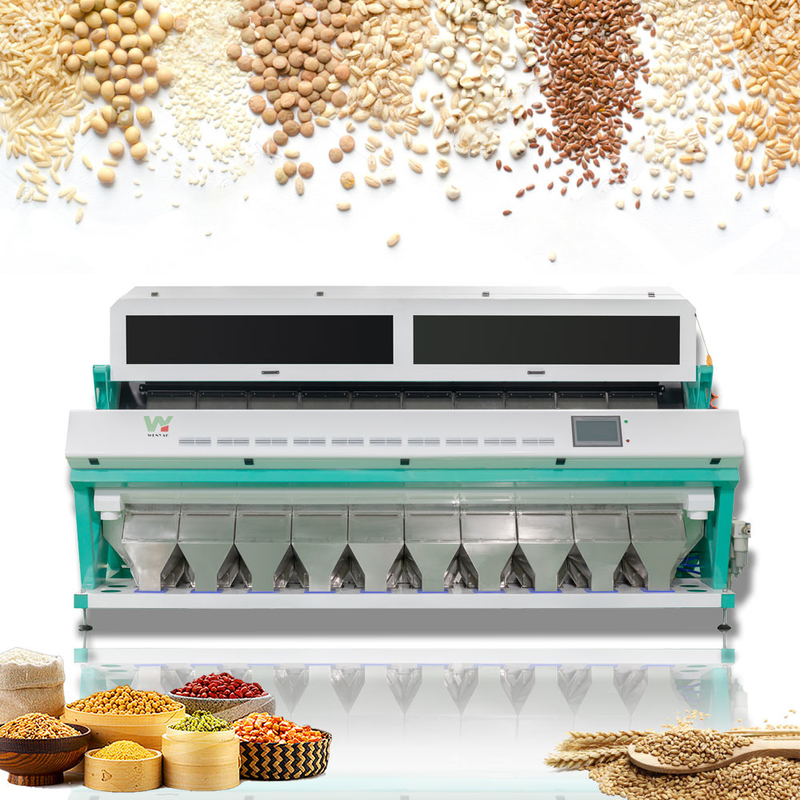

Wenyao Rice Grain Color sorting Machine Grain Plastic Coffee Beans Peanuts Colour Sorting Colour Sorter Color Sorter
Wenyao Color Sorting Machine working principle:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Features:
1.It adopts high quality special industrial lenses;
2.Self checking system,5400 CCD camera, and photo processing technology.
3.High speed FPGA technology signal processor with fast detection and high identification rate.
4.Overall unit adopts intelligent closed-loop control.
5.High speed air value is used to ensure quick response, low power consumption and long service life.
6.It uses intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
7.Failure alarm automation and modular construction makes easy repair.
8.Combining LED lighting systems with fixed backgrounds and low voltage vibrator, auto-adjusts varying light levels, minimizing vibrations and producing consistent throughput across the chute.
Technical Parameters:
| MODEL | WYCS10-640 |
| Chutes/Channels | 10/640 |
| Throughput(t/h) | 10-15t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 6.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <5M3/Min |
| Weight | 1800kg |
| Diamension(L*W*H) | 3750*1540*1852mm |
CCD color sorter machine core parts:
1.Each group can be synchronized for the simultaneous separation of different models. This allows for a variety of color sorting at same time. This method both improves productivity and significantly increase the color accuracy.
The anti-oxygen chute device adopted special processing technology, make material flow more smooth, uniformly. It's also very strong and durable.
Advanced LED light with thermal dissipation, wide color gamut, excellent uniformity, long service life and low power consumption.
The valve has longer lifespan, high frequency and low air consumption. For the different sizes and characteristics of material particle, sorters use the solenoid valve of different sizes.
The color sorter has built in self-diagnostic capability verifying key components e.g.spray valve, pressure plate, camera, control panel, and background during normal operation .Identified faults can be easily rest by the user.
We have a professional after-sales team and engineers. And we supply lifelong software upgrade services for our customers.
Product application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and frut:
Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish and shrimp

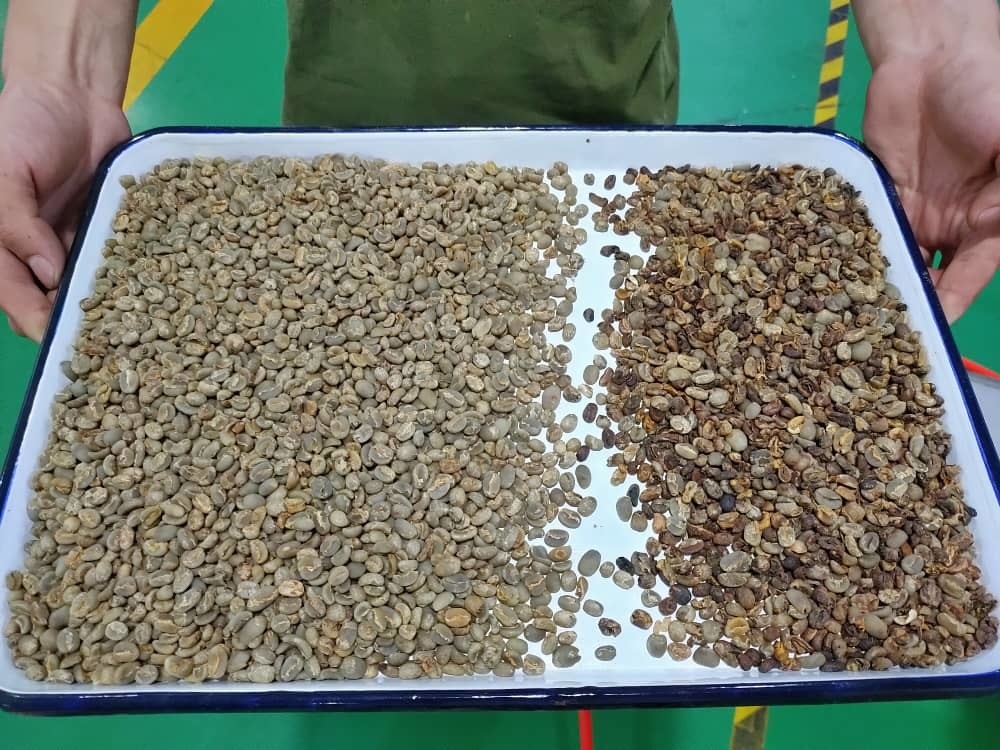

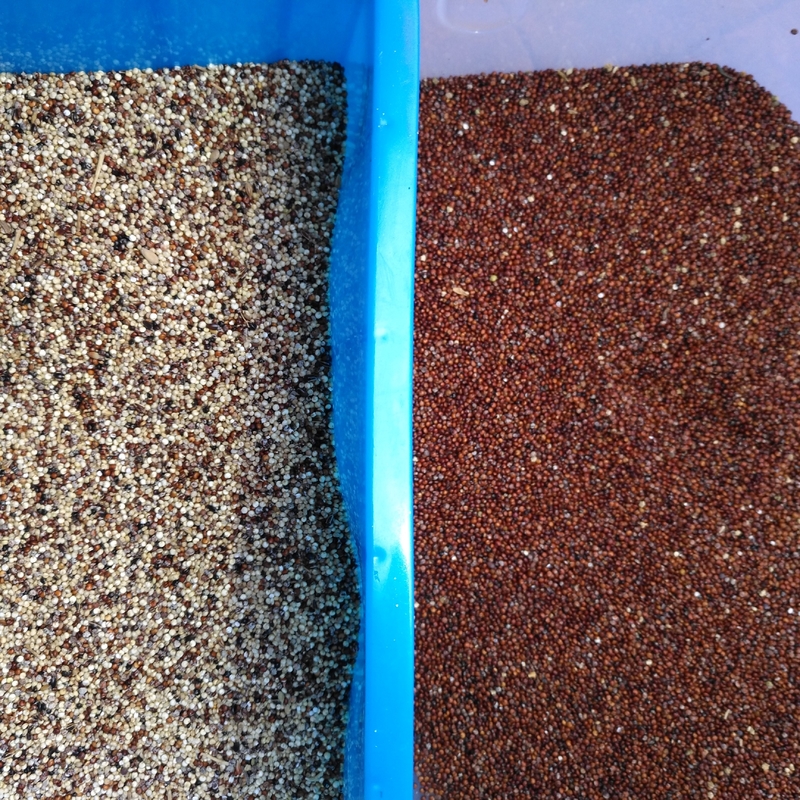

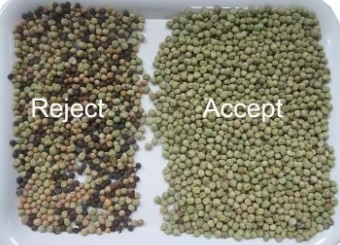

Examples of color sorting:
Packing and delivery:
Our products use professional wooden cases within PE plastic bag.
Package size will depend on each model size different.
Product advantage:

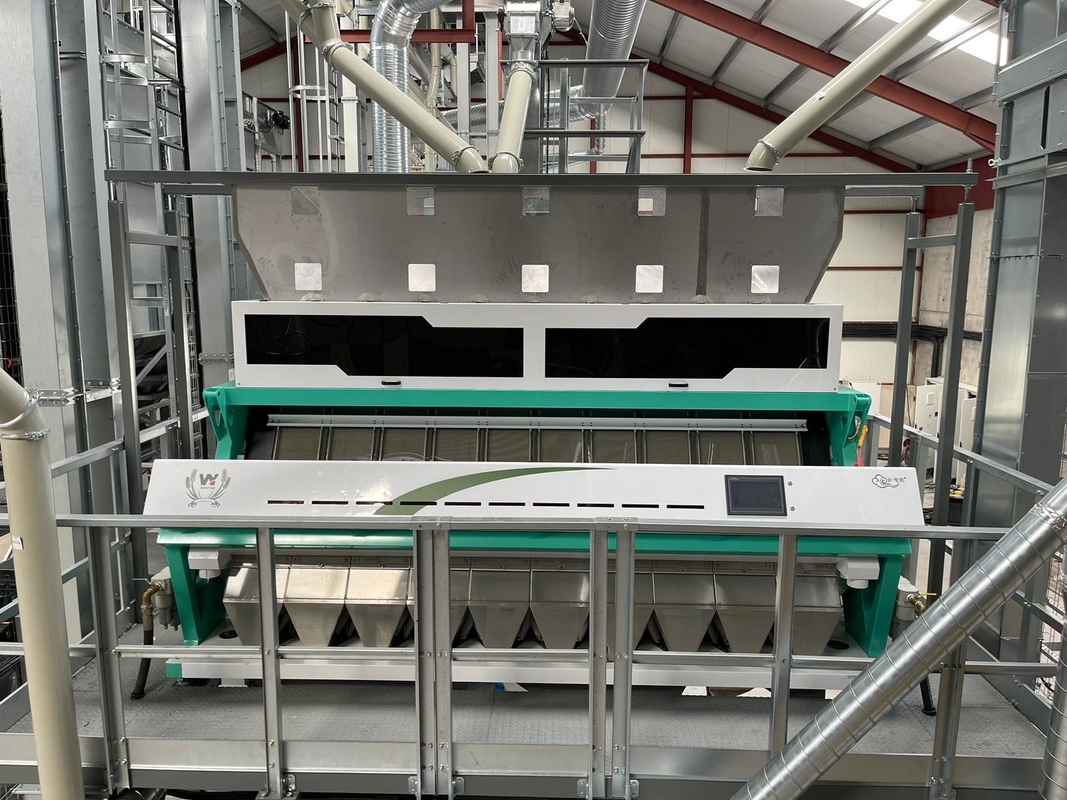

Our customer'site:
