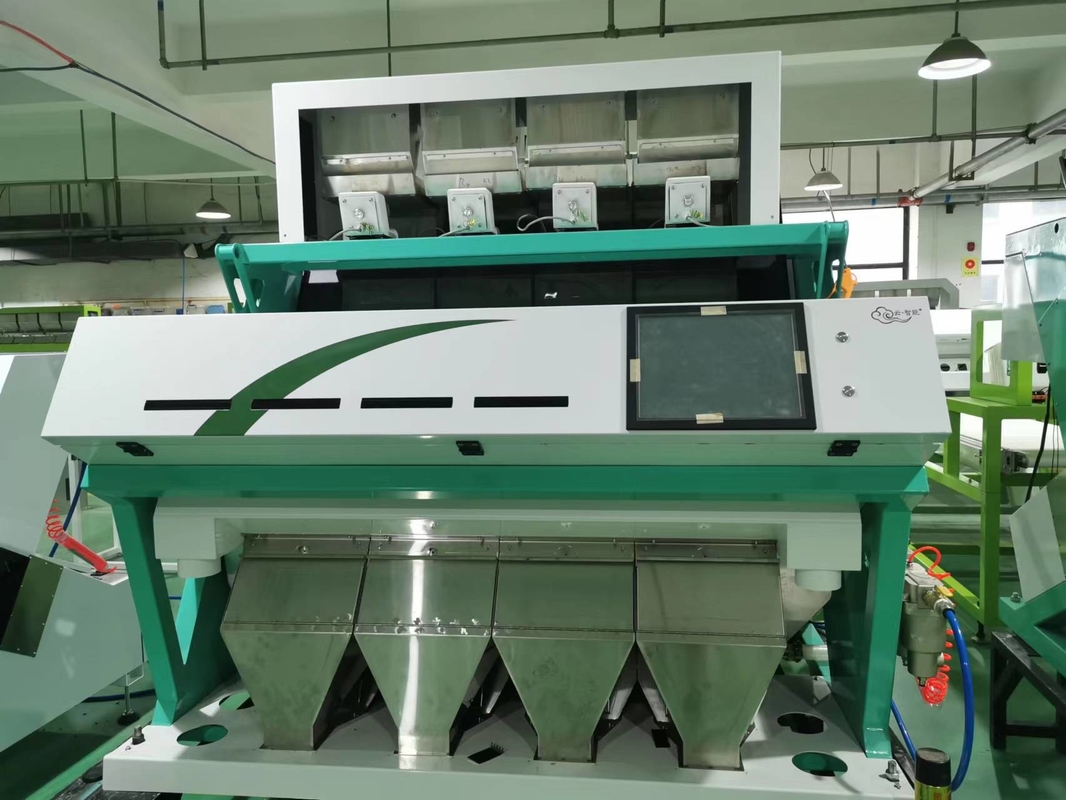

Wheat Barley Color Sorter Machine Grain Color Sorting Machine
What are the benefits of color sorter machine?
Color sorters eliminate the need for manual sorting, which is time-consuming and highly inefficient compared to automated color sorting. The most common application is agricultural products, although many business owners leverage this labor-saving process for other bulk products.
Technical Parameters:
| MODEL |
WYCS4-256 |
| Chutes/Channels |
4/256 |
| Throughput(t/h) |
2-3t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
2.3kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<2.4M3/Min |
| Weight |
750kg |
| Diamension(L*W*H) |
1855*1540*1852mm
|
Product Description
1. The vibration is even and the frequency is stable, so that the falling of the material can form a waterfall flow, which will not overlap the material and reduce the color selection error.
2. Customized rust proof aluminum alloy materials, produce strictly according to the standard of international food safety ,non-toxic and harmless.
3. Imported Led lights with more than 10 years service life. Shadowless led lights can precisely focus the ray on the inspection line which can identify any light color differences.
4. Dual 5388px full color high resolution imported cameras, able to recognize the 0.01mm defects.
5. High-frequency ejectors, up to 1200Hz/s. The fastest response time within 0.6ms. Long service life ejectors, service time 5-10 billion.
6. High-speed transmission system with internet access system, data standardization and GBE. High technology supports TP/TCP protocol. Internet remote maintenance as well as performance, malfunction, and safety management
7. The operative system interface is easy to use. Multiple languages to choose. One-key intelligent automatic identification and adjust to meet the requirements of different batches and different impurity rate of the raw material.
8. Automatic cleaning system with customized time, duration and no delay to keep the machine working without time waste.
Color sorter Principle as below:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
Maintenance and inspection
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.
Frequently Asked Questions:
1. How will we get Quotations for Color Sorter?
Color Sorter separates materials by optoelectronic technology according to color difference.
Please indicate Input Materials name, and Production Throughput. It will be better if you could provide materials photos, and mark accepted colors and rejected colors.
2. How do we do Samples Test?
Welcome customers provide test materials or visit us, then we provide test report together with test video in time. If you could not send it, Please provide photos like these, Original Materials, Accepted Materials and Rejected Materials. Then we use stored materials for test, and advise you with test data.
3. What is your After-sale service?
We provides detailed technical assistance on how to install, After the machinery is installed, our service engineer comes to customer workshop, debugging well on-cite, and training customers staff free-charge.
4. Hong long is Warranty time?
We provide Two years warranty of whole machine.
5. Could you supply Accessories of Color Sorter?
Yes, also supply these spare devices like Air compressor, Air tank, Platform, Air filter, Elevator, UPS, Regulated Power supply. Quotation will be separate.
6. How many models do you have?
We supply Various Models to meet the needs of different production, from household to large scale production, We also accepts orders of customized models.
7. We are interested in your machine, How we have a meeting face by face?
our staff visit oversea clients regularly, Please make an appointment in advance with us. In additional, if you visit our office and workshop, please take your materials sample together and let us test it in our workshop.
8. What materials can be sorted
Rice, cereal, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. If you want to sort other materials, please contact our customer service.
Packing And Delivery :
What is the principle of color sorter?
The working principle of the CCD color sorter is to determine the color depth and light transmittance of the material by taking pictures of the material, compare the amplitude of the light change, and eject the material whose amplitude exceeds the set value.
What is a color sorter in the food industry?
Food industry
Colour sorters are used for the food processing industry, such as coffee, nuts, and oil crops. The goal is the separation of items that are discoloured, toxic (such as ergot), not as ripe as required, or still with hull after dehulling such as sunflower seeds..
