Stable Quality Watermelon Seeds CCD Color Sorter Machine Grain Color Sorting Machine

Stable Quality Watermelon Seeds CCD Color Sorter Machine Grain Color Sorting Machine

Watermelon Seeds Color Sorter Machine

CCD Grain Color Sorting Machine

RGB CCD Color Sorter Machine

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS10-640

Contact Us

Request A Quote
Product Details
Features:
Easy To Operate
Structure:
Freefall
Type:
CCD
Transport Package:
Wooden Box
HS Code:
8437101000
Origin:
Hefei
Brand Of Power Supply:
Taiwan Meanwell
Process Chip:
America Fpga
Type Of Ejectors:
Metal
Pixels Of Camera:
5400
Light Source:
LED
Name:
Optical Sorting Machine
CCD Sensor:
Full Color RGB
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size
Delivery Time
15-20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Stable Quality Watermelon Seeds Ccd Color Sorter Machine Grain Sorting Machine



Latest UHD imaging and analysis technology,high-speed processing,accurate identification.
High level AI self-learning function,one-key automation,user friendly interface,easy operation.
Multi-function,multi-purpose,widely used for rice,grain ,beans,plastic,chinese herbals etc.
*Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
*High and specification ensures high stability with high sorting accuracy small carry over and low energy.
*Clound computing,massive dated analysis,multi-camera identification,high accuracy.
*Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.



Details as following
MODEL WYCS10-640
Chutes(channels) 10(640)
Sorting accuracy(%) ≥99.9
Carryover rate (bad:good) ≥30:1
Output(T/h) 10
Voltage 180-240V/50Hz
Power supply(kw) 6.5
Work Air Pressure(Mpa) 0.2-0.3
Air consumption(L/min) 2600-5000
Air supply(Mpa) 0.6--0.8
Dimension(L*W*H) mm 3630*1545*1860
Weight(kgs) 1800
Package Plywood case
Package Size mm 3764*1554*1871



Technical Parameters:

Stable Quality Watermelon Seeds CCD Color Sorter Machine Grain Color Sorting Machine 0





Color sorter work principle:



Stable Quality Watermelon Seeds CCD Color Sorter Machine Grain Color Sorting Machine 1


The working principle of CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)

Examples of color sorting:





Latest UHD imaging and analysis technology,high-speed processing,accurate identification.

High level AI self-learning function,one-key automation,user friendly interface,easy operation.
Multi-function,multi-purpose,widely used for rice,grain ,beans,plastic,chinese herbals etc.
*Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
*High and specification ensures high stability with high sorting accuracy small carry over and low energy.
*Clound computing,massive dated analysis,multi-camera identification,high accuracy.
*Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.

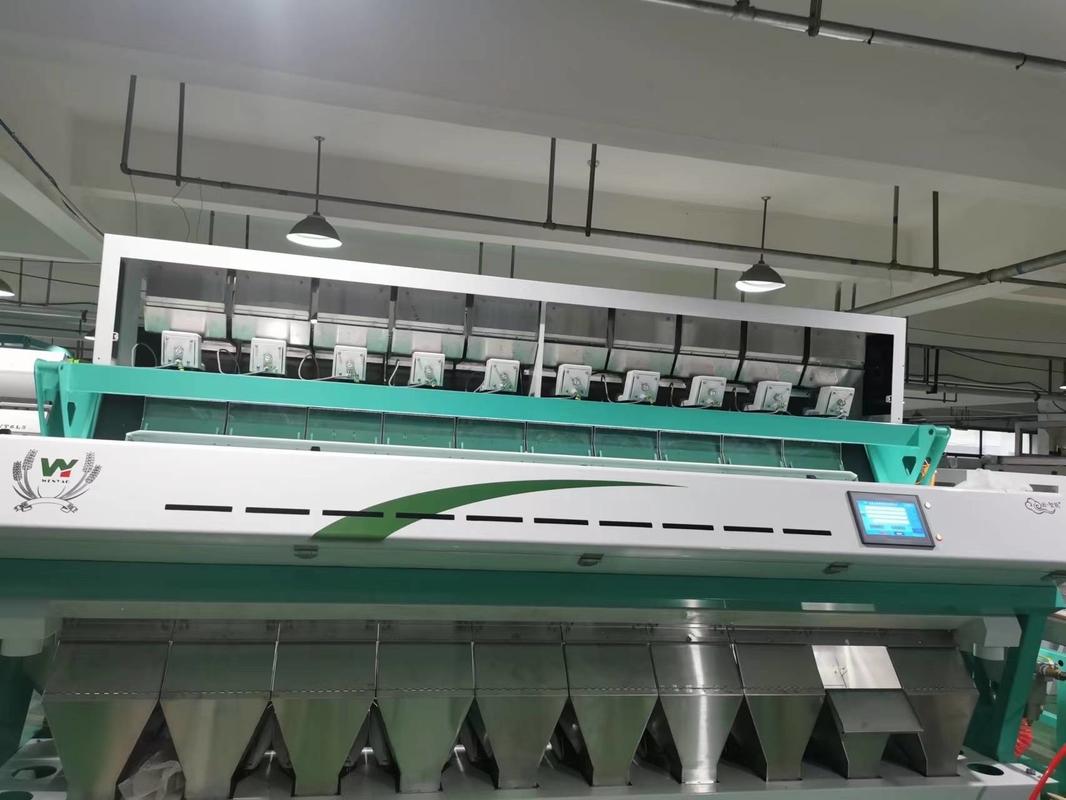

Customer's Site :



Stable Quality Watermelon Seeds CCD Color Sorter Machine Grain Color Sorting Machine 2

Stable Quality Watermelon Seeds CCD Color Sorter Machine Grain Color Sorting Machine 3

Stable Quality Watermelon Seeds CCD Color Sorter Machine Grain Color Sorting Machine 4










Why choosing Wenyao

1,Advanced image acquisition system
color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.

2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.

3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.

4,High quality solenoid valve(ejector)
color sorters are equipped with high quality solenoid valve.The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.For the different sizes and characteristics of material particle, NAGE optical sorters use the solenoid valve of different sizes.

5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.

6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.



Rice: white/black/red/yellow/barley rice

Wheat: buckwheat/quinoa/oatmeal

Corn: corn particles/white corn/ ellowcorn/black corn

Beans: soybeans/mungbeans/red beans/broad beans

Nuts: peanuts/cashew nuts/walnut meat/pine nuts Dry food: dry onion/ raisins/dried chilli

Seeds: sunflower seeds/ rice seeds/ vegetable seeds

Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag
