Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYB4
Contact Us
Video

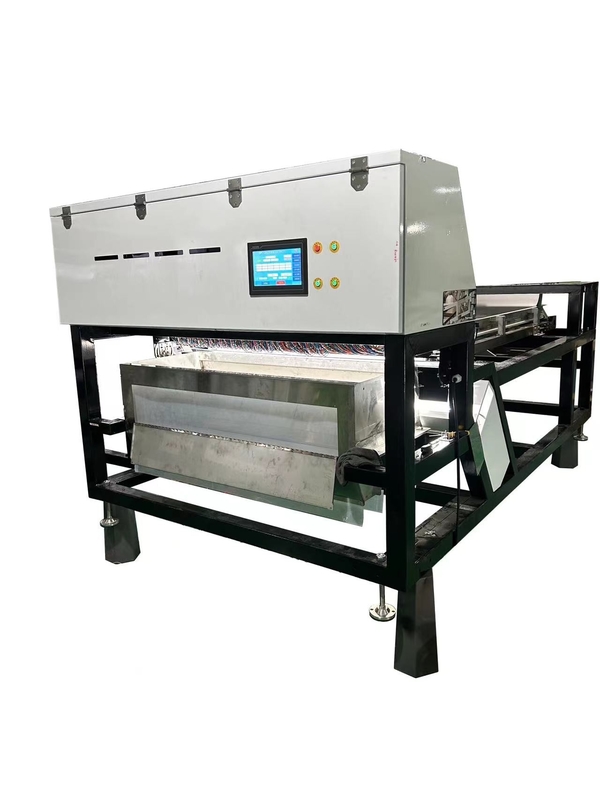

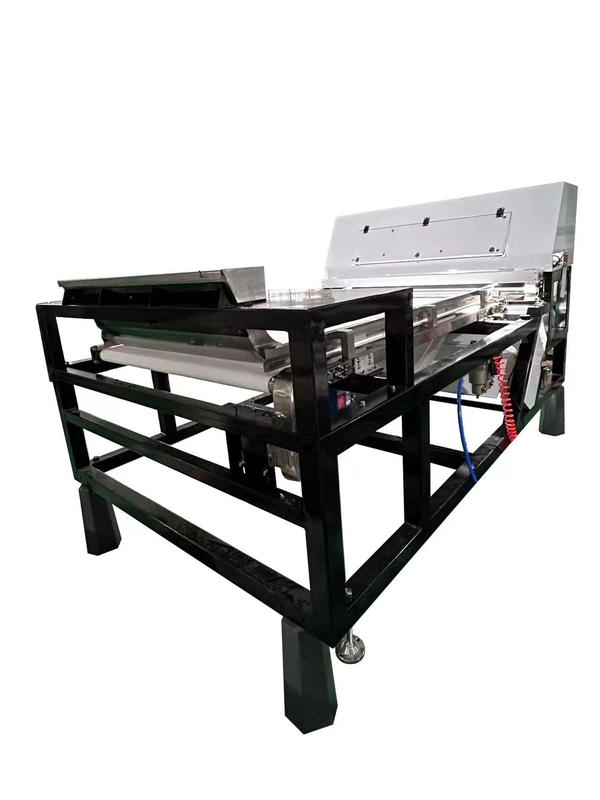

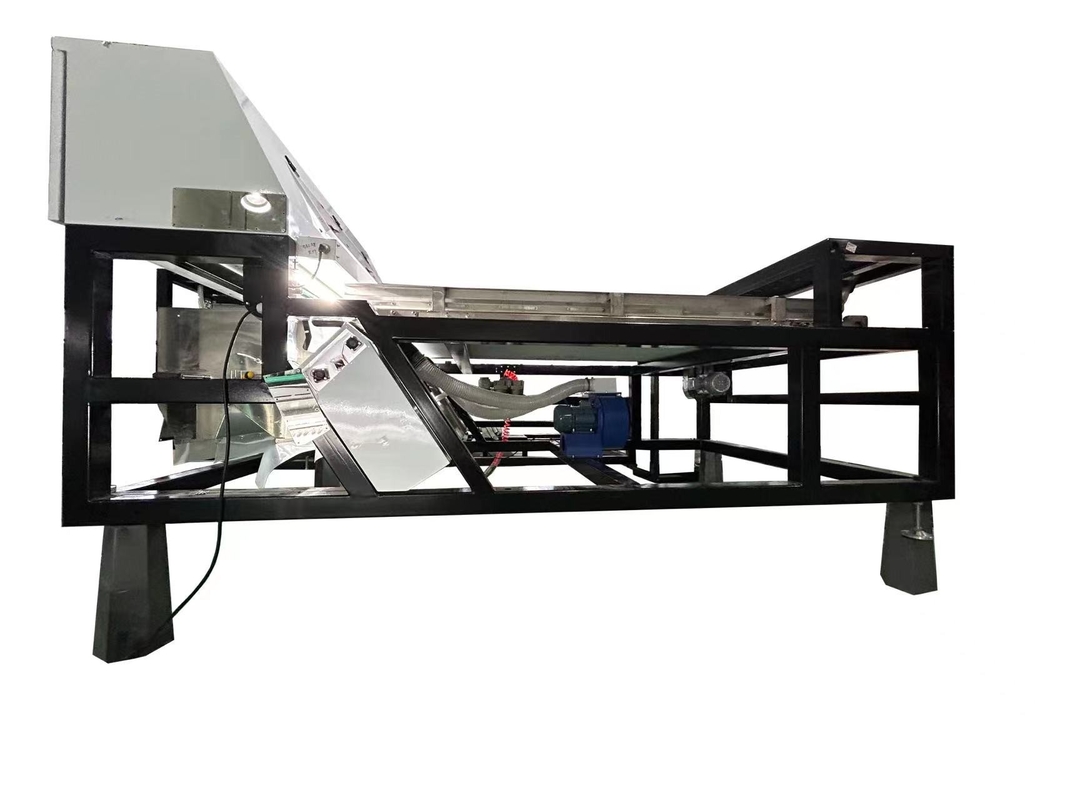

Multi-Fuction Coffee Cherry Olive Garlic Color Sorter Machine
CCD Color Sorter Machine
Among them, the photoelectric large bean color sorter is a popular style in the past few years. It is an ordinary photoelectric sensor. At present, the CCD sensor large bean color sorter is the most used in the market, and the maximum resolution is 5400 pixels. Speed line scan CCD
The difference between the photoelectric color sorter and the CCD color sorter lies in the sensor. Because the CCD color sorter uses a high-definition CCD color sorting lens, the color sorting accuracy is improved from 2 square millimeters of the photoelectric color sorter to 0.040. 08 square millimeters, the color sorting accuracy is improved, and the CCD output color sorter is also greatly improved compared with ordinary photoelectric color sorters.
| MODEL | WYB4 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 4.5kw |
| Power Voltage | 180-240V/50Hz/60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 1-2.4M3/Min |
| Weight | 1400kg |
| Diamension(L*W*H) | 3173*1914*1420mm |
Color Sorting Machine Working priciple:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Feature:
1) High resolution full color camera 5400 CCD sensor. High definition industrial lens.
2) Human-computer interaction. Image Capture. Holographic Imaging. One-key automation. Automatic System Check.
3) Sorting master. High quality ejector.Intelligent lighting source. Target orientation.
4) Identification expert. Size identification. Texture identification. Shape identification. Edge identification. Sorting accuracy
infinitely close to 100%.
5) System Guard. Intelligent algorithm.Automatic rectification. Targeted dedusting.
Packing and delivery:
Our custom's site:
Our service:
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing for free support.
* View our Factory.
After-Sales Service:
* Video indication about machine installment and operation;
* Training how to install the machine, training how to use the machine for free.
* Engineers available to service machinery overseas.
* 7*24 online service hot-line.
* Life-long service for net cost spare parts.
How can a color sorter benefit your business?
Multi-Functional
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.
High Efficiency
Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
Frequently Asked :
Questions:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
Two years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipment, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
By videos or by remote control or local service or engineers could go abroad when required.
5. Will you accept L/C as payment?
L/C ,T/T both OK.
6. Will you test machine before delivery ?
Yes , we will test carefully before delivery ,and save parameters in the machine .
Package :
