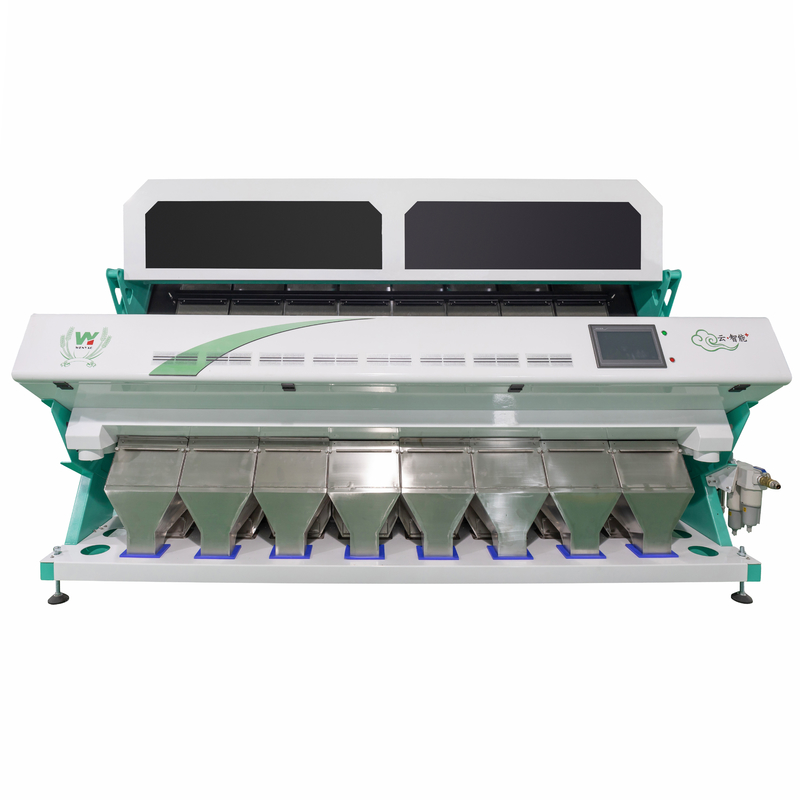

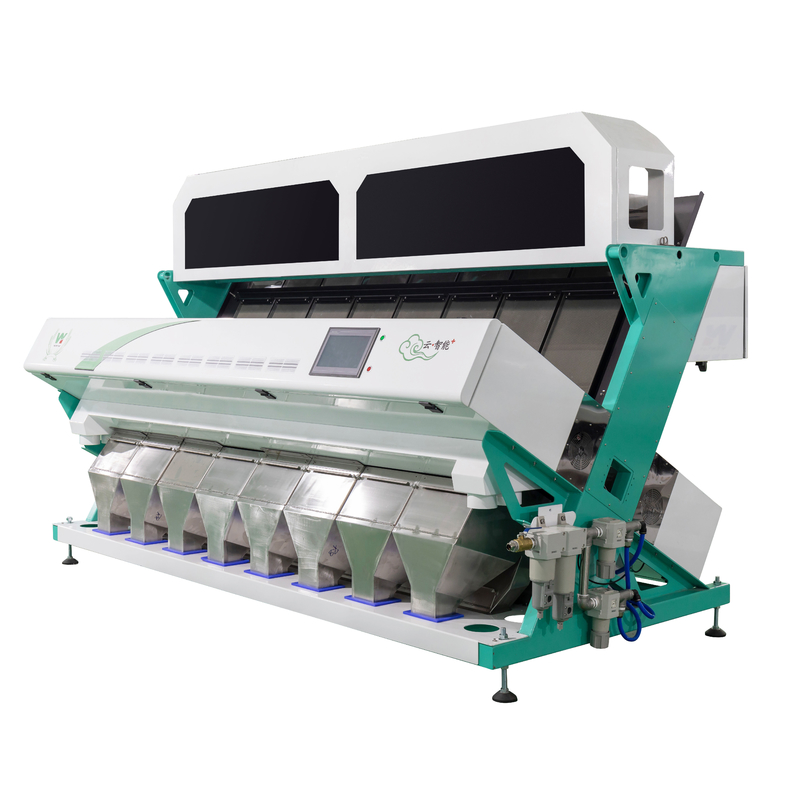

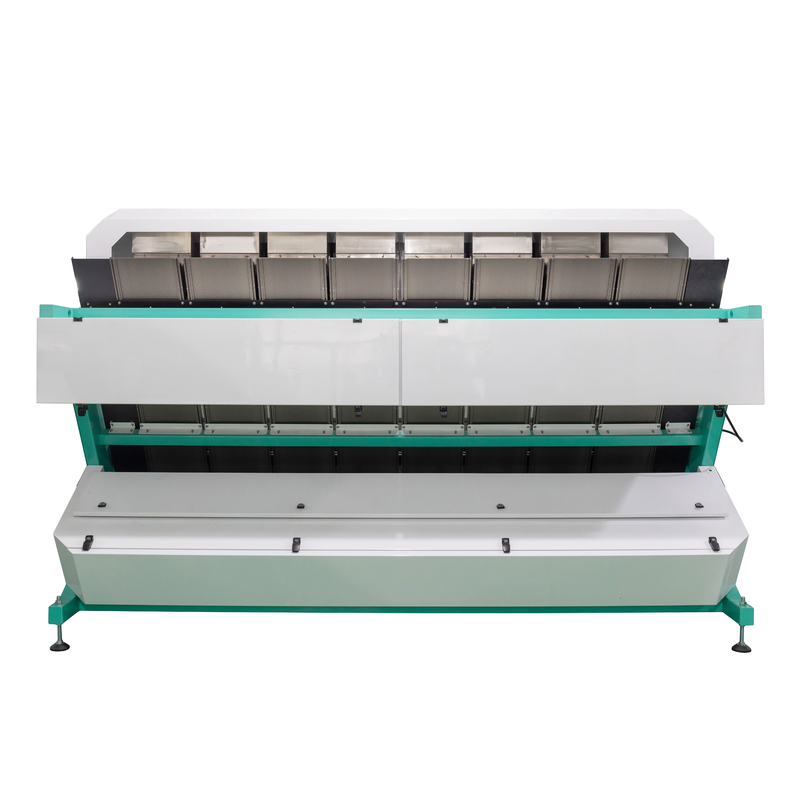

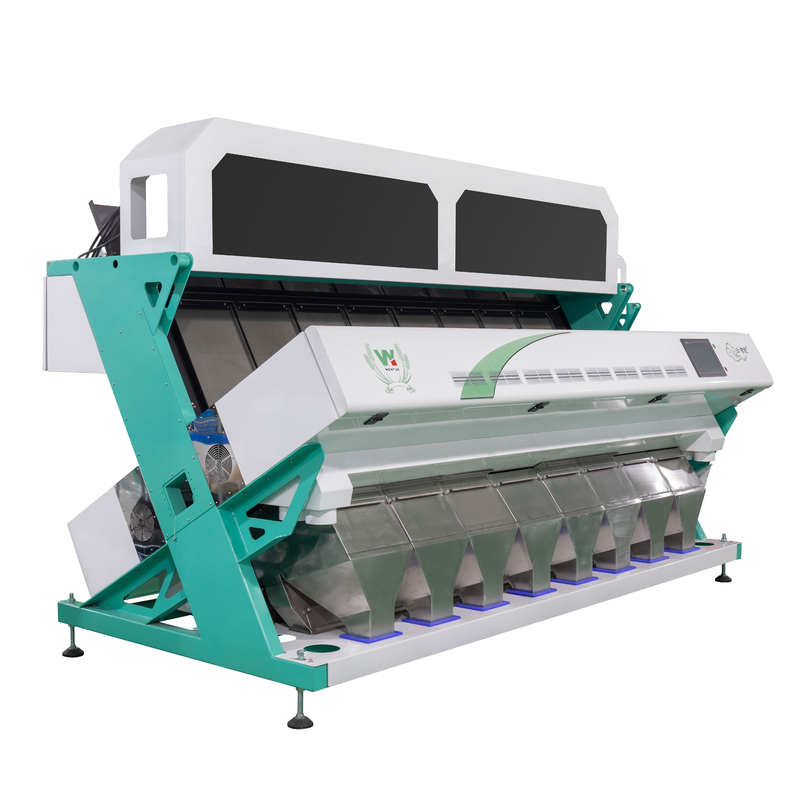

High Speed Sorting Chia Seed Color Sorter Machine China Seeds Color Sorting Machine
Advantage :
1, the introduction of LED Air Cooling
Solve the LED light source due to prolonged use of high temperature, short life and other issues, ensuring constant LED light source durable.
2, the unique suction ventilation system
You can remove dust and other raw materials in the ethereal substance, to ensure that the lens identification, higher color sorting accuracy.
3, the image acquisition system
Full-color high-definition CCD camera image acquisition system, the material (RGB) red, green, and blue color information to obtain a comprehensive, small depth to identify and elaborate common color sorter can not choose other impurities.
4, the operating system
Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.
5, the image processing system
International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide “color selection + shape selected” function for different materials, a variety of modes set free.
High Resolution Intelligent Metal Copper Aluminium Scrap CCD Optical Sensor Color Sorting Machine
Color sorter work principle:
Sorting Performance
Technical Parameter:
| MODEL | WYCS8-512 |
| Chutes(channels) | 8(512) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥30:1 |
| Output(T/h) | ≥2 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 5 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 2000-4000 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 3010*1545*1860 |
| Weight(kgs) | 1500 |
| Package | Plywood case |
| Package Size mm | 3165*1680*2042 |
From Customer's Site :
Recommended Applications:
Rice
Wheat
Peanuts
Seeds
Grains
Beans and Pulses
grain color sorter, as an intelligent machine, can sort sesame seed, mustard seed, wheat, quinoa and etc. Wenyao small size grain color sorter always provides customers with intelligent, professional and comprehensive sorting solutions. By introducing innovative online detection technology to the small size grain processing industry, Wenyao will lead the industry into a new and smart era.
Why choosing Wenyao
1,Advanced image acquisition system
Wenyao color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.
2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.
3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.
4,High quality solenoid valve(ejector)
Wenyao color sorters are equipped with high quality solenoid valve.The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.For the different sizes and characteristics of material particle, Wenyao optical sorters use the solenoid valve of different sizes.
5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.
6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
