Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS1-64
Contact Us
Multifunction Color Sorting Machine For Pistachio Almond Pistachio Color Sorter Machine
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1 Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1527*1543mm |
Color Sorter Machine
Ultra-high response speed, fast and accurate rejection, bring out beyond imagination!
1.Near-end WIFI intelligent connection, opening a new era of unattended operation
2.Remote cloud interaction, big data platform for the equipment to provide uninterrupted cloud computing, intelligent matching of the best color selection scheme Unique multi-spectrum confocal technology, accurate rejection of grain mold.
3.Powerful selection of yellow, anti-selection function, to further enhance the belt out at the same time saving 20% of gas
4.The first LED parallel spotlight technology, high brightness, low heat generation, power saving and long life.
5.The first intelligent ash cleaning control technology, large equipment, greater output
Examples of color sorting:
Latest full-color imaging and analysis technology,high-speed processing,accurate identification.
High level AI self-learning function,one-key automation,user friendly interface,easy operation.
Multi-function,multi-purpose,widely used for rice,grain ,beans,plastic,chinese herbals etc.
Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
High and specification ensures high stability with high sorting accuracy small carry over and low energy.
Clound computing,massive dated analysis,multi-camera identification,high accuracy.
Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.
The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.
It consists of feeding hopper, vibrating feeder, and chute. Raw material enters into vibrating feeder from the feeding hopper, then automatically be arranged into a series of continuous current line by vibration and a guiding mechanism, and fall to a detection zone at a constant speed after being accelerated by the chute. to ensure that the material is clearly present in the sorting cabinet. The feeding system also controls the capacity of the color sorting machine in addition to the function of providing raw material.T through the adjustment of the vibration amount of the feed hopper flow control plate and the vibration hopper, the control of the output of the color sorter per unit time can be realized.
The Optoelectronic system is the core part of the color sorting machine, which is mainly composed of an LED light source, background plate, CCD lens, and related auxiliary devices. The light source provides stable uniform illumination of the material being tested and the background plate. The CCD lens converts the reflected light of the material to be measured into an electrical signal in the detection area. The background plate provides a reference signal for the electronic control system.
The sorting system consists of accessories such as sorting cabinet, nozzles, air supply. The nozzle has been experimentally proved that the nozzle spacing and the number of nozzles are one of the key factors affecting the accuracy of the color sorter.
The cleaning system consists of cylinders, glass cleaning brushes, and other components. Because some items come with the dust and other impurities that may adhere to the glass during the color sorting process. Once the dust and impurities are attached to the window glass, the optoelectronic system may cause chain-chain problems such as false detection, which will affect the color sorting accuracy and carryover ratio.
The large-screen wide-angle touch screen is used to preset multiple color sorting modes for customers. And establish a friendly man-machine interface, according to the specific conditions of materials convenient and quick to achieve adjustment.
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, beans, seeds, grains, raisins, plastic, ore, peanut, pepper, and other color sorting field.
Compared with manual sorting, a color sorter machine is labor saving, time saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the customers.If needful, our engineers will help the customers to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine,air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.

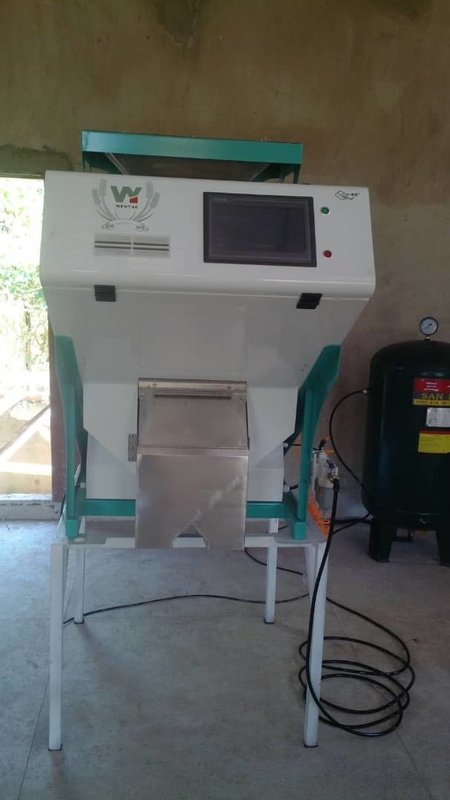

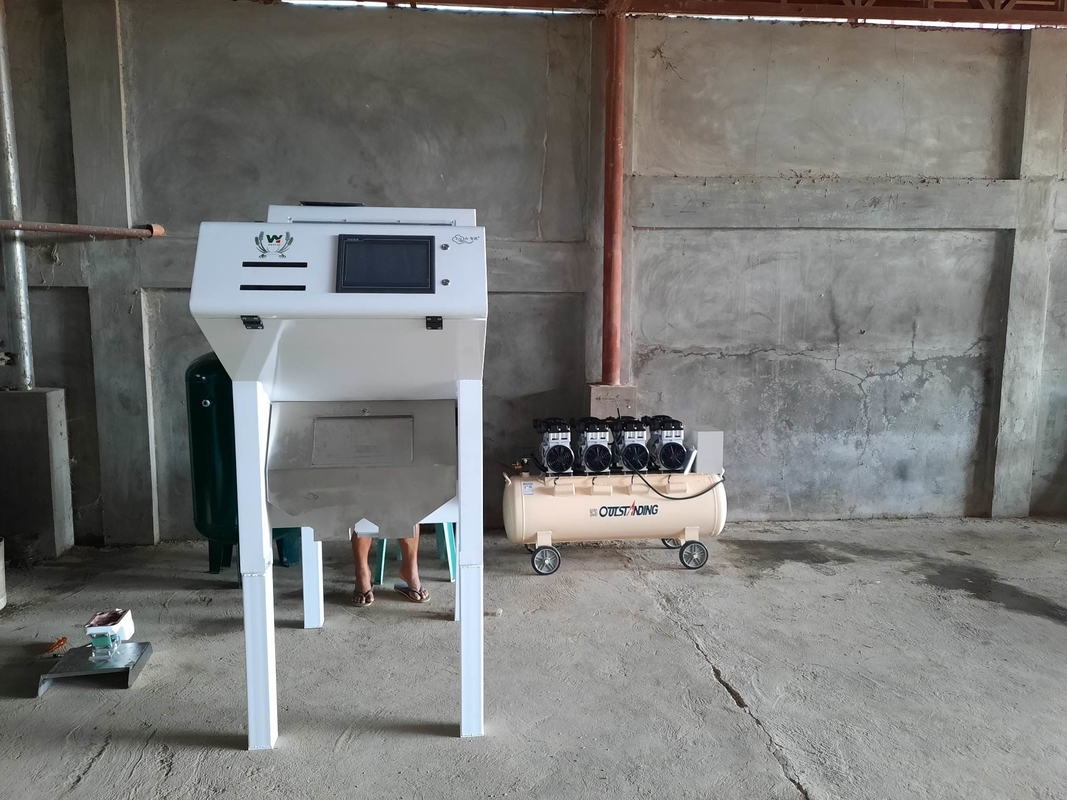

Customer's Site :
