Place of Origin:
China Mainland
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS3-192
Contact Us
Video
Video
| MODEL | WYCS3-192 |
| Chutes/Channels | 3/192 |
| Throughput(KG/h) | 3-5T/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.6kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <3M3/Min |
| Weight | 600kg |
| Diamension(L*W*H) | 1620*1535*1830mm |
1.Most advanced RGB 5400 pixel linear industry CCD camera.
2.America FPGA process chip.
3.Janpan Toshiba CCD sensor.
4.Ejectors: a.Janpan SMC ejector b.Italy Matrix ejector c.Metal ejector
5.Filter: a:Janpan SMC filter b:Janpan CKD filter c:Korea YSC filter
6.Power supply/source:Taiwan Meanwell more long lifetime
7.All LED light source,more long lifetime and save power
8.12-inch Flexem Humanized touch screen

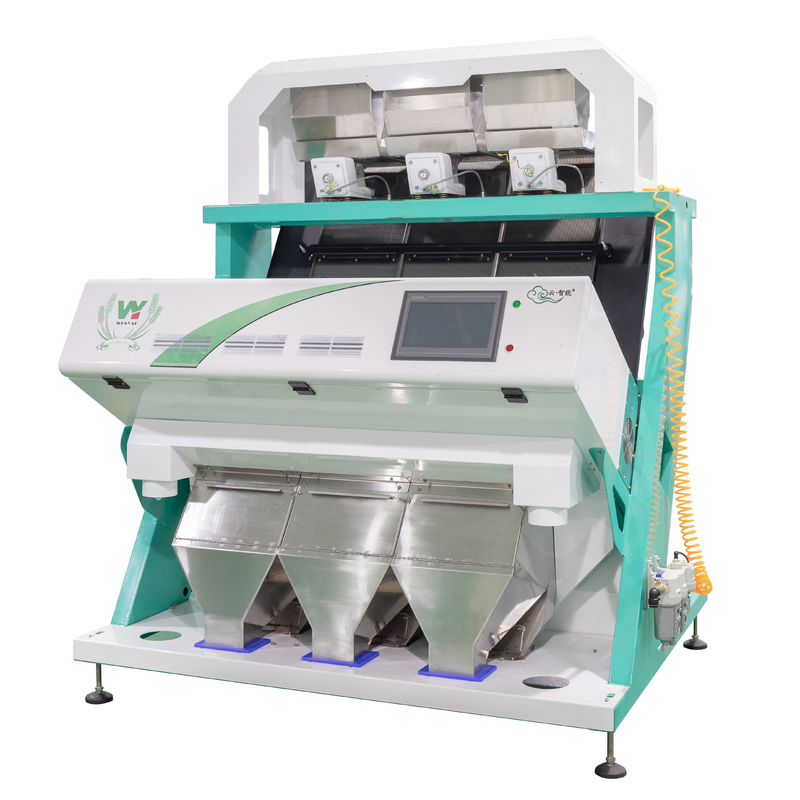

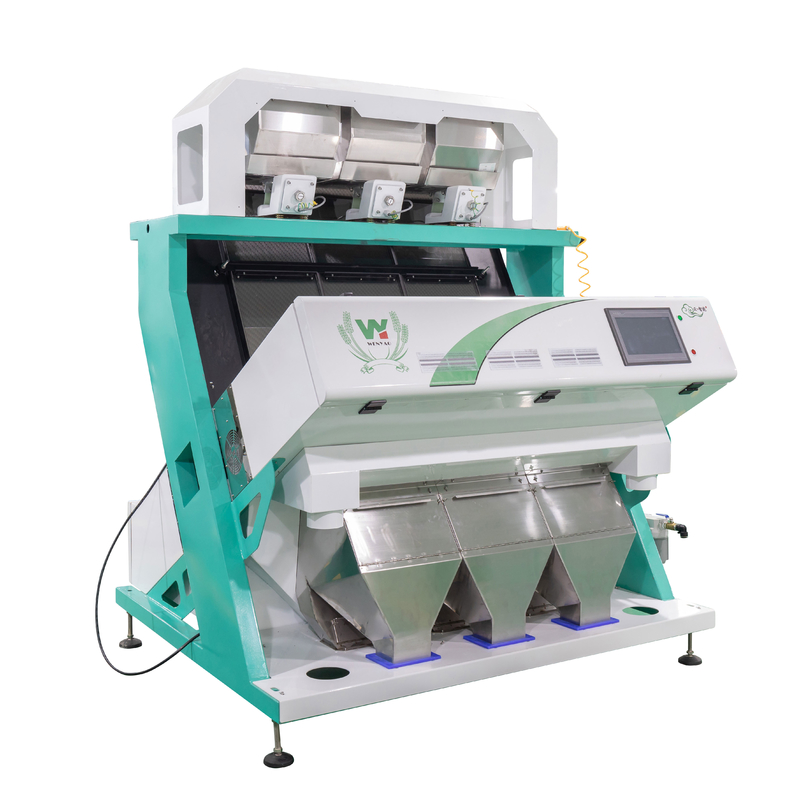

COLOR SORTER also named color sorting machine, color sorter machine or optical sorting machine, it is according to the color differences of granular materials, using high-resolution CCD optical sensor to drive solenoid valve to sorting different granular materials.Color Sorter has been widely used in many industry in the world. Such as agricultural products, food and mineral industries, The most common use is sorting rice, wheat, corn, peanut, a variety of beans, seeds, tea, herbs, dried vegetables, recycled plastic, salt and ore etc
Product Description and Machine Working Principle:

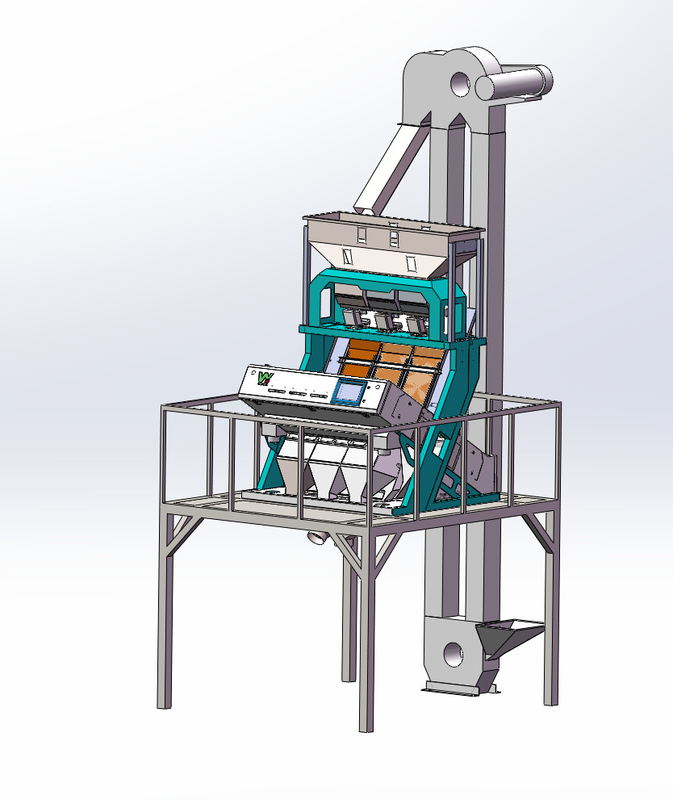

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamb
Our engineer: Free direct the installation and operation of the equipments and train operators for customer.
Our machine: Safe and reliable, efficient and energy saving, easy operating.
Our delivery: In time with English operating instruction program.
Our after-sale service: Timely, professionally
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.
