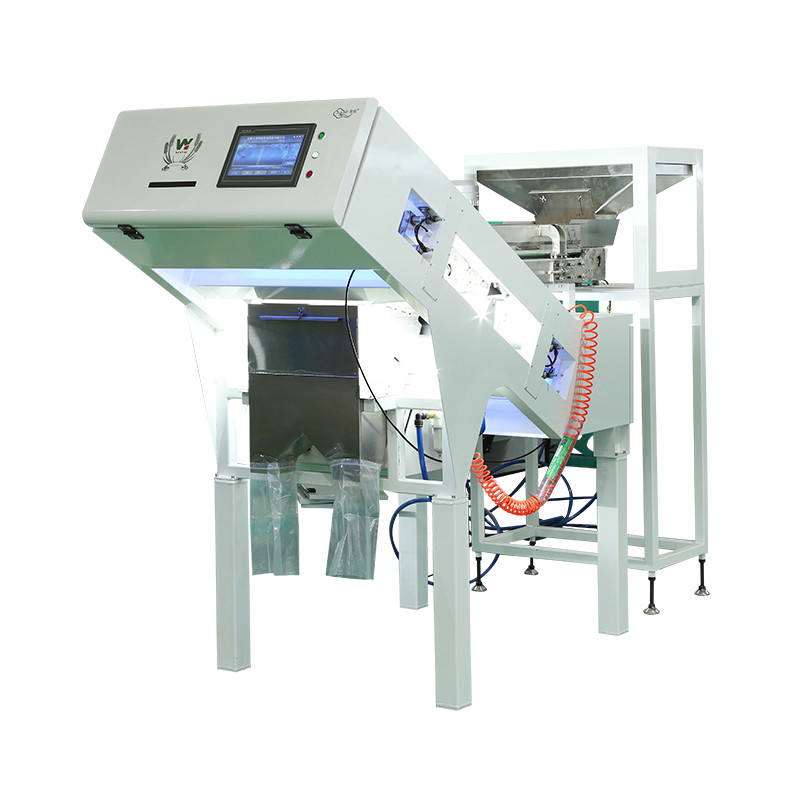

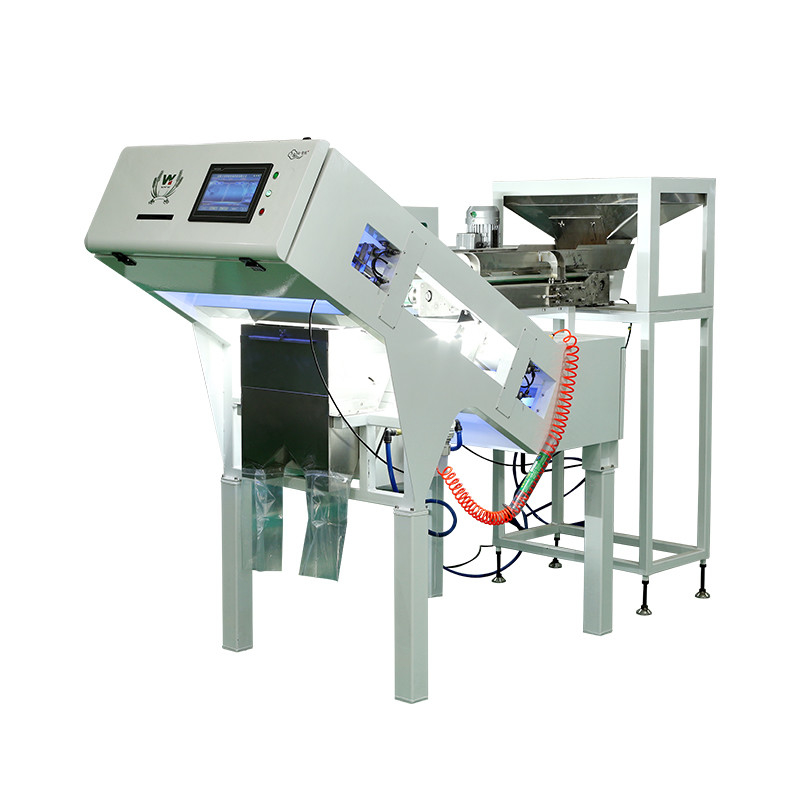

SUPERB BELT COLOR SORTER FOR SORTING CHERRY COFFEE
Technical Parameters:
| MODEL | WYCSB1 MINI |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1 Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 2150*1050*1420mm |
A color sorter is an automated machine that sorts objects based on their color. It uses a combination of sensors and mechanical components to identify and separate objects of different colors. Color sorters are commonly used in industries such as textiles, plastics, and food processing to quickly and accurately sort products by color. They can also be used in manufacturing and packaging to streamline the production process and improve product quality. Color sorters are often used in conjunction with other quality control measures to ensure that only products of the desired color are packaged and shipped.
Examples of color sorting:
Intelligent Holographic Flash Camera Compatible with CMOS or CCD image sensors
Flexible switch between visible lens or infrared lens35K high-speed imaging +350 million pixel ultra-clear resolution
LED light source
Flexible Light Source Configuration: For different raw
material, the Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information
acquisition. The LED illumination system has the cooling system, so the system has the long lifetime, low energy consumption and high performance.
Dedicated Image Processing Algorithm According to the characteristics of material, use the shape and color combination algorithm; For materials with
complex colors, the machine sorts materials more directly and accurately by using HSV-changed color space sorting method.
High-Quality Solenoid Valve
Use High-quality,high-frequency,long service life ejecter, super low air consumption guaranteed the biggest capacity, excellent rejection output. For the different sizes and
characteristics of material particle, use the solenoid valve of different sizes.
Simple Operation
Simple optical system design, precise automatic correction system, combined with the well-designed human-
machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
Color sorting machine is a kind of high-precision machine equipment for color sorting and classification of objects. It can detect and distinguish the colors of objects through optical sensors and image processing technology, and then separate them out. Color sorters are widely used in food processing, agricultural products, plastics, recycled waste, ores and seeds, providing many important advantages for production and processing processes.
Color sorters play an important role in the production and processing industry. It improves production efficiency, product quality and sustainable development, and helps enterprises achieve a win-win situation of scientific and technological innovation and economic benefits. With the continuous development of science and technology, the functions and application fields of color sorters will continue to expand, and make greater contributions to industrial upgrading and sustainable development.
The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.
Latest UHD imaging and analysis technology,high-speed processing,accurate identification
*High level AI self-learning function,one-key automation,user friendly interface,easy operation
*Multi-function,multi-purpose,widely used for rice ,cereal,plastic,chinese medicine
*High and specification ensures high stability,with high sorting accuracy,small carry over and low energy
*Small and portable,saving space and delivery cost,small machine but super function
*Imported ejectors,much smaller air consumption,and much better carry over,esp.good for small materials like quinoa,chia,sesame....
*Option:Remote control by smart terminals like cellphone ,can realize the off-site controls of the accuracy,production capacity and halt of the machines
*Simple Effective-installation&Start-up&Commissioning services;remote teaching and guidance via live video online through internet to worldwide
The Optoelectronic system is the core part of the color sorting machine, which is mainly composed of an LED light source, background plate, CCD lens, and related auxiliary devices. The light source provides stable uniform illumination of the material being tested and the background plate. The CCD lens converts the reflected light of the material to be measured into an electrical signal in the detection area. The background plate provides a reference signal for the electronic control system.
The sorting system consists of accessories such as sorting cabinet, nozzles, air supply. The nozzle has been experimentally proved that the nozzle spacing and the number of nozzles are one of the key factors affecting the accuracy of the color sorter.
The cleaning system consists of cylinders, glass cleaning brushes, and other components. Because some items come with the dust and other impurities that may adhere to the glass during the color sorting process. Once the dust and impurities are attached to the window glass, the optoelectronic system may cause chain-chain problems such as false detection, which will affect the color sorting accuracy and carryover ratio.
The large-screen wide-angle touch screen is used to preset multiple color sorting modes for customers. And establish a friendly man-machine interface, according to the specific conditions of materials convenient and quick to achieve adjustment.
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, beans, seeds, grains, raisins, plastic, ore, peanut, pepper, and other color sorting field.
Compared with manual sorting, a color sorter machine is labor saving, time saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the customers.If needful, our engineers will help the customers to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine,air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
