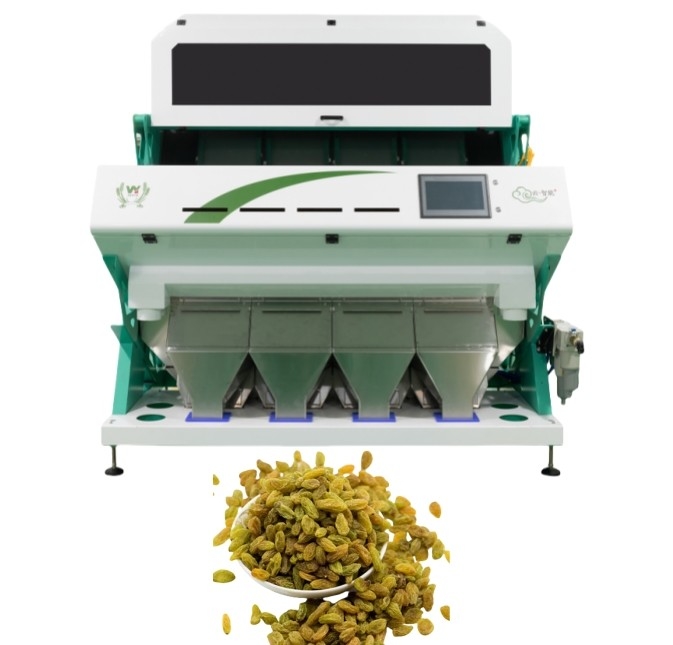

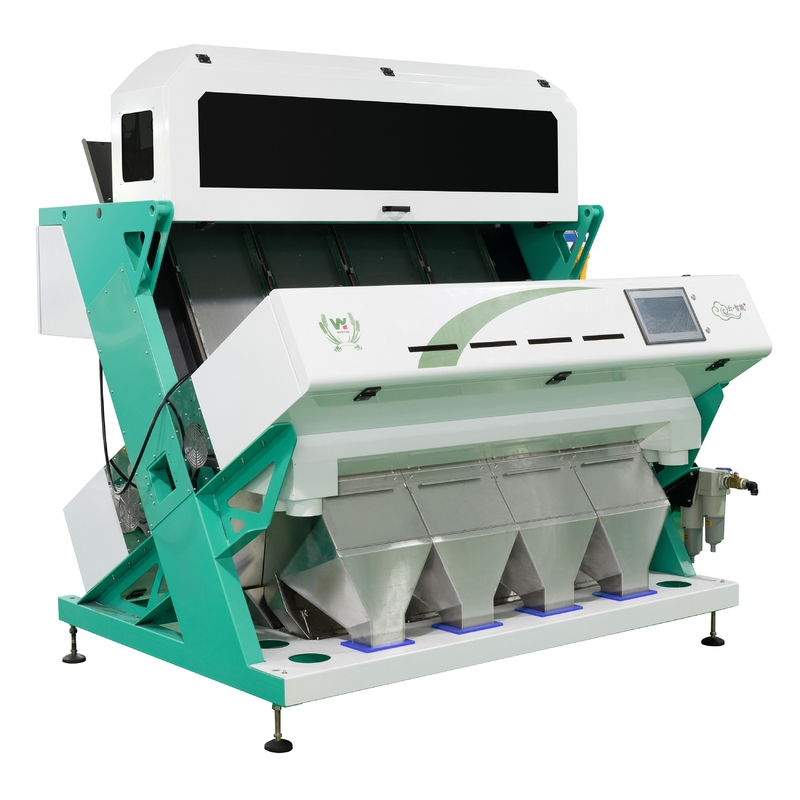

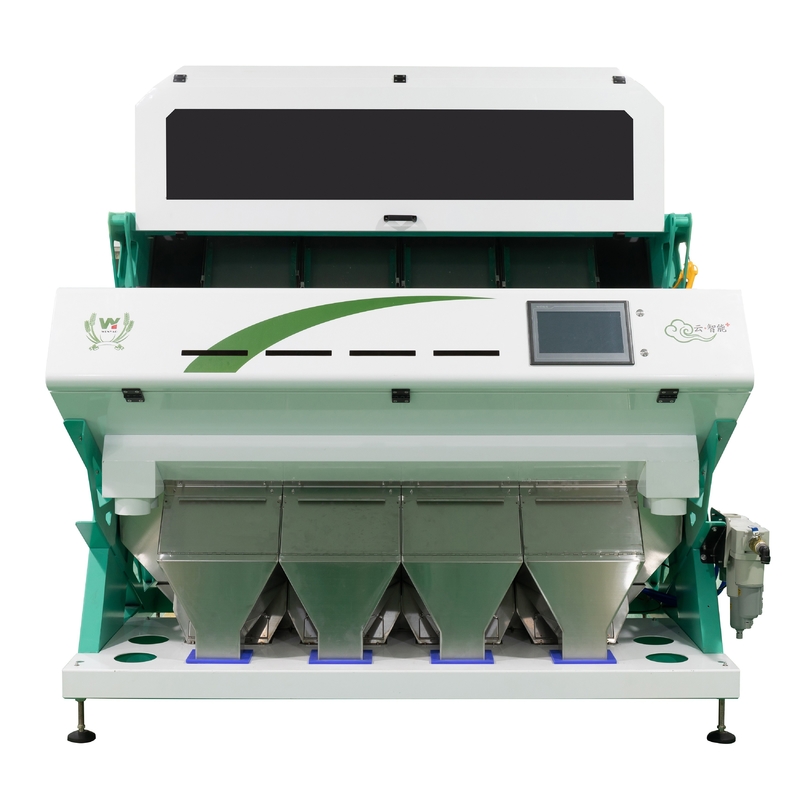

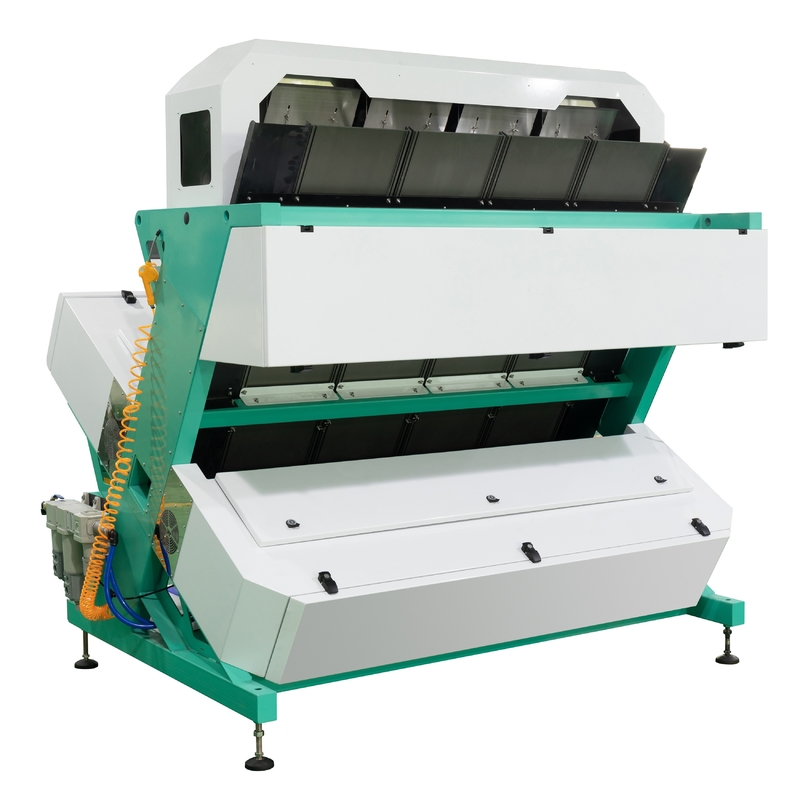

Remote Control 256 Channels Popular Color Sorter Machine With Newest Software
Color sorter is a machine which used for separating the bad grain from the raw material through the color difference between the rejection and finished products. Wenyao color sorter adopting 5400 pixel high resolution CCD camera, advanced image analysis and processing technology, long-life high-efficiency easy maintenance ejector as well as excellent optical system.
Color Sorter Technical Parameters
| MODEL |
WYCS4-256 |
| Chutes/Channels |
4/640 |
| Throughput(t/h) |
4-5t/h |
| Sorting Aaccuracy |
≥99.98% |
| Power |
2.0kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
2600-5000L/Min |
| Weight |
1800kg |
| Diamension(L*W*H) |
1855*1540*1852mm |
CCD color sorter machine core parts
FEATURES 1:
5400-pixel CCD camera makes sure that, it is able to recognze more accurately,analyze more quickly and sort more precisely
The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.
FEATURES 2:
Imported high-quality solenoid valves makes machines work more stably for longer time. The new type of high frequency valve allows low consumption of electricity , high durability,and easy maintenance.
FEATURES 3:
Humanized touch panel,which is easier to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly. It is also able to support for multiple languages, preservation and switching of multiple color selection mode
FEATURES 4:
American ultra-high speed FPGA processor, 3D intelligent identification technology.Intelligent system with self-learning,self-operating Powerful image processing algorithm can accurately identify the color and shape of materials.
Separate your spice in an effecient way!!!
Sucessful cases
Package and delivery
Certificate
After sales service
We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
