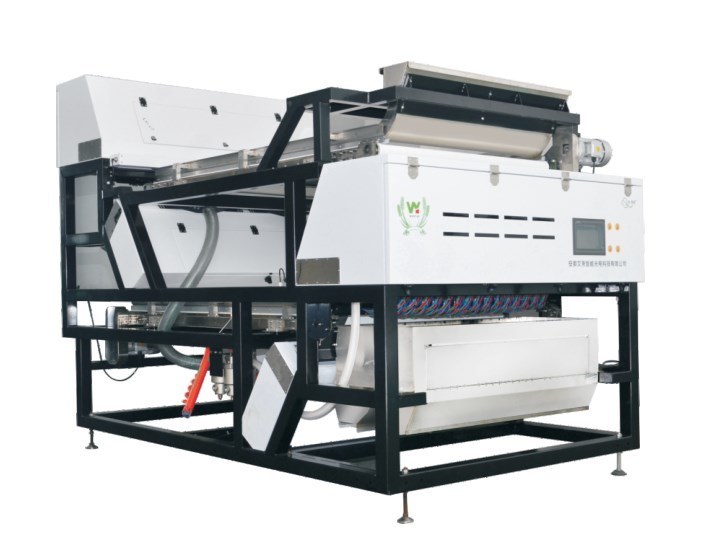

Name: WENYAO High-Speed & Reliable Belt Glass Sorter Machine For Precision Recycling Glass Sorting Machine
Brand: Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd
SKU: WYDB4
Price: 14200.00 USD
Availability: InStock

Home > Products > Glass Sorting Machine >

WENYAO High-Speed & Reliable Belt Glass Sorter Machine For Precision Recycling Glass Sorting Machine

RGB CCD Camera Color Sorter

Chute Type Color Sorter

Recycled Glass Color Sorter

Place of Origin:

Anhui China

Brand Name:

WENYAO

Certification:

ISO9001 & CE

Model Number:

WYDB4

Request A Quote

WENYAO High-Speed & Reliable Belt Glass Sorter Machine For Precision Recycling Glass Sorting Machine

Product Details

Condition:

New

MOQ:

1PCS

Accuracy(%):

≥99.99%

Function:

Vegetable Color Sorting And Separating

After-sales Service:

Wifi Remote And Engineers Overseas Available

Dimension:

1855*1540*1850 Millimeter

Warranty:

2 Years

Sensor:

Japan Toshiba CCD Sensor

Filter:

CKD & SMC

Weight:

900kg

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

FOB USD 14200.00/SET

Packaging Details

Plywood case Packing size(L*W*H):2550X1720X2050mm

Delivery Time

7-15 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

230 PCS Per Month

Color Sorting Machine Plastic Glass Ore Metal Color Sorter Intelligent Colour Sorting Machine

Get Best Price

Video

Double-Layer Broken Glass Bottles CCD Colour Sorter Glass Color Sorter Sorting Machine

Get Best Price

Video

High Accuracy Quartz Stone Color Sorter Intelligent Brown Green Glass Cullet Color Separator With Nir Sensor

Get Best Price

Video

Double-Layer Belt Conveyor CCD Colour Sorter Broken Glass Bottles Color Sorter Separator Glass Color Sorter Sorting Mach

Get Best Price

+86--13855135585

service@wycolorsorter.com

+86-551-67699185

Contact Now

Product Description

WENYAO High-Speed & Reliable Belt Glass Sorter Machine For Precision Recycling Glass Sorting Machine

For the removal of contaminants from glass cullet (ceramics, stones, porcelain, metals) and for the separation of glass by wenyao color sorting system, the all-in-one optical sorter for glass recycling applications. It’s solid-state design (no moving parts!) and can be used for average particle sizes between about ¼” and two inches (6-50mm).

To eliminate contaminants from glass cullet (ceramics, stones, porcelain, metals) and to separate glass by the Wenyao color sorting system, the all-in-one optical sorter for glass recycling applications is employed. It is applicable for average particle sizes ranging from 6 to 50mm.

WENYAO High-Speed & Reliable Belt Glass Sorter Machine For Precision Recycling Glass Sorting Machine 0

MODEL(Technical Parameters)	WYDB4
Channels	256
Output(kg/h) Depend on raw material impurity	1600-4000
Sorting Accuracy(%)	≥99.9
Carryover Rate(bad:good)	≥13:1
Power Supply(KW)	7.8
Work Air Pressure(Mpa)	0.2-0.3
Air Consumption(L/min)	1000-2400
Voltage	180-240V/50Hz
Weight(kg)	1800
Diamension/Size (LWH)mm	343519102360
Package	Wooden Case

Parts Detailed Photo

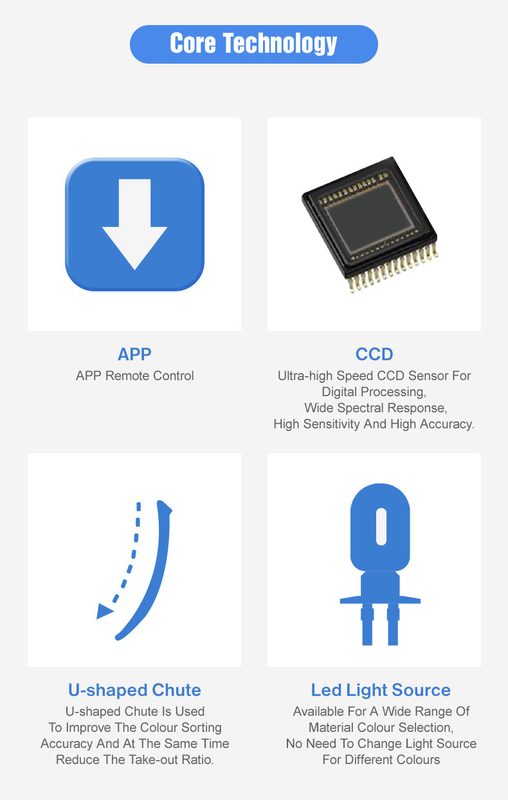

CCD Camera

*5340 linear CCD camera with high precision allows high definition identification and high speed sorting.

*Most advanced ccd technology can sort materials accurately.

*Toshiba CCD sensor

*American process chip

Self-developed Solenoid Valve

*WenYao mechanical ejector with scientific design can make machine work stably for long time.

*A new type of high frequency valve allows for low consumption of electricity , long life reaction speed, high durability, easy

maintenance, and improved color accuracy.

Adjustable LED Light Source

*Configuration of the special light source allows for ten million kinds of color sorting with a fully adjustable colourspectrum.

*Materials can be sorted according to different configurations which is suitable for various sizes of sorting, no need to change

the light source.

Intelligent computing integrated circuit

With unparalleled high performance and low abilityconsumption, the industry's highest Bandwidth andintegration, processing ability increased 5 times.

Humanized interface

*Humanized touch panel, easy to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.*High quality FPGA processing technology, defects of 0.04mm2 can be detected.

Packing & Delivery

*Process visualization

From manufacturing to shipment, all processes can be supervised in real time according to your requirements.

And we welcome you to visit our factory in person.

In customer site

In Our Europe Customer Working Plant.

In Our Southeast Asia Customer Working Plant.



In Our South Asia Customer Working Plant.

Our Factory&Customer

ANHUI WENYAO Optoelectronic Technology Co., Ltd founded in 2007, which combined with design, manufacture and selling. We manufacture high-tech optical color sorter machine of sorting wheat, rice, tea, melon seeds, grains, coarse cereals, nuts, dried vegetables, dried seafood, plastics, ores, ect. Supply the service to customers from Asia, the Middle East European, South Africa and African markets.

Through countless cooperation and OEM service with international partners, ANHUI WENYAO has streamlined the proper procedures and processes and opened up professional techniques that are ahead of the color sorting field and delivered the highest-quality products to every corner of the world.

Through countless hardwork, we serve customers from all over the world. We have high reputation in domestic, Africa, Middle-East, South-East Asia market. Expect you to join our big family. We will never let you down.

FAQ

1. How to use the machine?

We will supply the Installation instructions or video and our engineers will train your operators.

2. How long about the guarantee period?
One year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?

Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.

4. Is oversea service available?
Yes, our engineers could go abroad when required.

5.How to calculate Installation personnel cost?

On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.
