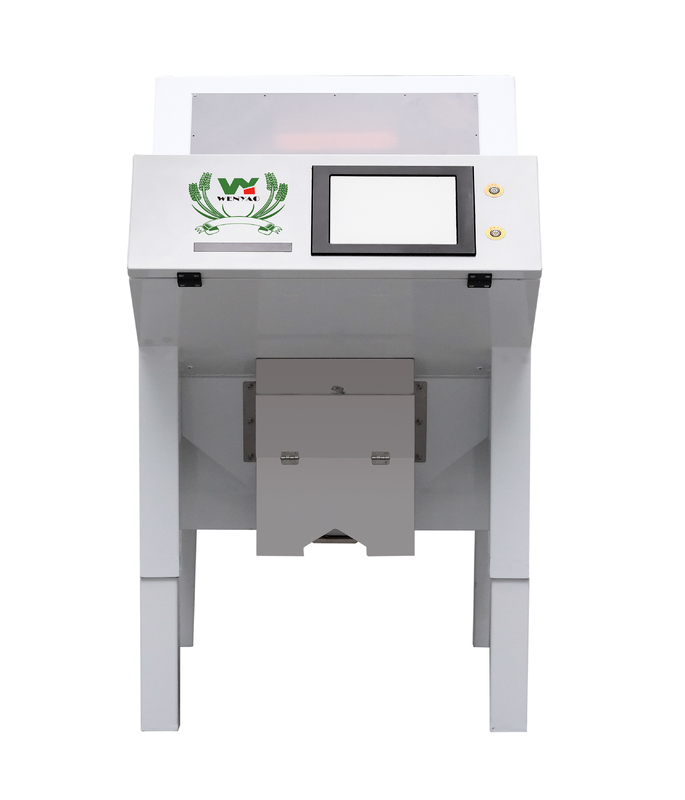

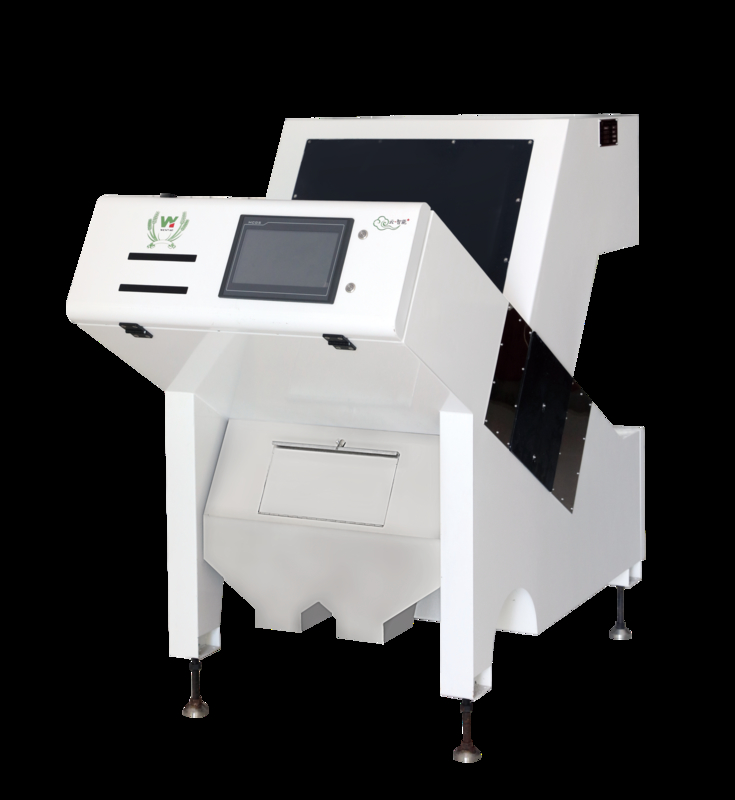

High Sorting Capacity Wenyao Intelligent Cardamom Color Sorter Machine
Technical Parameters:
| MODEL |
WYCS1-64 |
| Chutes/Channels |
1/64 |
| Throughput(t/h) |
1 Ton /H |
| Sorting Aaccuracy |
≥99.99% |
| Power |
0.75kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<0.6M3/Min |
| Weight |
280kg |
| Diamension(L*W*H) |
780*1527*1543mm |
Product Details:
1. Ejectors of SMC from Japan
2.Cameras of Nikon from Japan
3. Lenses of Toshiba from Japan

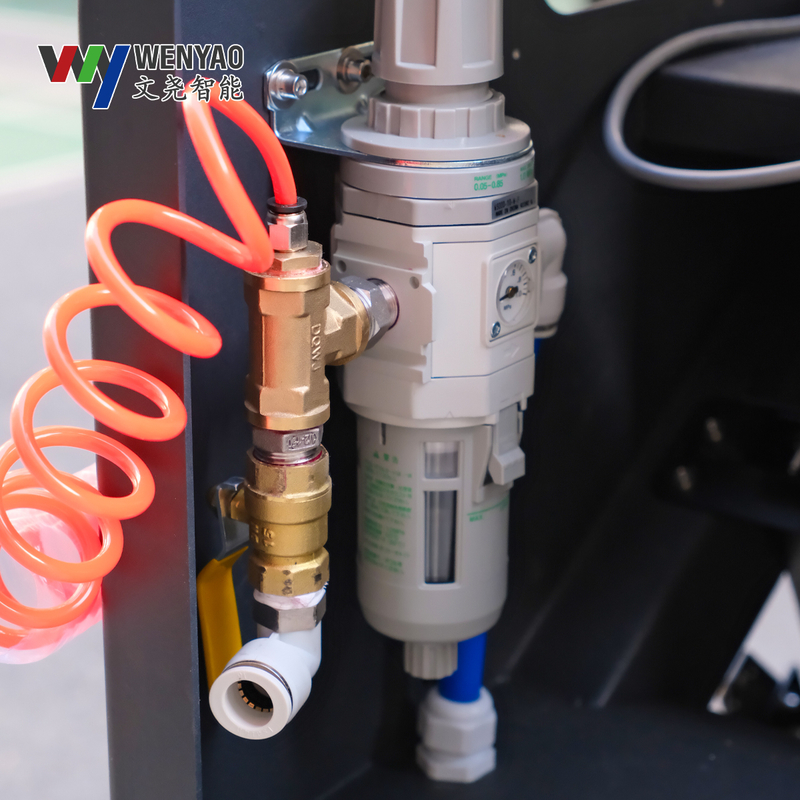

4. Air filter of SMC or FESTO from Japan/Germany
5. Led light source of OSRAM from Germany
6. Arm of Samsung from South Korea
7. PCB boards of sunrise from china
8. Rod less cylinder of SMC/FESTO from Japan/Germar
9. Touch screen of MSGS from China
Examples of color sorting:
The powerful AI algorithm ensures the processing speed and accuracy of the wenyao color sorter, which is dependent on the ultra-high-speed camera to capture images and achieve a lower takeout ratio. Real-time monitoring and feedback capabilities help customers quickly identify and resolve any potential issues. This helps improve efficiency and reduce downtime in production.
Advanced Image Acquisition
With 162 million pixel, super high-resolution full color Toshiba CCD camera, subtlest defect as 0.01mm*mm can be sorted out(Bad spot value can be adjusted according to different materials and customers' requirement, to meet different batch and impurities rate sorting requirement)
Remote Control and One-Key Operation
Brand new anti-rust UV chute
Wide-angle design, anti-rust and non-toxic&harmless aluminium alloy, in line with international safety standards, ensure he smooth slide of the material, and reduce waste, and achieve the maximization of capacity. Customizable according to different materials.
Intelligent Imagine Processing System
High identification, scan speed up to 30,000 times per second real time big data analysis can fullfil all complex algorithms.

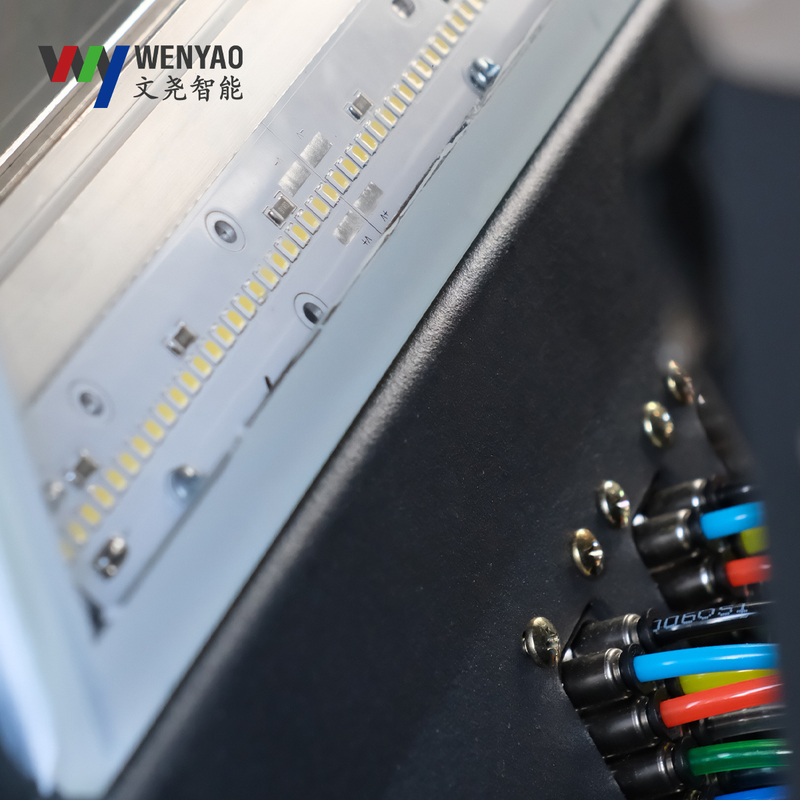

Germany High Luminance LED Light
Shadowless LED lighting system, with high luminance, long life source, precise detectioin,stable
frequency,which ensure high sorting accuracy
High-speed electromagnetic ejector
Imported metal magnetic levitated egector,passed 2 billion times pressure test. Durable,fast response,precise detection, improve accuracy, and reduce energy consumption.
High-speed transmission system
Ethernet access system,data standardization,gigabit ethernet,high-speed transmission system, high-tech support TP/TCP protocol, Internet remote maintenance function. It can process configuration management, performance management,fault management and security management.
Flexible mode wide application
Different materials, design the corresponding pattern. One machine can achieve different materials' screening.(Meet the color sorting requirement of hundreds of millions products such as agricultural products, industrial products and other special materials)
