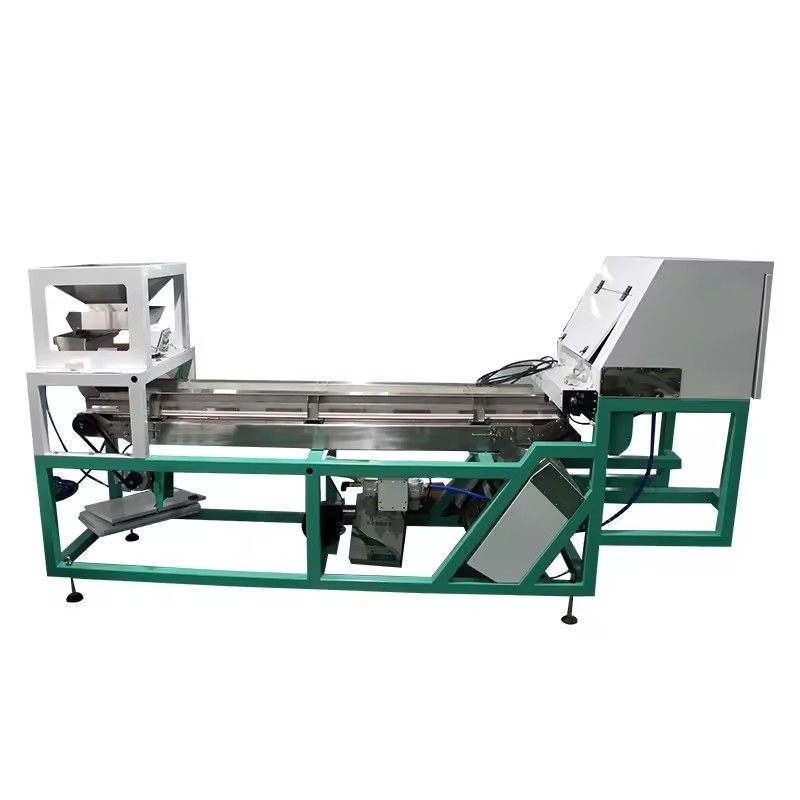

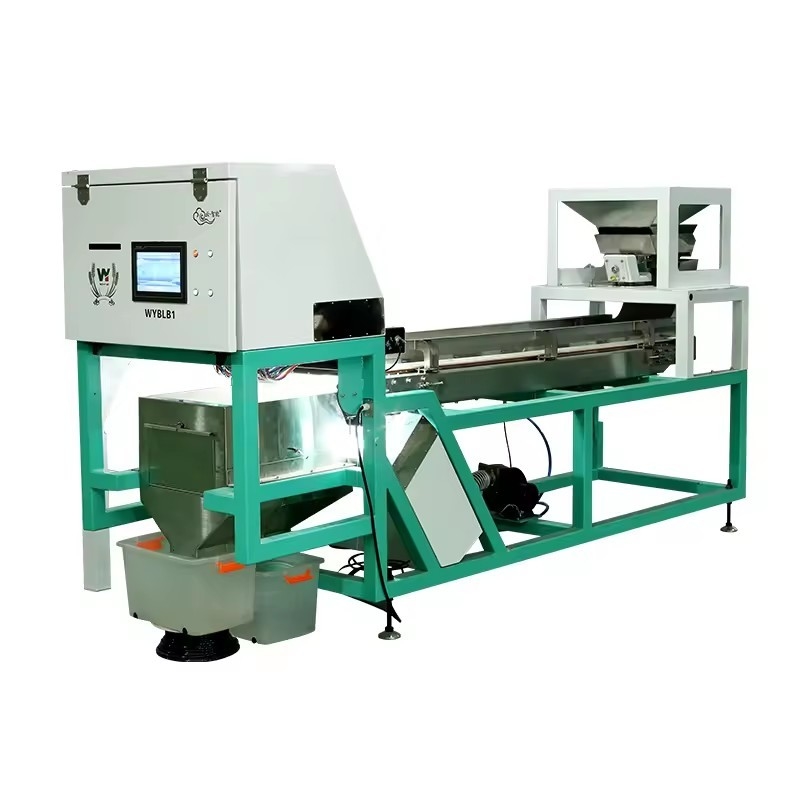

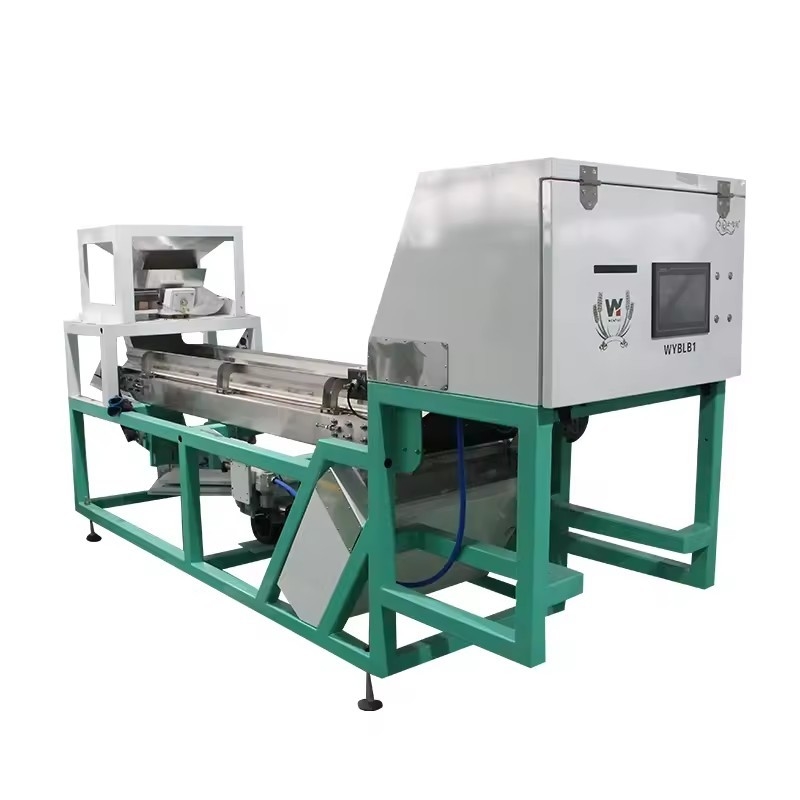

Wenyao Intelligent Chili Pepper Color Sorting Machine Manufacturer red pepper seeds color sorting machine
| Details as following |
| MODEL |
WYB1 |
| Chutes(channels) |
1(64) |
| Sorting accuracy(%) |
≥99.9 |
| Carryover rate (bad:good) |
≥12:1 |
| Output(kg/h) |
2000 |
| Voltage |
180-240V/50Hz/60hz |
| Power supply(kw) |
0.9 |
| Work Air Pressure(Mpa) |
0.2-0.3 |
| Air consumption(L/min) |
200-600 |
| Air supply(Mpa) |
0.6--0.8 |
| Dimension(L*W*H) mm |
3189*860*1485 |
| Weight(kgs) |
560 |
| Package |
plywood case |
| Package Size mm |
3400*1100*1670 |
1. Comprehensive Technical Description
A Pepper Seed Color Sorter is a precision optoelectronic machine designed to classify and purify pepper seeds based on their chromatic attributes. It is a critical piece of equipment for seed processing plants and agricultural breeders to ensure high germination rates and genetic purity by removing off-color, defective, or diseased seeds.
The system operates on the following principle:
1. Feeding & Alignment: Bulk pepper seeds are elevated and fed onto a vibrating chute or belt, which spreads them into a single, uniform layer to ensure each seed can be individually inspected.
2. Optical Scanning: The aligned seeds free-fall past a high-resolution, high-speed optical scanning chamber. This chamber is equipped with:
· Full-Spectrum LED Lights: Provide consistent, glare-free illumination to highlight color differences.
· Advanced CCD/CMOS Cameras: Capture detailed images of each seed from multiple angles.
3. Real-Time Data Processing: A sophisticated computer processing unit analyzes the captured images in milliseconds. It compares the color, shape, and sometimes spectral characteristics of each seed against user-defined acceptance parameters. Seeds that are discolored, moldy, immature, or mechanically damaged are identified as rejects.
4. Precision Ejection: Upon identification, the system sends a signal to an array of high-speed, solenoid-controlled air jets. These jets emit a precise puff of compressed air to knock the defective seed out of the product stream without physically touching it.
5. Separation & Collection: The ejected defective seeds are diverted into a reject channel, while the accepted, high-quality pepper seeds continue their natural trajectory into the "good product" collection hopper.
---
2. Key Features and Benefits for Pepper Seeds
· Enhanced Germination Rate: Removes immature (light green/yellow) and non-viable seeds, ensuring only mature, healthy seeds are packaged for sale.
· Disease Control: Identifies and ejects seeds with mold, fungus, or bacterial spotting (often appearing as black, brown, or white specks).
· Purity Assurance: Crucial for seed breeders to maintain varietal purity by removing seeds of different colors that may indicate a cross-breed or foreign variety.
· Quality Grading: Can be programmed to sort seeds into multiple quality grades based on color uniformity.
· High-Throughput: Processes large volumes of pepper seeds at high speeds (e.g., hundreds of kilograms per hour), replacing tedious and inconsistent manual sorting.
---
3. Example in a Sentence
"To guarantee a 99.5% purity rating for our new hybrid variety, we processed the entire batch through an advanced pepper seed color sorter, which effectively removed all mechanically damaged and discolored seeds."
---
4. Simplified Summary
A pepper seed color sorter is a machine that uses high-tech cameras and air blasts to automatically separate good, healthy pepper seeds from bad, discolored, or diseased ones. This ensures farmers and gardeners receive only the highest quality seeds for planting.
Examples of color sorting:
From Customer's Site:
Why Choose Wenyao Color Sorter?
1. Over 17 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, cooperate reseller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in hands.
