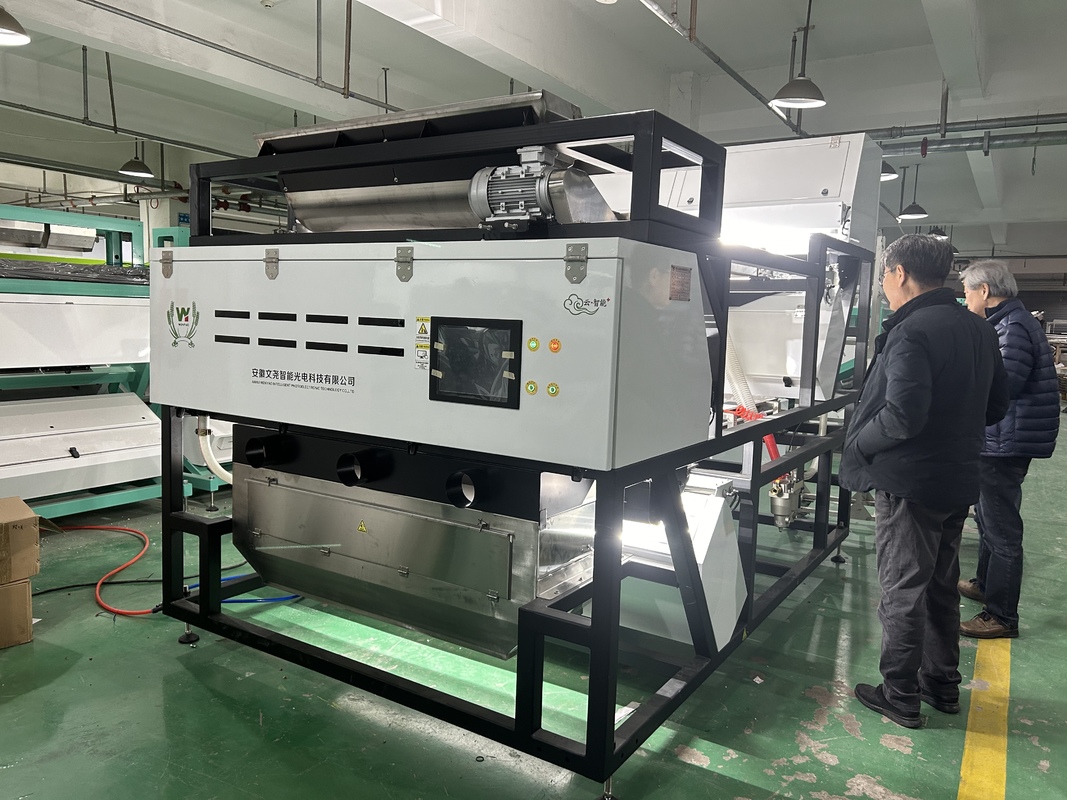

Optical WYDB4 Soapberry Color Sorting Machine for Soup Pods Color Separator Machine With High Sorting Capacity

Optical WYDB4 Soapberry Color Sorting Machine for Soup Pods Color Separator Machine With High Sorting Capacity

Do You Know Color Sorter Machine Working Flow?

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber

What is a CCD in a camera?

Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.

Color sorter is a machine used to separate objects or materials of different colors. It typically uses sensors and color-recognition technology to sort items based on their hue. Color sorters are commonly used in various industries, such as agriculture, food processing, and manufacturing, to efficiently separate and categorize materials by color. They can be manual or automated, with the latter using advanced algorithms and machine learning to optimize the sorting process. Color sorters can help improve productivity, reduce labor costs, and enhance product quality. They are also used in research and development applications.

CCD Camera

Japanese TOSHIBA 5340 line

ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.

LED system

World leading stable long lifetime LED light, customized LED solution accepted according to specific material.

Control Unit

Advanced Image Processing System, synchronized for multiple operations and sorting mode. Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.

Chute System

Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.

Ejector Valve

Italian new type of high frequency electromagnetic valve allows for accurate control of air flow power and direction with long lifetime.

Interface with Auto Testing

Self-developed auto diagnosis function with touching screen, automatically operate the testing of injector, pressure, camera, control board, background LED light and others when starting up.

Other Components

World class parts supplier, such as filter of Korea YSC and Japanese CKD. Premium quality with those famous global brands.

Sorting Performance:

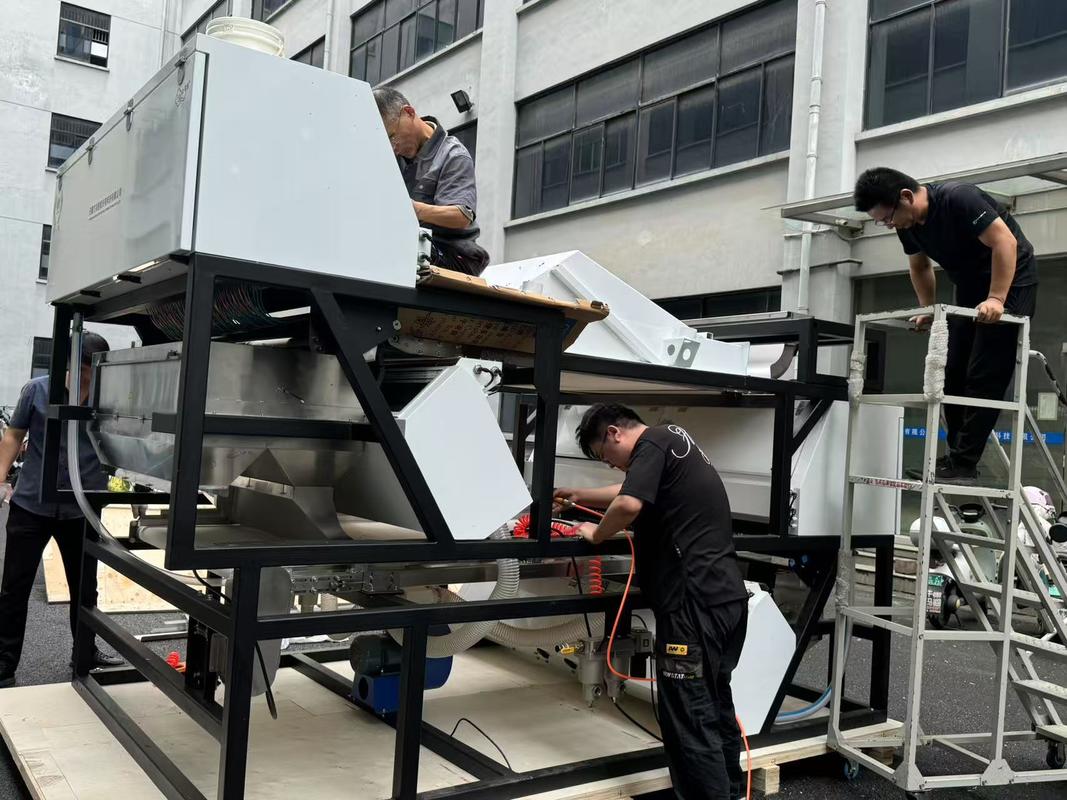

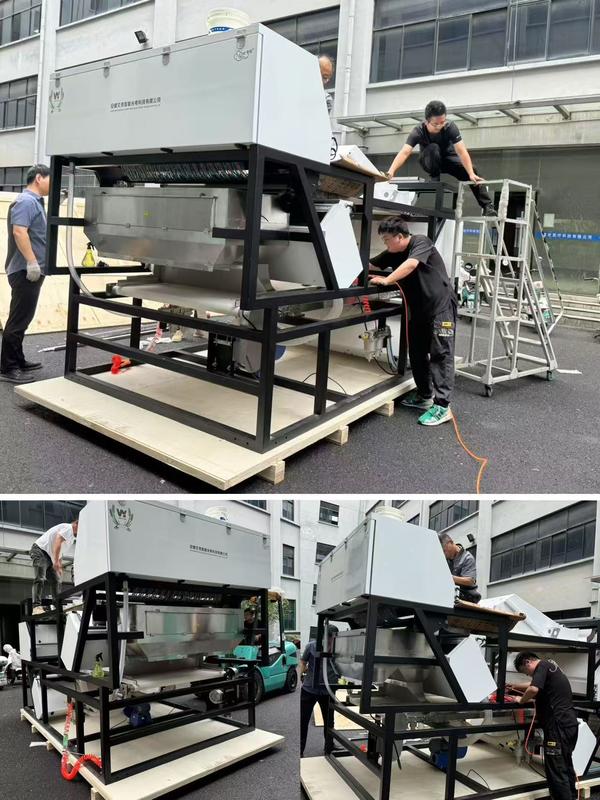

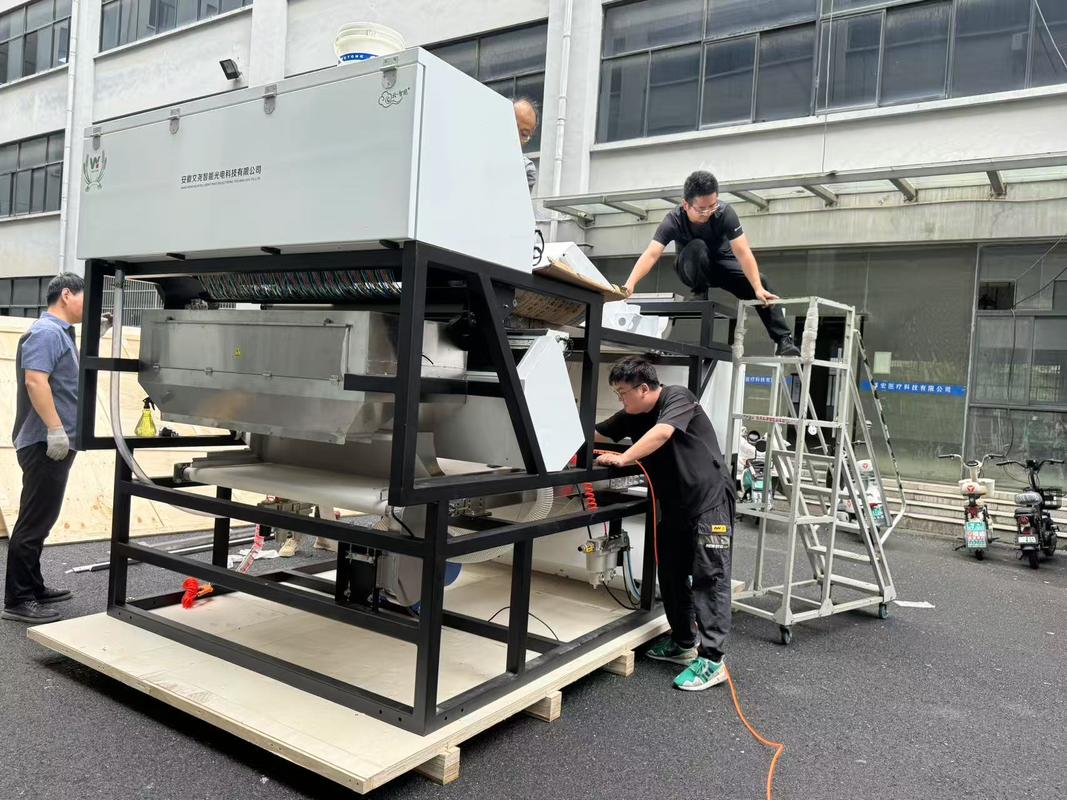

Packing and Delivery:

Key Conponents

CCD Camera
Japanese TOSHIBA 5340 line ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.

LED system
World leading stable long lifetime LED light, customized LED solution accepted according to specific material.

Control Unit
Advanced Image Processing System, synchronized for multiple operations and sorting mode. Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.

Chute System
Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.
