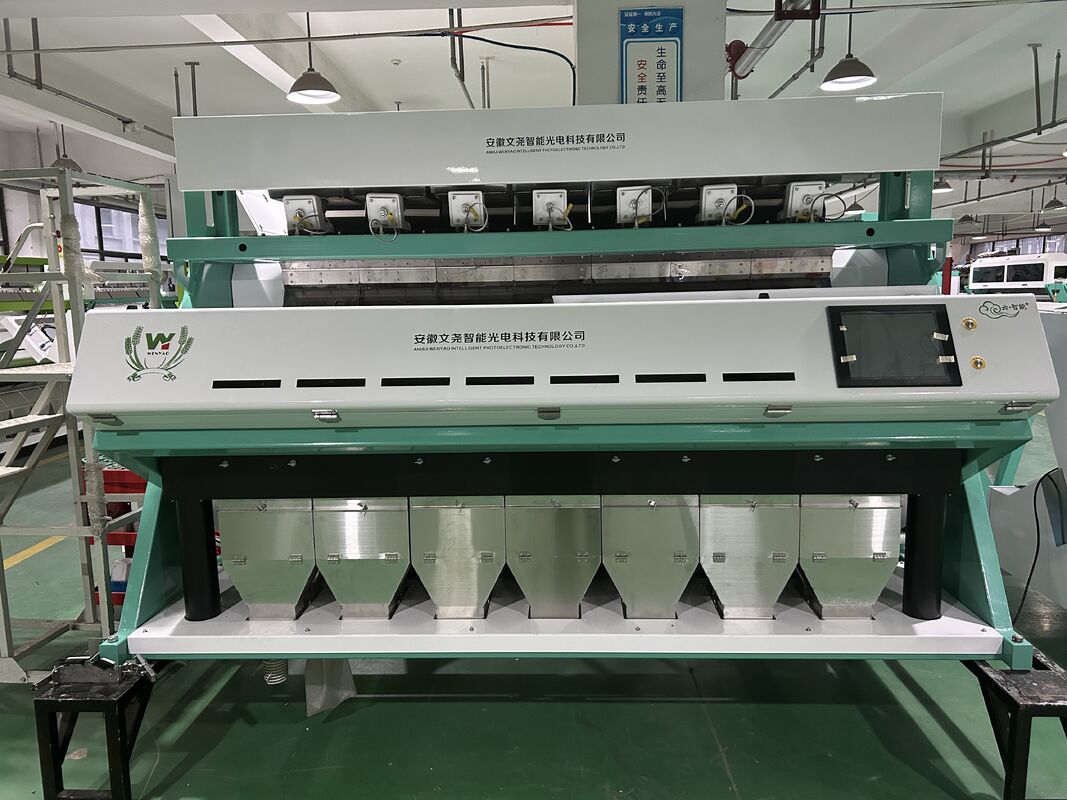

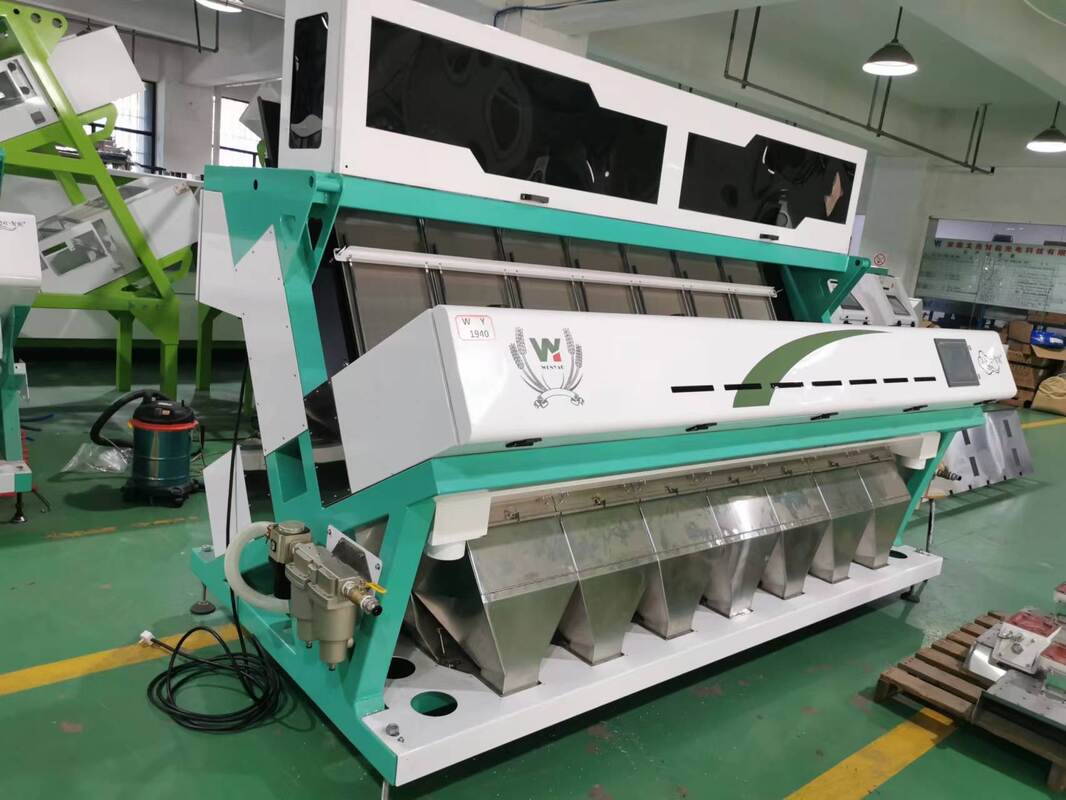

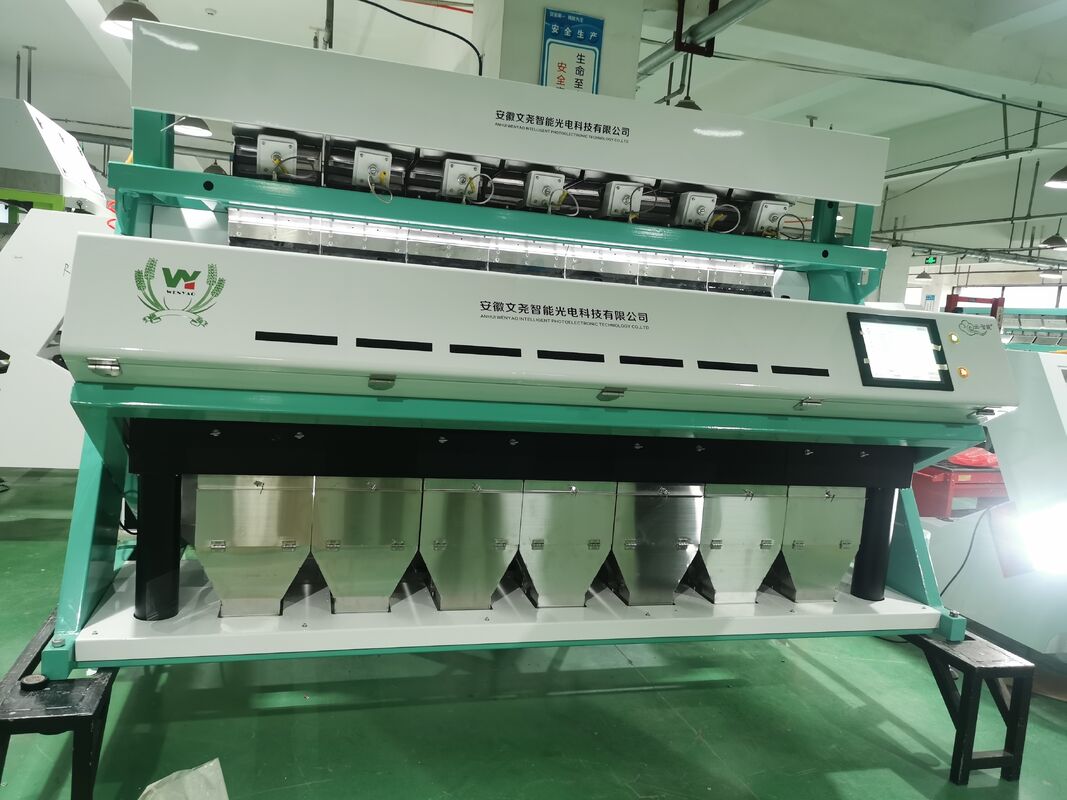

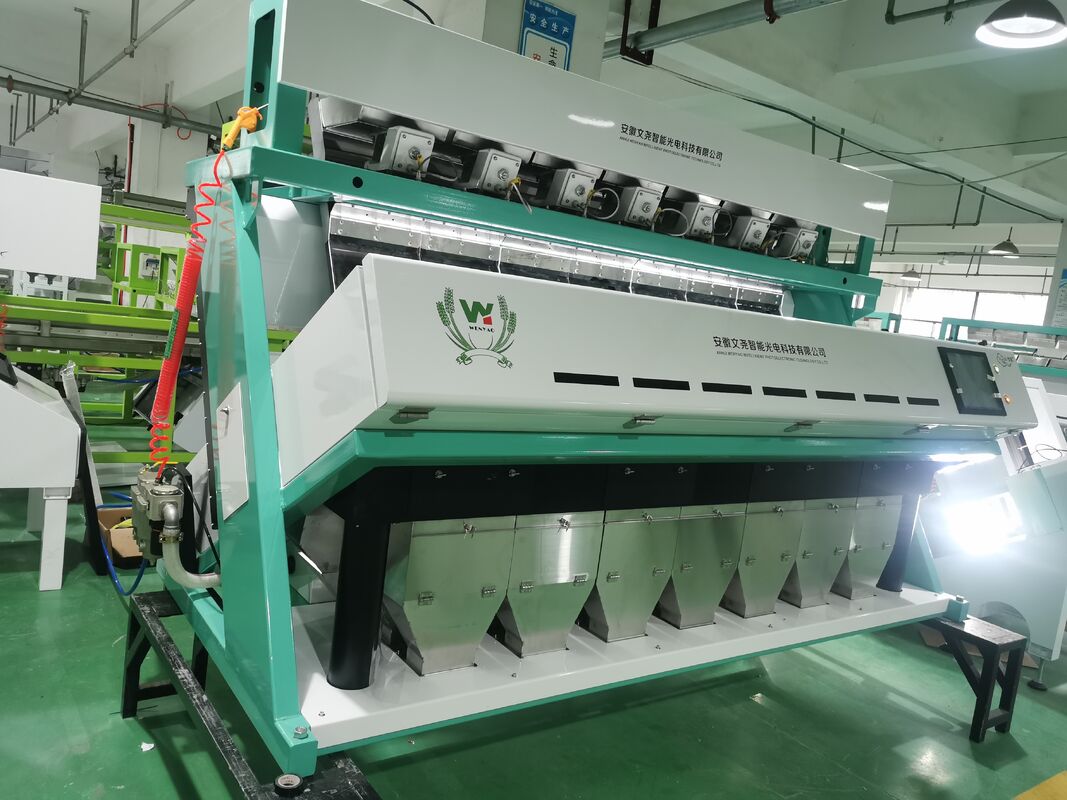

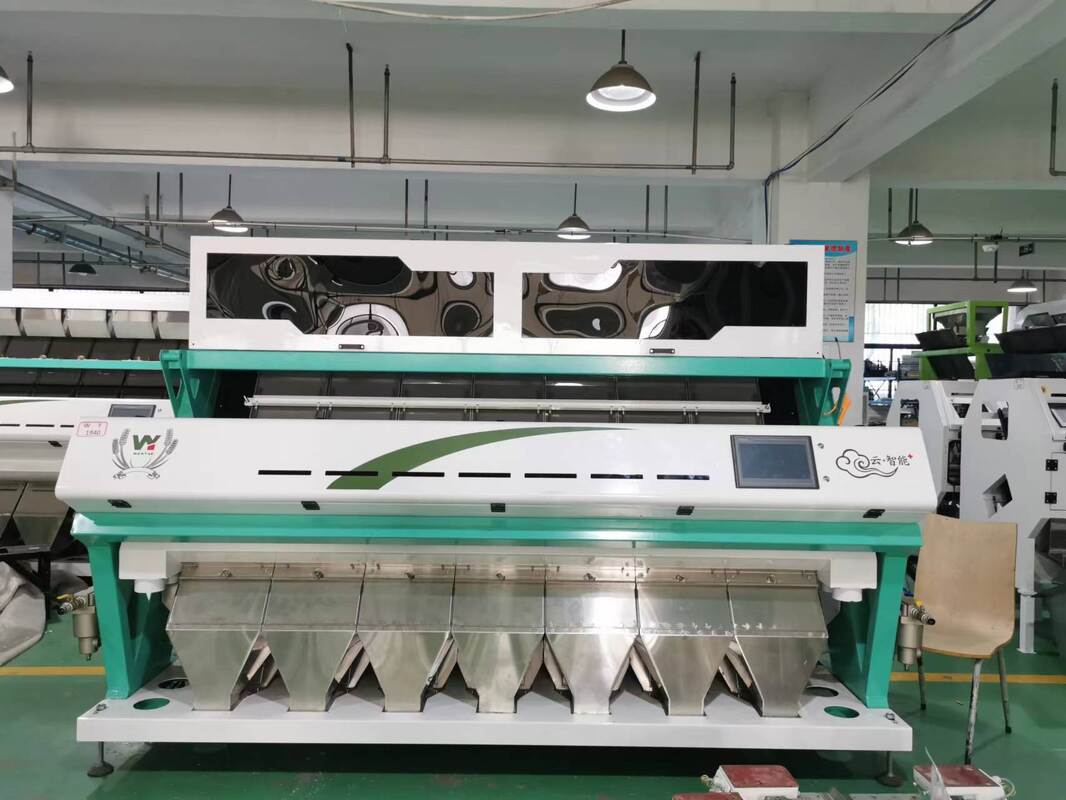

7 chute CCD Grain Nut Bean Cashew Nut Colour Sorter RGB Rice Color Sorting Machine
Color Sorter Technical characteristic :
| MODEL |
WYCS7-448 |
| Chutes(channels) |
7(448) |
| Sorting accuracy(%) |
≥99.9 |
| Carryover rate (bad:good) |
≥30:1 |
| Output(T/h) |
≥2 |
| Voltage |
180-240V/50Hz |
| Power supply(kw) |
3.7 |
| Work Air Pressure(Mpa) |
0.2-0.3 |
| Air consumption(L/min) |
1800-3800 |
| Air supply(Mpa) |
0.6--0.8 |
| Dimension(L*W*H) mm |
2874*1560*1860 |
| Weight(kgs) |
1350 |
| Package |
Plywood case |
| Package Size mm |
3280*1680*2060 |
Our main product is the Intelligent CCD Color Sorter. We have developed dedicated & multi-function machines according to customers different demands. At present we have created about 60 models of chute and belt type machines, which can separate rice, tea, beans, seeds, small shrimps, nuts, grain, plastic, glass, minerals and other materials.
Specialties Rice Color Sorter Machine, Small Rice Color Sorter, Coffee Color Sorter Machine, Plastic Color Sorting Machine, Soybean Color Sorter, Tea Color Sorter, Color Sorting Machine, Grain Color Sorter, Wheat Color Sorter, Kidney Beans Color Sorter, Ccd Color Sorter Machine,
we have great advantages in certain applications, for instance, plastics, green mung beans, red beans, sparkled kidney beans, red kidney beans, white kidney beans, black kidney beans, yellow beans, soy beans, green beans, coffee beans, raisins, seeds, Chinese herbs, dried prawn and shrimps, tuna fishes, and so on.
The Color sorter work principle:
Advantage as below :
1. With Over 14 years experiences.focus on sorter machine.
2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and w.
3.We have service station, cooperate reseller in more than 100 countries.
4.Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
5.Quality process assurance: We pass ISO quality management system, each process of production are under strictly standard.
6.System test: Our technical engineers check the product performance, to ensure that the factory products in full compliance with customer requirements
Examples of color sorting:
From Customer's Site :
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
6.Will you test machine before delivery ?
Yes , we will test carefully before delivey ,and save parameters in the machine
Maintenance :
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.
