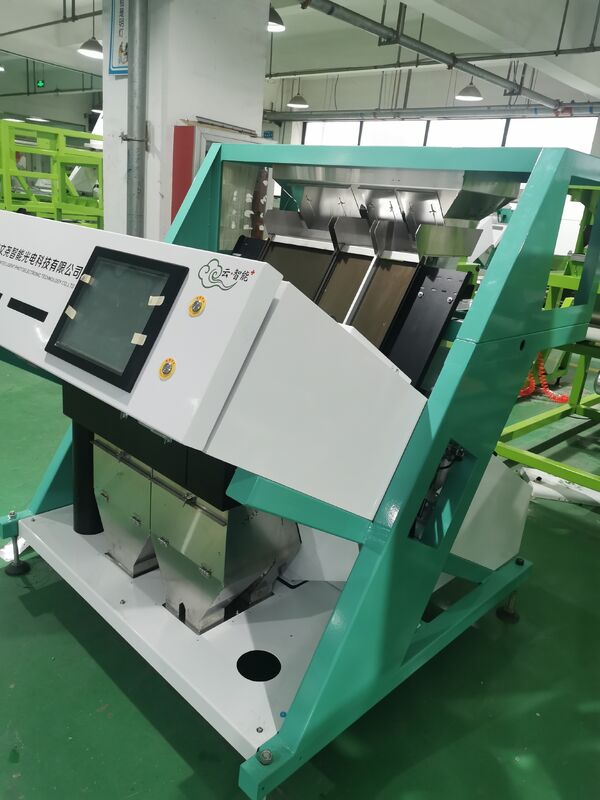

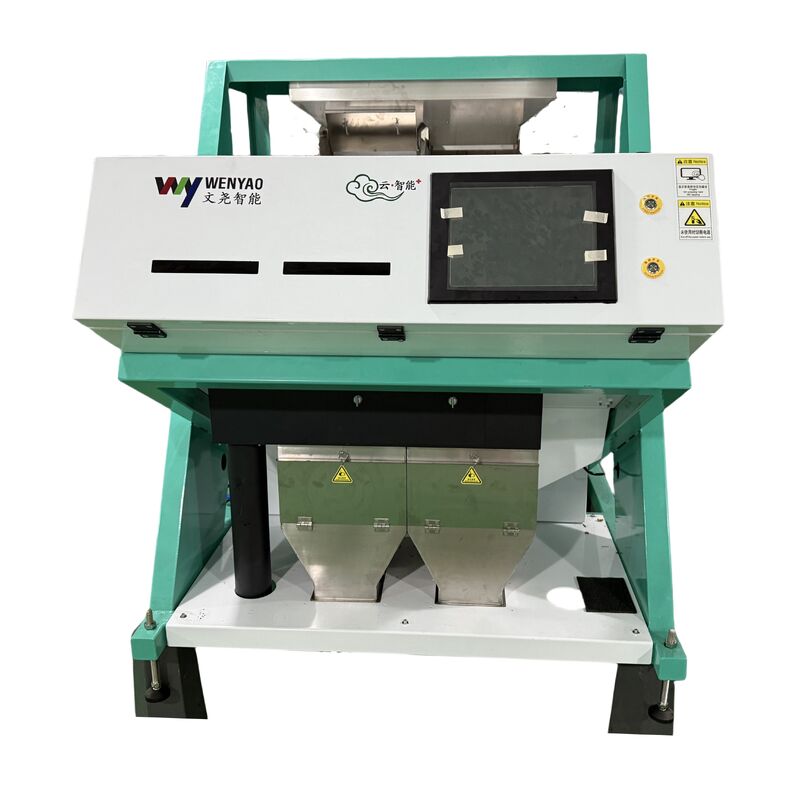

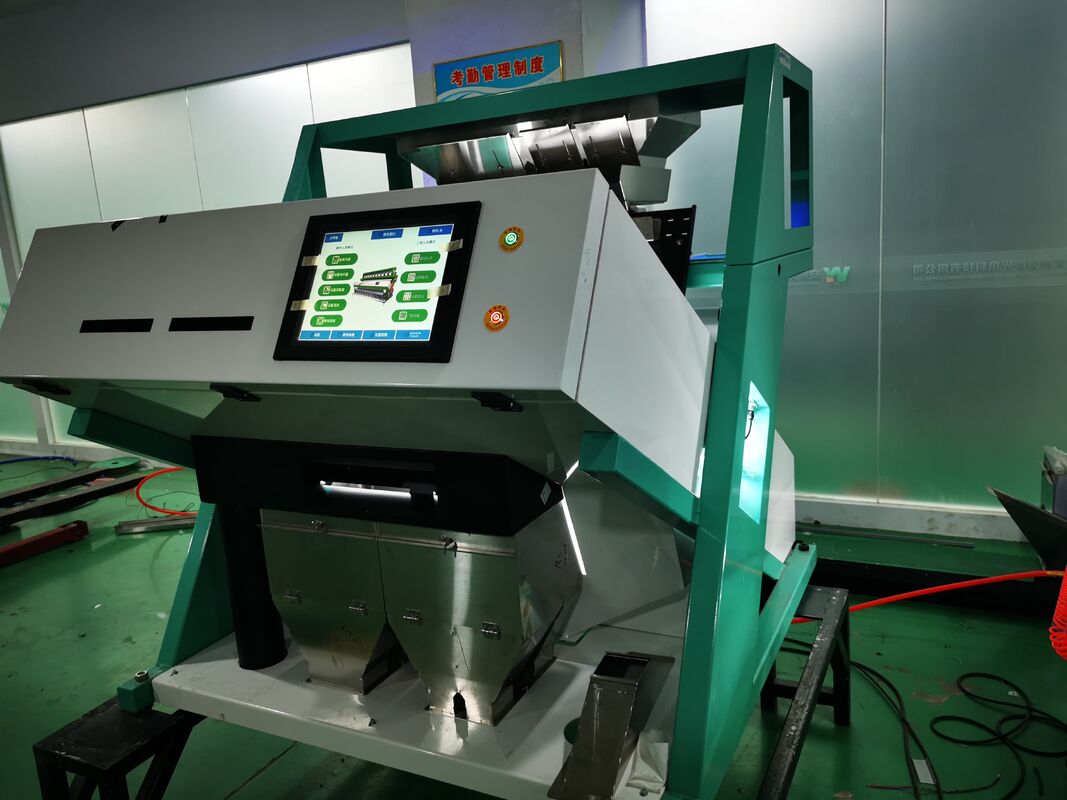

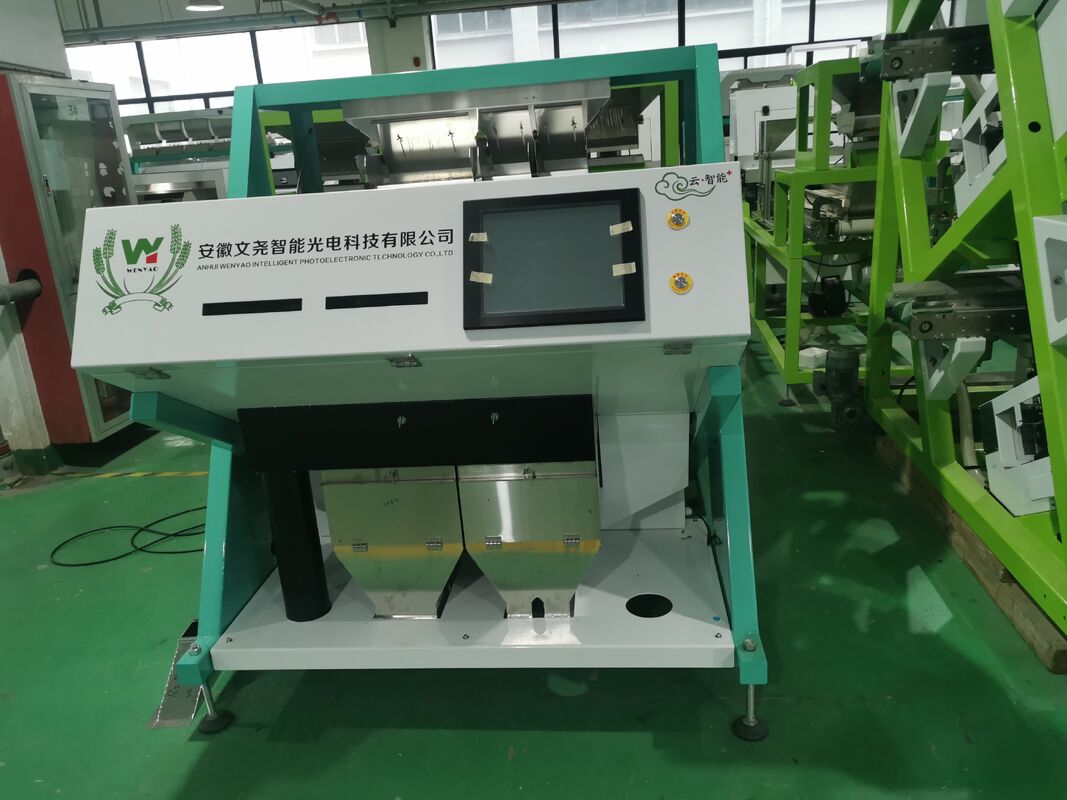

Wenyao Optical CCD Candle Nut Color Sorter Machine Anhui Color Sorter Grain Color Sorter Machine
Candle Nut Color Sorter
Core Function:
An advanced optoelectronic machine that automatically inspects and removes discolored, defective, or foreign material from candle nuts (kemiri nuts) based on color differences.
Key Components & Working Principle:
1. Feeding System: Vibratory feeder or chute evenly disperses nuts into a single file.
2. Optical System: High-resolution color CCD/CMOS cameras capture detailed images of each nut.
3. Lighting System: Precise, consistent LED illumination ensures accurate color detection.
4. Processing Unit: A powerful computer with image processing software analyzes each nut's color, shape, and surface against preset acceptance thresholds.
5. Ejection System: High-speed pneumatic (air jet) nozzles instantly remove substandard nuts identified by the system.
6. Collection: Separated into "Good Product" and "Defective/Reject" streams.
Sorted Defects:
· Discolored Nuts: Moldy, fermented, or excessively dark kernels.
· Foreign Materials: Stones, shells, husk fragments, or other crop seeds.
· Surface Defects: Stains, blemishes, or nuts with damaged/rotted areas.
· Immature Nuts: Nuts with significantly different color profiles.
Technical Advantages:
· High Speed & Accuracy: Processes thousands of nuts per hour with minimal error.
· Consistency: Eliminates human fatigue and subjectivity for stable quality.
· Hygiene & Safety: Non-contact, dry process reduces contamination risk.
· Customizability: Sorting criteria (sensitivity, color thresholds) are easily adjustable via a user interface.
· Efficiency: Reduces labor costs, increases yield, and enhances final product quality and value.
Application: Essential in candle nut processing lines for cleaning, grading, and ensuring uniform, high-quality export-grade or packaging-grade kernels.
.
Example in a Senten
ce:
"The food processing plant installed a state-of-the-art color sorter to automatically remove all burnt and discolored coffee beans, significantly improving the quality and value of their final product."
PARTS DETAILS:
Technical Parameters:
| MODEL |
WYCS2-128 |
| Chutes/Channels |
2/128 |
| Throughput(t/h) |
2-3t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
1.1kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<1.2M3/Min |
| Weight |
450kg |
| Diamension(L*W*H) |
1250*1535*1832mm |
Examples of color sorting:
Latest UHD imaging and analysis technology,high-speed processing,accurate identification
*High level AI self-learning function,one-key automation,user friendly interface,easy operation
*Multi-function,multi-purpose,widely used for rice ,cereal,plastic,chinese medicine
*High and specification ensures high stability,with high sorting accuracy,small carry over and low energy
*Small and portable,saving space and delivery cost,small machine but super function
*Imported ejectors,much smaller air consumption,and much better carry over,esp.good for small materials like quinoa,chia,sesame....
*Option:Remote control by smart terminals like cellphone ,can realize the off-site controls of the accuracy,production capacity and halt of the machines
*Simple Effective-installation&Start-up&Commissioning services;remote teaching and guidance via live video online through internet to worldwide
.
