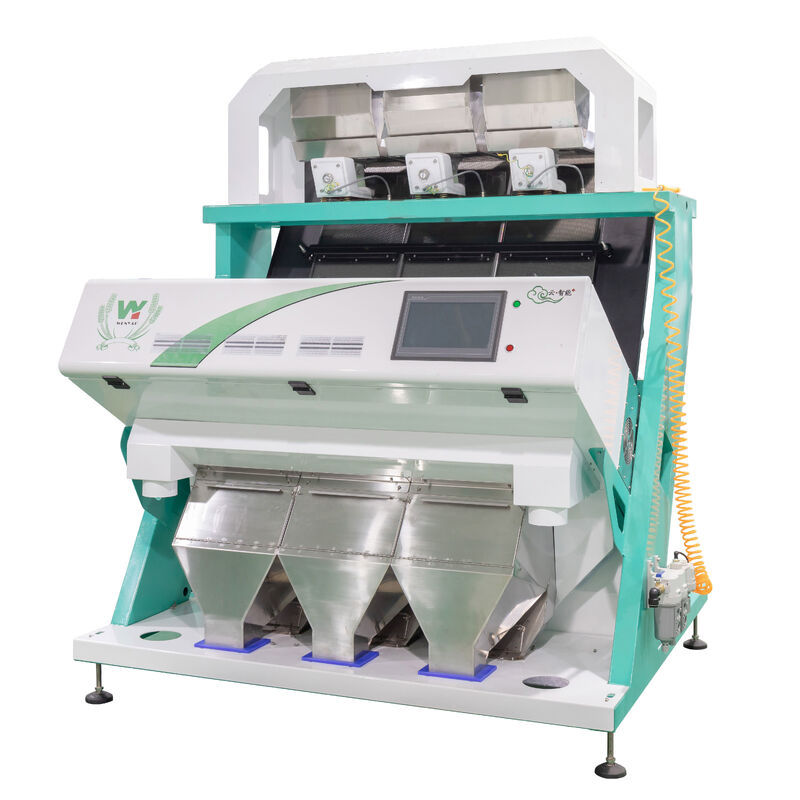

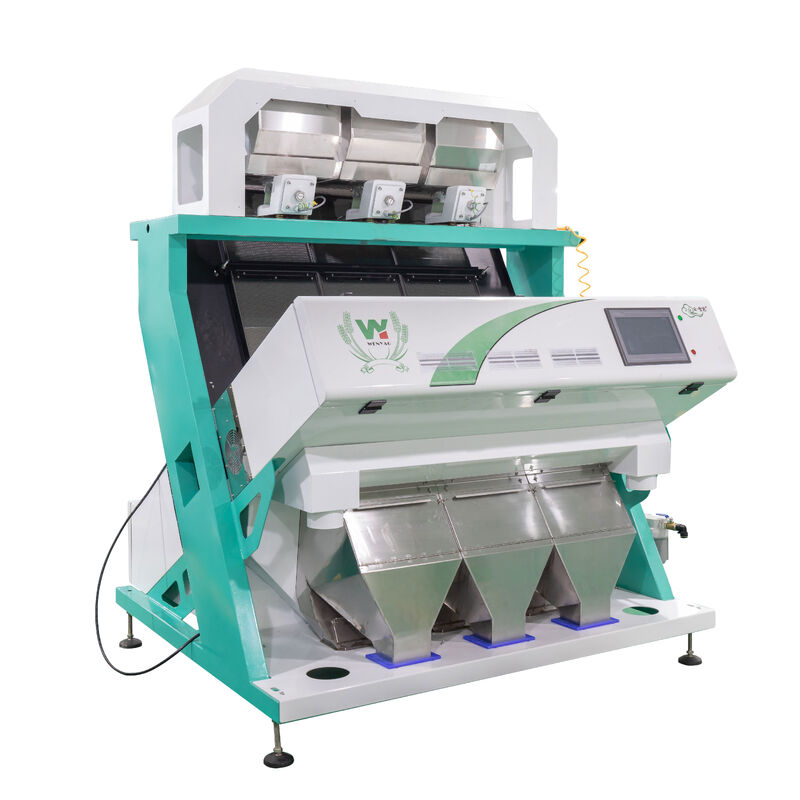

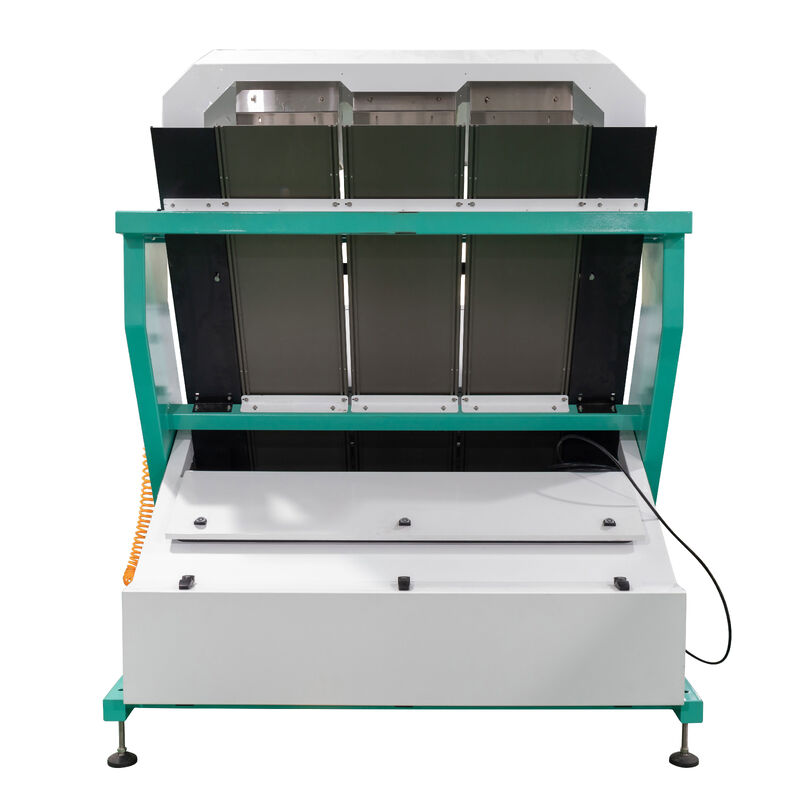

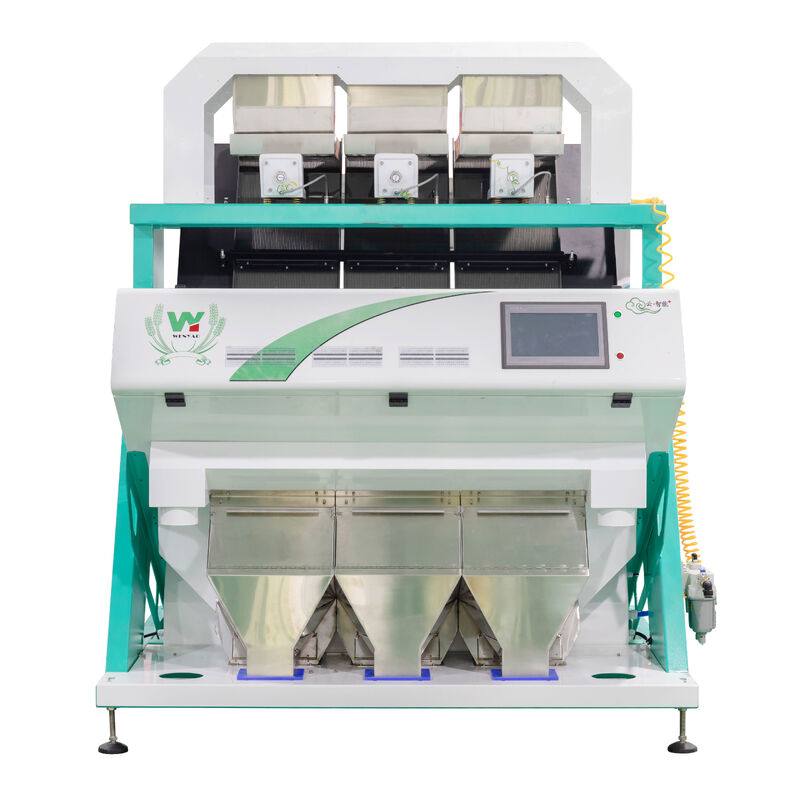

Wenyao AI High Precision Multi Function Color Sorter Machine for Sesame Flax Seed Color Sorting Separating Shape Sorter
Technical Parameters:
| MODEL |
WYCS3-192 |
| Chutes/Channels |
3-192 |
| Throughput(t/h) |
500 kg /H |
| Sorting Aaccuracy |
≥99.99% |
| Power |
1600w |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
800-1800 L/Min |
| Weight |
600kg |
| Dimension(L*W*H) |
1620*1535*1832mm |
This flax seed color sorter is specially designed to separate good flax seeds from discolored seeds, shriveled kernels, moldy grains, foreign impurities and different-color particles. It greatly improves flax seed purity and finished product quality, suitable for small and medium processing plants.
Flax Seed Color Sorter
Our flax seed color sorter adopts high‑precision optical sensors and intelligent image processing algorithm, which can accurately identify tiny color differences of flax seeds.
It efficiently sorts raw flax materials, removing black, brown, spotted, moldy, shriveled, immature flax seeds, as well as stones, dust, straw, other grain impurities and heterochromatic particles.
Key Features
1. High sorting accuracy for small-size flax seeds, low carryover rate, high yield of good material
2. Intelligent self-learning function, easy to adjust sorting parameters according to raw material condition
3. Stable ejector valve, low air consumption, energy saving
4. Friendly touch screen operation, simple parameter setting, convenient maintenance
5. Compact structure, wide adaptability, can be matched with upstream cleaning, de-stoning and packaging equipment
Application
Widely used in flaxseed processing, oil pressing raw material pretreatment, health food raw material production, grain & nut processing industry. It helps increase product grade and commercial value of finished flax seeds.
Advantage :
- Professional model for flax seed sorting
- Detect slight discoloration, mold spot and blemish on flax seed surface
- High good‑product rate, reduce waste
- Stable performance, long service life
- Easy operation and low maintenance cost
Examples of color sorting:
Feature:
· High level AI self-learning function,one-key automation,user friendly interface,easy operation
· Multi-function,multi-purpose,widely used for coffee bean,rice,grain ,walnuts,almond,plastic,chinese herbals etc.
· Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
· Latest UHD imaging and analysis technology,high-speed processing,accurate identification.
· High end specification ensures high stability with high sorting accuracy, small carry over and low energy consumption.
The system operates on the following principle:
1. Feeding & Alignment: Bulk pepper seeds are elevated and fed onto a vibrating chute or belt, which spreads them into a single, uniform layer to ensure each seed can be individually inspected.
2. Optical Scanning: The aligned seeds free-fall past a high-resolution, high-speed optical scanning chamber. This chamber is equipped with:
· Full-Spectrum LED Lights: Provide consistent, glare-free illumination to highlight color differences.
· Advanced CCD/CMOS Cameras: Capture detailed images of each seed from multiple angles.
3. Real-Time Data Processing: A sophisticated computer processing unit analyzes the captured images in milliseconds. It compares the color, shape, and sometimes spectral characteristics of each seed against user-defined acceptance parameters. Seeds that are discolored, moldy, immature, or mechanically damaged are identified as rejects.
4. Precision Ejection: Upon identification, the system sends a signal to an array of high-speed, solenoid-controlled air jets. These jets emit a precise puff of compressed air to knock the defective seed out of the product stream without physically touching it.
5. Separation & Collection: The ejected defective seeds are diverted into a reject channel, while the accepted, high-quality pepper seeds continue their natural trajectory into the "good product" collection hopper.
-
- Customer's Site :
- Package :
-
- Fair :
- Why choose us :
✅ Professional grain sorting solution for flax seed
We have rich experience in flax seed color sorting. We fully understand the characteristics of small flax kernels, mold spots and heterochromatic impurities, so we can provide you with a well‑matched sorting scheme instead of a general universal machine.
✅ Higher finished product yield, save your cost
Our machine achieves high sorting precision while keeping low good‑material carryover. Less qualified flax seeds will be wasted into reject material, maximizing your finished output and improving economic benefits.
✅ Reliable hardware & stable long‑term operation
High‑speed ejectors, high‑definition optical sensors and mature control system ensure continuous running for your production line. Low failure rate and less downtime.
✅ Easy to operate & flexible adjustment
Intelligent touch screen with self‑learning algorithm. You can quickly set parameters when raw material quality changes. Workers can master operation in a short training time.
✅ Complete after‑sales service
We provide installation guidance, operation training, remote technical support and spare parts supply. Whenever you meet problems during production, our technical team is ready to offer support.- Contact
