Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us
Mineral Sorting Machine Mineral Color Sorter Machine For Sorting Quartz Stone
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
| Main Parts | Parameters/ brand | Parts Advantage |
| Channels | 64*4=256 | 1.High quality aluminum alloy 2.Anodic oxidation 3.Surface polishing treatment 4.Material Slipping steadily 5.wear-resisting,wearproof 6.The service life is long. |
| Pixel of camera | 5400 | 1.High accuracy 5400 pixels 2.High perfomance with high resolution.warranty:2 years |
| CCD sensor | Toshiba | High Sensitivity and resolution warranty:2 years |
| light source | LED Lamps | 1.Luminous evenly 2.The service life is long 3.The light is not weak for long time |
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen | touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper | 304 stainless steel | 1.rust protection 2.wear-resisting,wearproof |
| Package | Plywood Case | 1.Stable structure no deformation 2.Easy to transport |
Color Sorting materials
1. Rice: white rice, parbouled rice, yellow rice, brown rice, barley rice
2. Beans: soybeans, mung beans, red beans, coffee beans
3. Nuts: peanuts, cashew nut, walnut meat,pine nuts
4. vegetables: dry onion,daylily,back fungus
5. Seeds: vegetable seeds, cumin seeds,prickly ash seeds
6. Industrial:plastic, broken glass,quaze,ore,scrap metal
Features :
Customized Lighting System
import purchasing
Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.
Data Transmission System
high-speed and stable
The COAX interface:
High anti-jamming, high transmission speed, high stability
Chip
innovative ultra high-speed processing
Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.
Crawler Transmission:transmission structure
The crawler-type transmission structure shows good performance in color sorting, and the stable material transmission can effectively improve the ratio of color separation mass and the net selection rate, meanwhile reducing the crushing rate of material in the course of color sorting.
Sorting Effect:
Our Service:
Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
1. The color sorter uses 5000+ pixels high performances CCD sensors with resolution up 0.1mm.
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting.
3. The high speed FPGA technology signal processor with fast detection and high identification rate.
4. Master control system adopts ARM9 embedded processor, and effectively enhances and control
speed and color selection precision.
5.Overall unit adopts intelligent closed-loop control.
6.The operation interface adopts industrial grade 10 inch capacitive touch screen and features simple parameters
setting and esay operation.
7.High speed air value is used to ensure quick response, low power consumption and long service life.
8.Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
9. Failure alarm automation and modular construction makes easy repair.

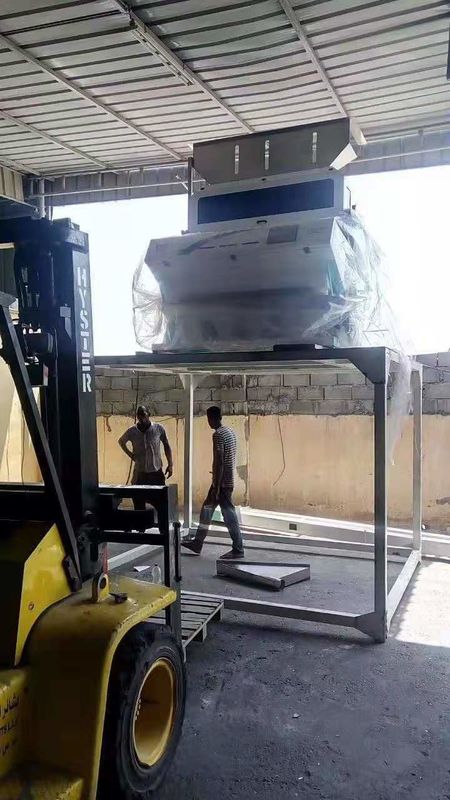

Customer's Site :
Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
