Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS6-384
Contact Us

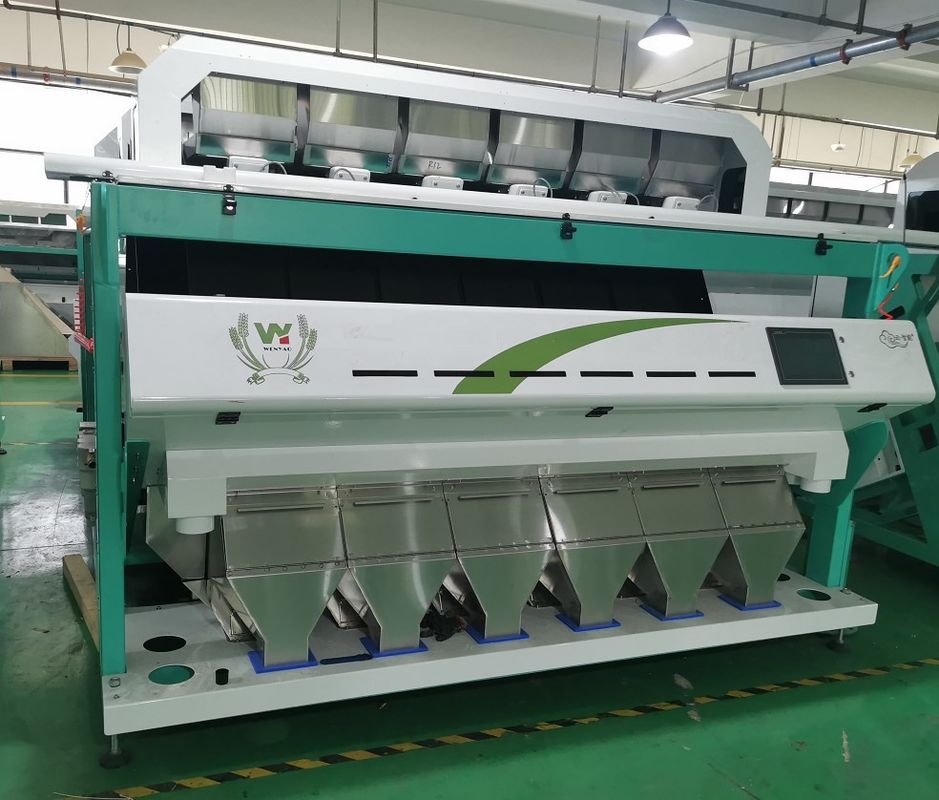

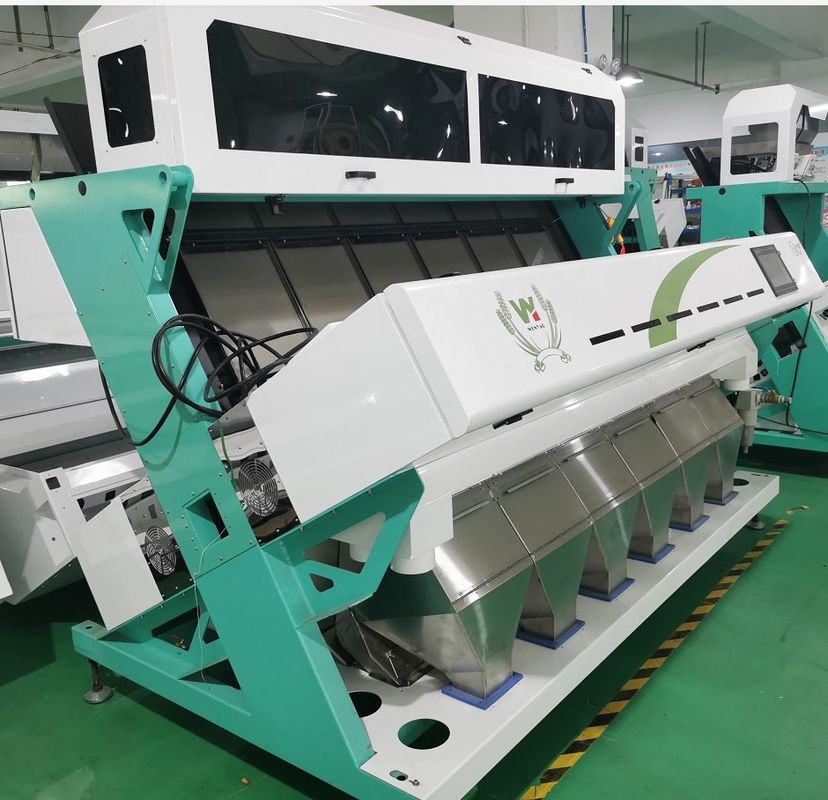

Latest Technology Pebble Stone Color Sorting Machinery Sorter Machine Mineral Sorting Machine
Parameters as below:
| MODEL | WYCS6-384 |
| Chutes(channels) | 6(384) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥12:1 |
| Output(T/h) | ≥4 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.1 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1500-3200 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2595*1540*1852 |
| Weight(kgs) | 1100 |
| Package | Plywood case |
| Package Size mm | 2645*1590*1902 |
| Channels | 64*6=384 | 1.High quality aluminum alloy 2.Anodic oxidation 3.Surface polishing treatment 4.Material Slipping steadily 5.wear-resisting,wearproof 6.The service life is long. |
| Pixel of camera | 5400 | 1.High accuracy 5400 pixels 2.High perfomance with high resolution.warranty:2 years |
| CCD sensor | Toshiba | High Sensitivity and resolution warranty:2 years |
| Light source | LED Lamps |
1.Luminous evenly 2.The service life is long 3.The light is not weak for long time
|
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen | Touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper | 304 stainless steel | 1.Rust protection 2.Wear-resisting,wearproof |
| Package | Plywood case | 1.Stable structure no deformation 2.Easy to transport |
Color sorter work principle:
Working principle CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
From Customer's Site :
Questions :
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C ,T/T is OK .
Alibaba Trade Assurance is your best choice.
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
