Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS2-128
Contact Us
Product Description:

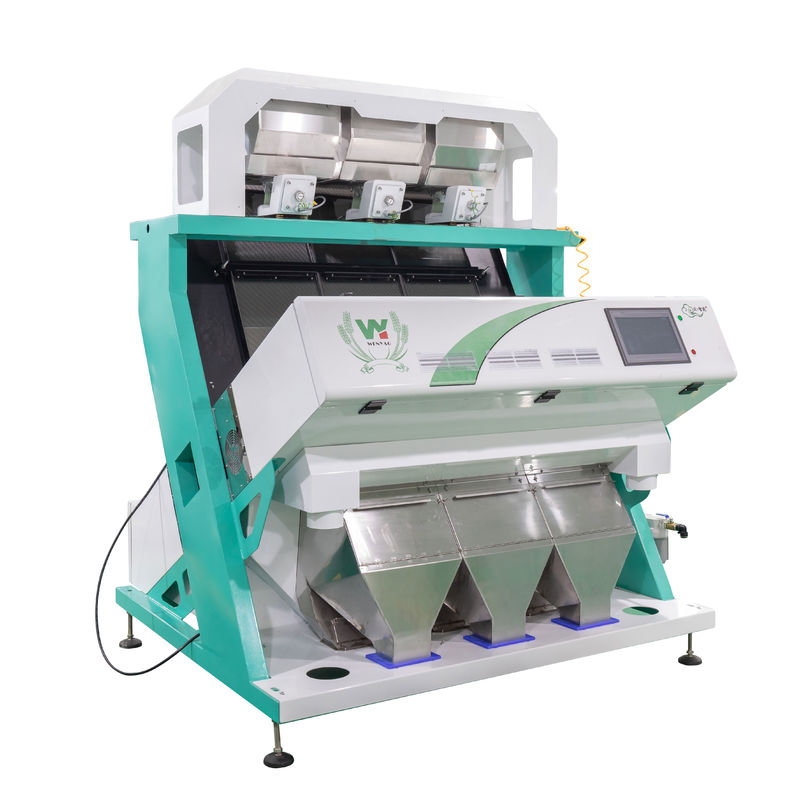

Machine name:Colour Sorter Optical Glass Flake Automatic Color Sorting Machine
Function : Remove unqualified Industrial materials automatically
Working Principle: Optical principle, with latest CCD camera,LED light
Models: Different channel (size) machines available for choosing,depands on the required capacity.
Main features:
1. Excellent sorting persormance: Advanced image acquisition system + intelligent image processing algorithm + high quality ejection system=excellent output and rejection;
2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5340 pixel CCD high speed linear scan imaging sensor also first-class tailored camera lens for colorsorting with a precision identifying tiny defects till 0.01m2;
3.Super ease operation system: Simple optical system design and accurate in time auto calibration system plus simplified GUI design help reduce complicacies of machine commissioning and running, easy operation and maintenance secured;
4. Customized image processing algorithm: Intelligence algorithm integrating image color difference and defect size difference;
5. Long-life software upgrading for free;
6. OEM service welcomed.
How to get the correct size and price for wenyao color sorting machine?
Please contact us according to the following questions if you need color sorter prices:
What kinds of the material are you planning to sort processing?
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Technical Parameters:
| MODEL | WYCS2-128 |
| Chutes/Channels | 2/128 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.1kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <1.2M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 1250*1535*1832mm |
Examples of color sorting:
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock
A:Yes, Professional after-sales engineer is available to end-user's site for training & machine installation .
Sample material for testing use is welcome. a working video will be offered for sorting result inspection.
Packing & Delivery
Send your inquiry directly to us
