Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
ISO9001
Model Number:
WYDB4
Contact Us
Video

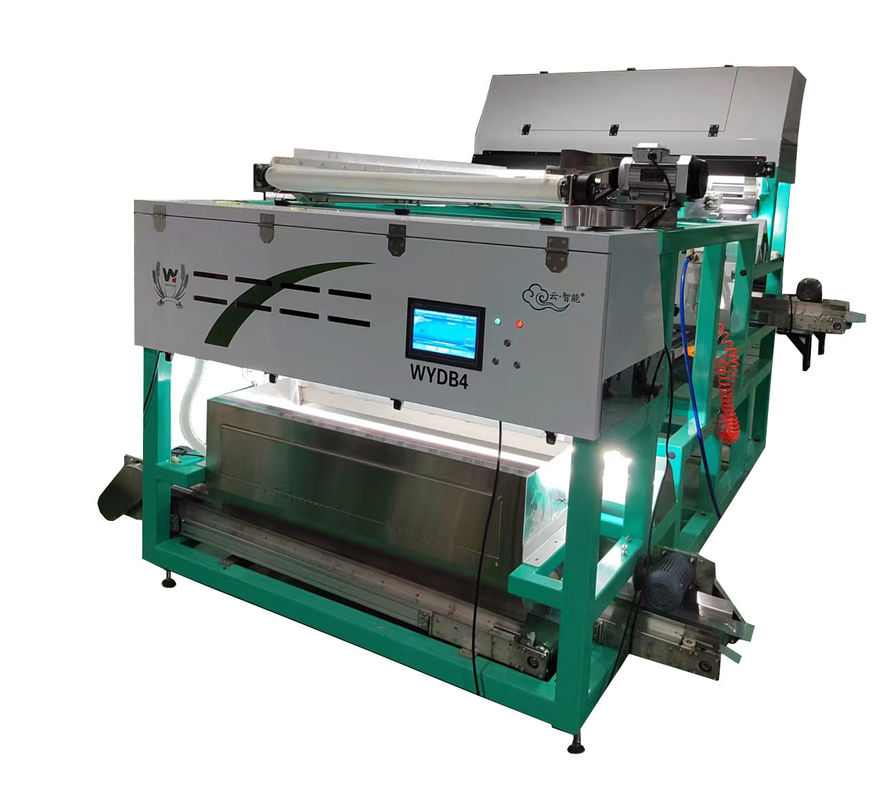

New Arrival WENYAO WYDB4 Electric Glass Sorting Machine CCD Optical Amber Glass Color Separator For Glass Color Sorting
1. Amber Glass Color Sorting Machine Working Flow and Working Principle
Raw materials are put into the machine from in-feed hopper on the top, vibrated by vibrating plate and sliding along material belt into the zone of observation in sorting chamber through sensors and background plate. Under the effect of Light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject hopper and good materials continue to fall into the finished accept hopper
2. Technical Parameters:
| MODEL | WYDB4 |
| Chutes/Channels | 8/512 |
| Throughput(kg/h) | 3000kg/h-4000kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.5kw |
| Power Voltage | 240V/50Hz or Customized |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 1500kg-2210kg |
| Diamension(L*W*H) | 2750*2100*2500mm |
3. CCD RGB Digital Optical Electric Glass Color Sorter Machine Core Parts:
1. Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2. America FPGA processing chip.
3. Japan Toshiba CCD sensor.
4. Metal ejectors/valves with more than one billion lifetime
5. Lens:Japan Nikon Lens .
6. Filter: Japan CKD filter
7. Power source:Taiwan Meanwell
8. All LED light source,more longer lifetime and save power
9. Flexem Humanized touch screen
10. WIFI remote control system,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service
4. Examples of Color Sorting Examples
5. FAQ
1). How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2). How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3). Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor,
air tank and filters.
4). what about the after sales service?
We have installed wifi remote control in machine

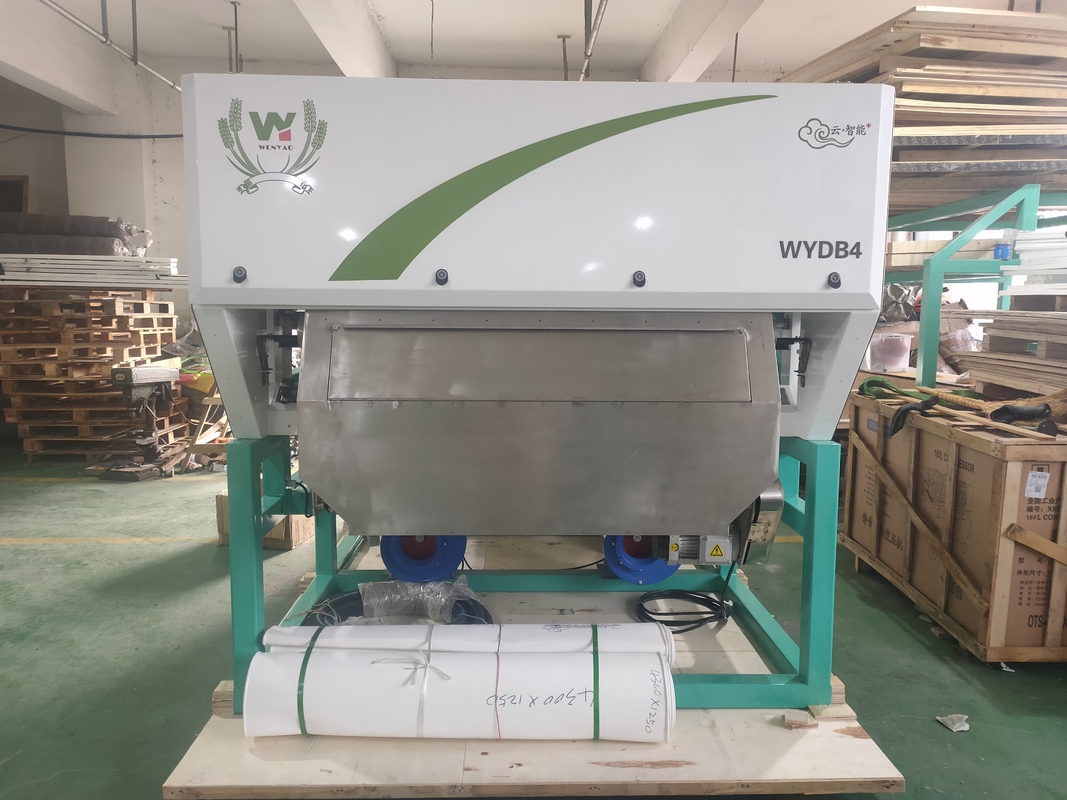

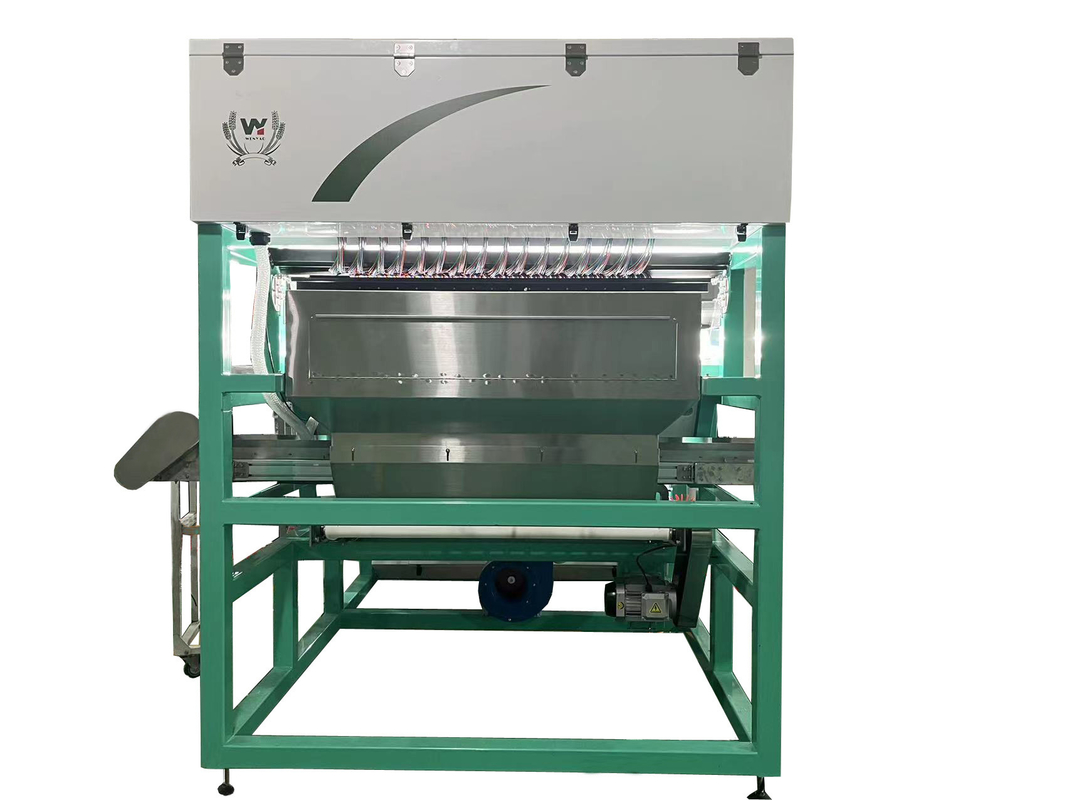

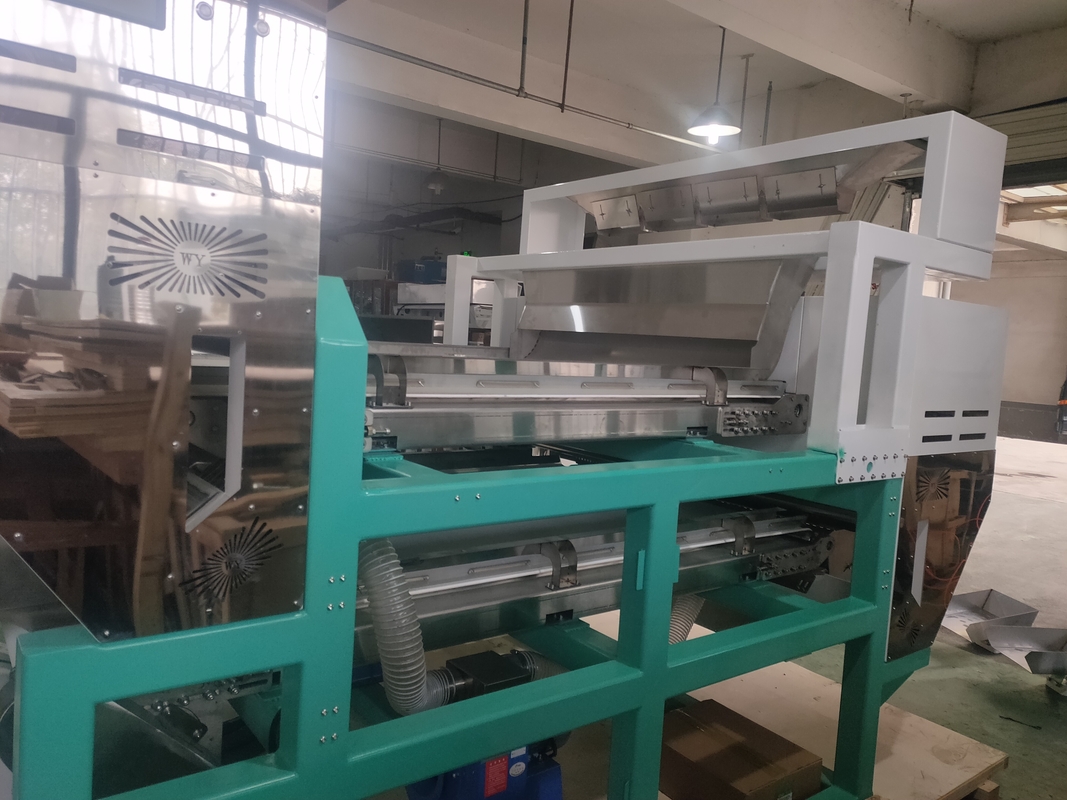

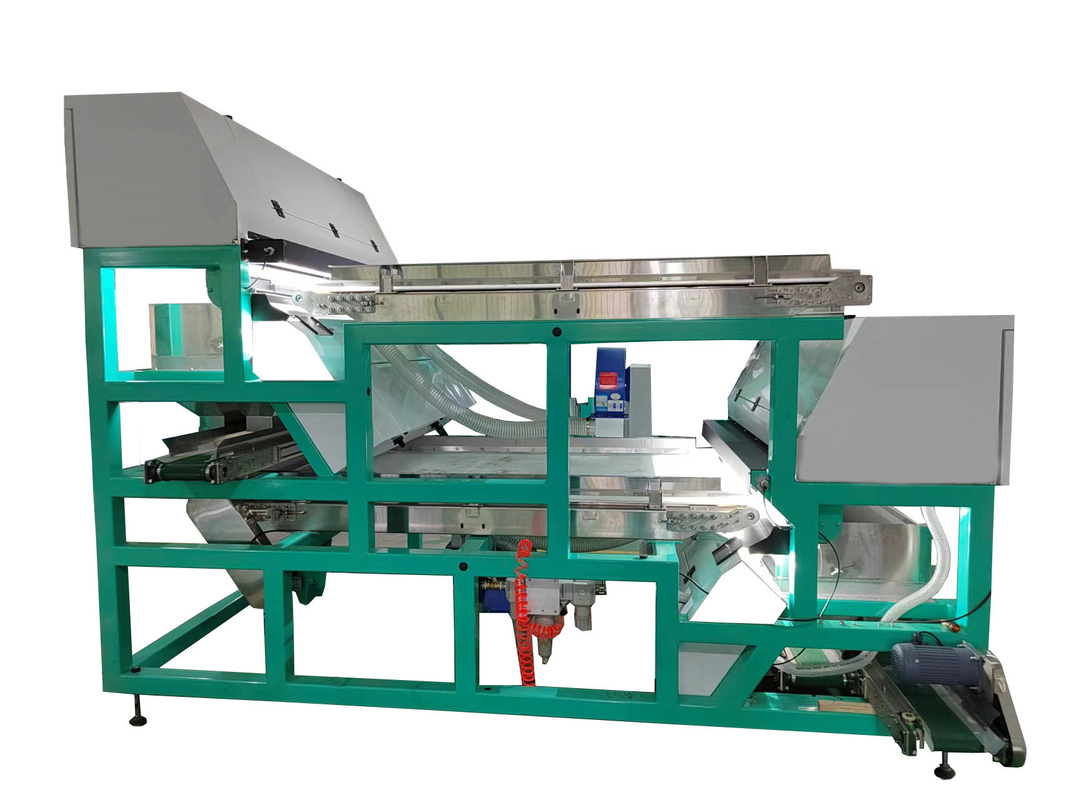

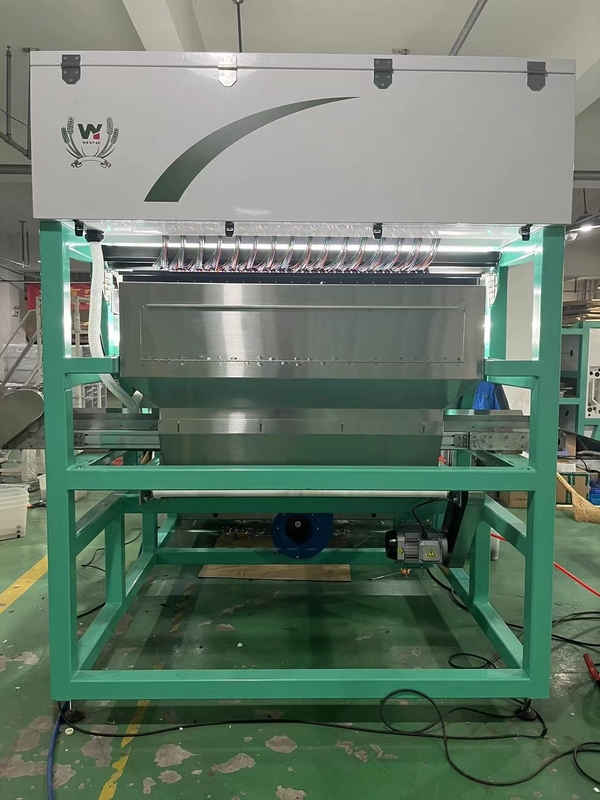

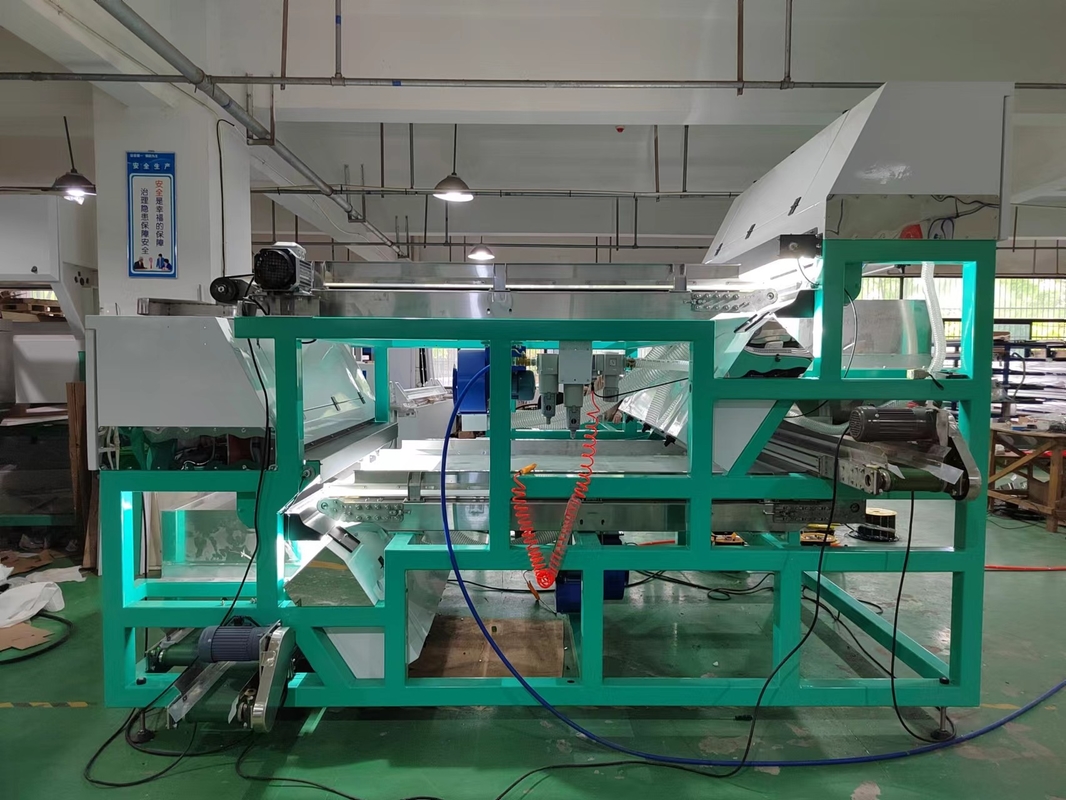

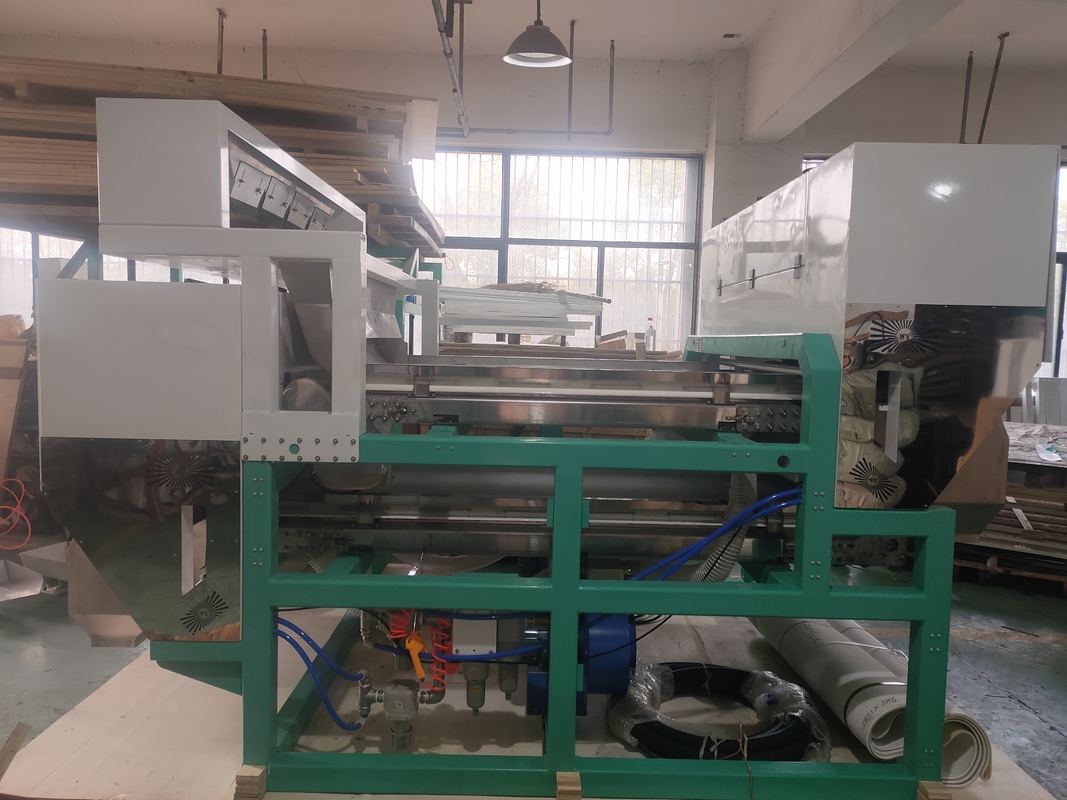

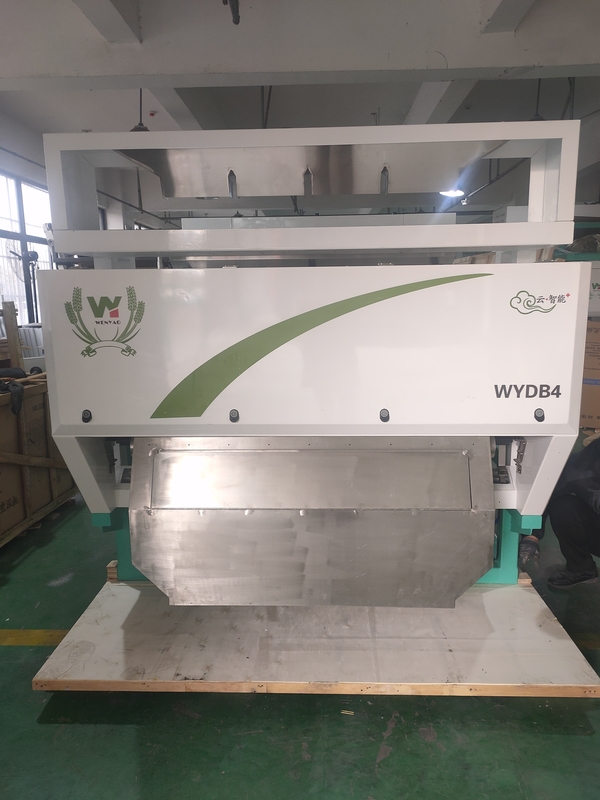

6. Real Photo of WYDB4
7. Our Service:
Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service,
so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and
something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide
lifelong software upgrade services for our customers for free.
8. Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
